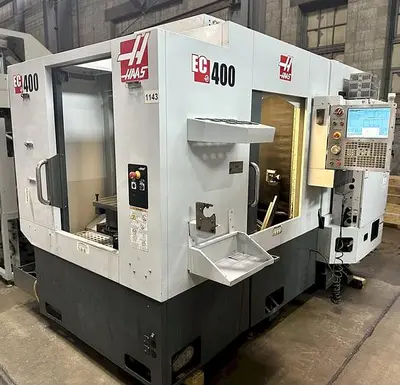

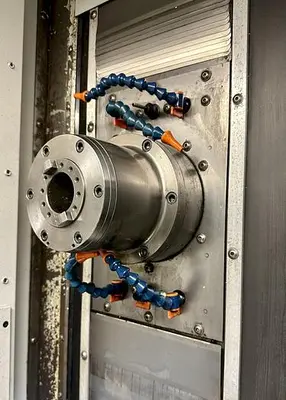

USED HASS EC-400 CNC HORIZONTAL MACHINING CENTER

HASS EC-400 CNC HORIZONTAL MACHINING CENTER
YEAR 2011
STOCK # 104138

SPECIFCATIONS TO BE VERIFIED BY BUYER
===============================================================
Specifications
CNC Control Haas CNC Control
# Axis 4
Number of Pallets 2
Pallet Dimensions 15.75" x 15.75"
Maximum Pallet Load 1,000 LBS
B-Axis (Pallet Indexing) 0.001°
X-Axis (Longitudinal Table Travel) 20"
Y-Axis (Vertical Travel) 20"
Z-Axis (Spindle Travel) 20"
Spindle Nose to Pallet Center Minimum 3.9"
Spindle Nose to Pallet Center Maximum 23.9"
Feed Rate, All Axes 500 IPM
Rapid Traverse Rate, All Axes 1,000 IPM
Spindle Horsepower 20 HP
Spindle Taper CAT 40
Spindle Speed Range 0 - 8,100 RPM
Coolant Through Spindle yes
Automatic Tool Changer Capacity (ATC) 24
Automatic Tool Changer Style Side-Mount
Electrics 220/3/60
Approximate Machine Dimensions 140" x 97"
Approximate Machine Height 102"
Approximate Machine Weight 22,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition!

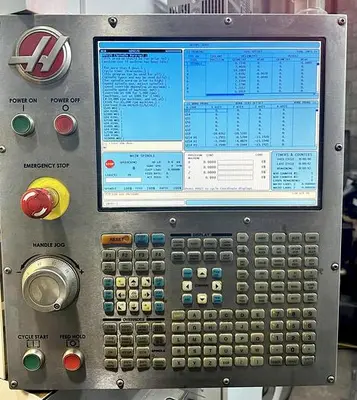

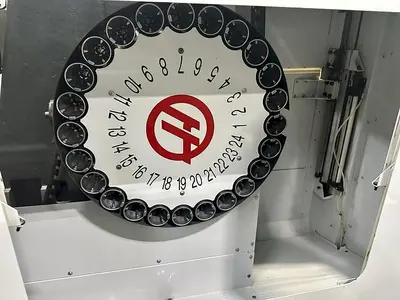

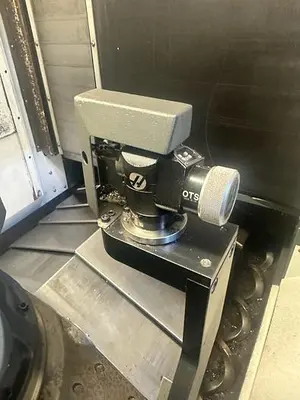

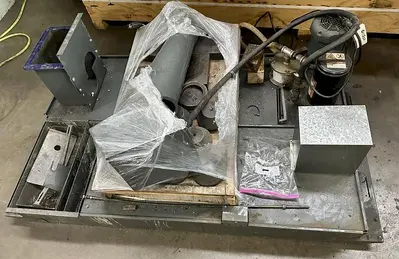

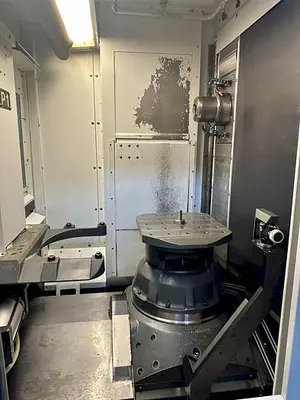

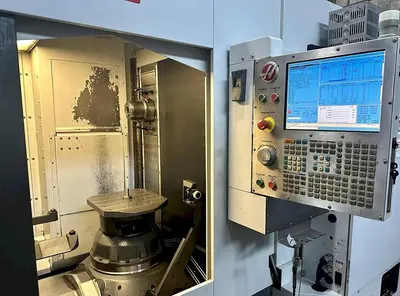

Haas CNC Control, (2) 15.75" x 15.75" Full Contouring Pallet w/Pallet-Shuttle, 8100 Max Spindle RPM, Thru the Spindle Coolant, 24 Position Automatic Tool Changer, WIPS-R, Renishaw Probe Receiver, Haas Touch Setter, Control Options (EPFDM, Home, RJH-C, Rtap-3), 80 Gallon Coolant System.
