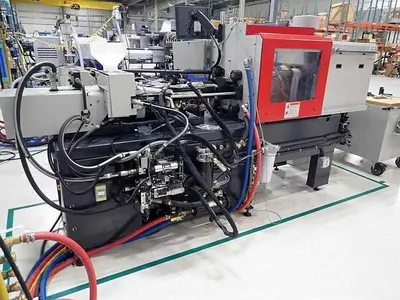

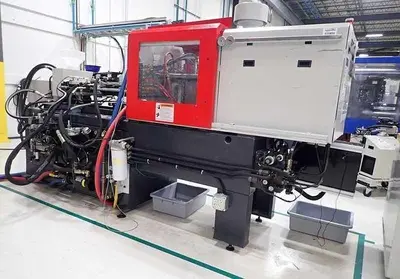

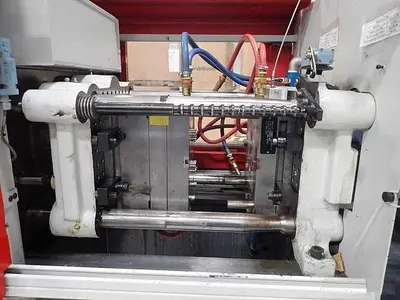

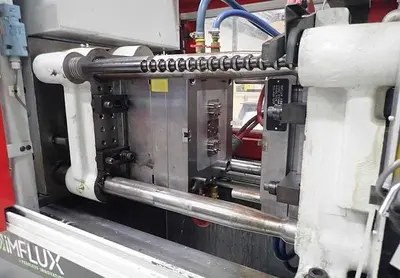

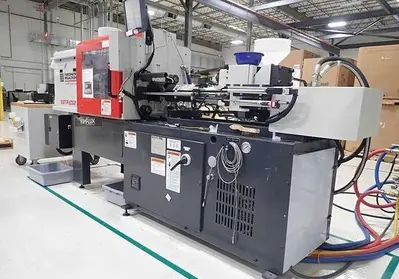

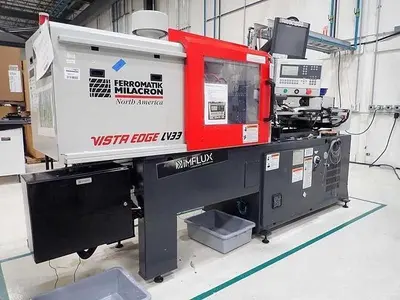

USED FERROMATIK MILACRON VISTA EDGE LV33 INJECTION MOLDER
Overview
FERROMATIK MILACRON VISTA EDGE LV33 INJECTION MOLDER
YEAR 2001
STOCK # 104136
SPECIFICATIONS TO BE VERIFIED BUY BUYER
============================================================================
Type of CNC Control Vista Edge Panelware Control
Horz/VerthorizontalClamp Force 294 kN | 33 Tons
Mold Opening Stroke 350mm
Max/Min Mold Height 11.811" / 7.874"
Max Daylight Between Platens 550mm
Overall Size of Platens 340mm x 380mm
Distance Between Tie Bars 280mm x 254mm
Ejector Stroke 80mm
Ejector Force 17.6 kN
Retraction Force 17.6 kN
Screw Diameter 18mm
Max Injection Plastic Pressure 2,704 bar
Cylinder Head Volume 31 cc
Max Shot Weight in PS 29 g
Rate of Injection PS 34.2 g/s
Screw Stroke 120mm
Electrics 230/3/60
Approximate Machine Dimensions 144" x 36"
Approximate Machine Height 72"
Approximate Machine Weight 5,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
WWW.HARBORMACHINERY.COM
231-526-9525
