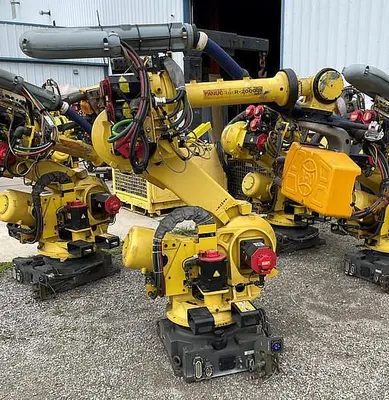

USED 2010 FANUC R2000IB/165F WITH R30IA CONTROLS

25-FANUC R-2000iB/165F 6 AXIS ROBOT WITH R-30iA CONTROLLER
DATE OF MFG. 2009/10
STK#104074
=======================================
The Fanuc R-2000iB/165F is a heavy payload robot that is a perfect addition to the factory floor for. Great for material handling, spot welding, dispensing, and many more applications. This is also a great robot to work in small spaces as it has a slim arm and wrist assemblies. Integration is also made easier with its numerous process attachment points. You can also expect higher up-time, overall productivity, and greater through put with the R-2000iB/165F on your production line. The Fanuc R-2000iB/165F Runs on the Fanuc R30iA Controller or Fanuc R30iB Controller depending on date of manufacture.

Robot Specifications:
Axes: 6
Payload: 165kg
H-Reach: 2655mm
Repeatability: ±0.2mm
Robot Mass: 1170kg
Structure: Articulated
Mounting: Floor

Robot Motion Speed:
J1 110 °/s (1.92 rad/s)
J2 110 °/s (1.92 rad/s)
J3 110 °/s (1.92 rad/s)
J4 150 °/s (2.62 rad/s)
J5 150 °/s (2.62 rad/s)
J6 220 °/s (3.84 rad/s)

Robot Motion Range:
J1 ±180°
J2 +75° - 60°
J3 +230° - 132°
J4 ±360°
J5 ±125°
J6 ±360°

Applications:
Spot Welding Robots
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Assembly Robots
Cutting Robots
Fiberglass Cutting Robots
Foundry Robots

EQUIPPED WITH:
FANUC R-30iA ROBOT CONTROLLER
FANUC ROBOT CONNECTION CABLES
FANUC COLOR TEACH PENDANT
FANUC 7TH AXIS DRIVE
FANUC MODEL A IO
