FANUC FANUC ARC MATE 120iB MIG WELDING CELL WITH LINCOLN 455M AND INDEX TABLE 5' X 8' RJ3iB CONTROL
Overview
USED FANUC ARC MATE 120iB MIG WELDING CELL WITH 5' X 8' INDEX TABLE
ROBOT SERIAL NUMBER F76447
DATE OF MFG. 01/2006
STK#104057
==========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

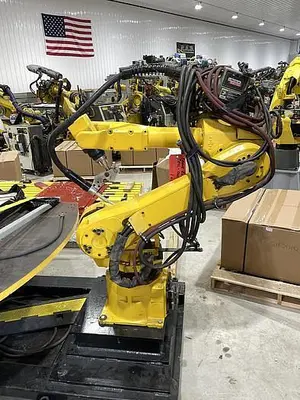

Suitable for high-speed welding and cutting processes, the Fanuc ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The Fanuc 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.
NOTES:

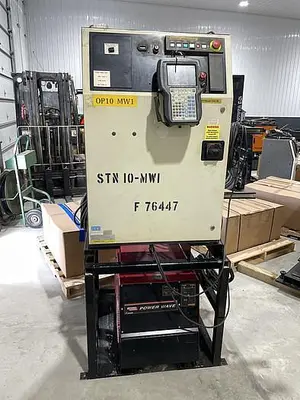

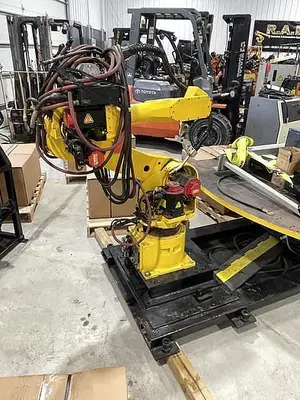

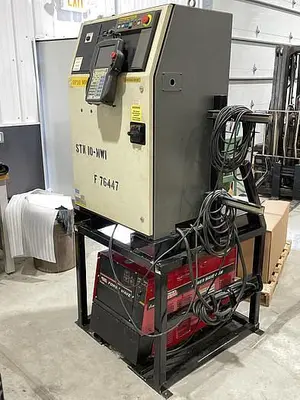

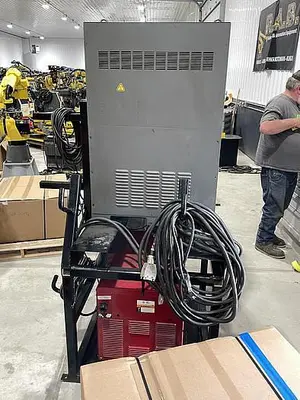

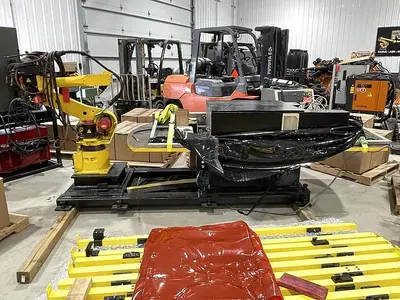

CELL IS IN TWO MAIN COMPONENT PIECES. THERE IS FABRICATED BASE THAT BOTH THE ROBOT ARM
AND INDEX TABLE IS MOUNTED TO. THERE IS A SEPARATE FABRICATED FRAME THAT HOLDS THE ROBOT

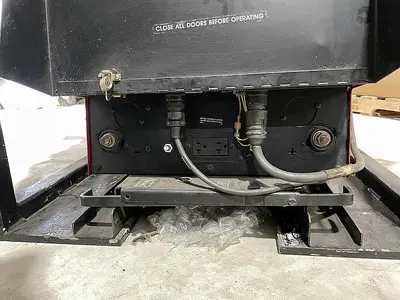

CONTROLLER WITH THE LINCOLN 455M WELDING POWER SUPPLY BENEATH THE ROBOT CONTROLLER.

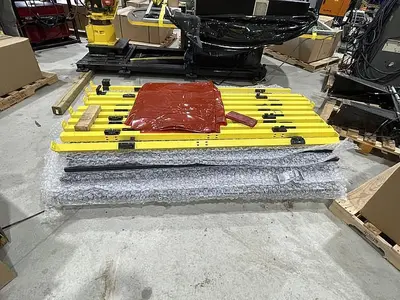

THE FENCING AND SUPPORT POSTS ARE ON A SEPARATE SKID TO BE LOADED OUT WITH CELL.
Robot Specifications:
Axes: 6
Payload: 20kg
H-Reach: 1667mm
Repeatability: ±0.08mm
Robot Mass: 220kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)
Robot Motion Range:
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°
Applications:
MIG Welding Robots
Oxyacetylene Welding Robots
Plasma Cutting Robots
Plasma Welding Robots
Submerged Arc Welding Robots
TIG Welding Robots
MAG Welding Robots
Welding Automation Robots
Arc Welding Robots
EQUIPPED WITH:

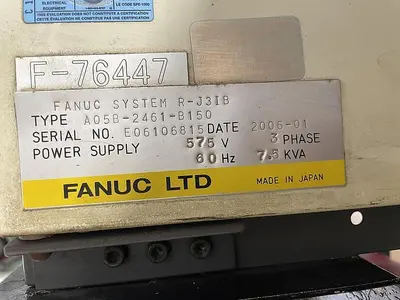

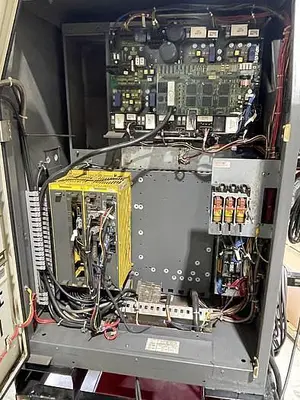

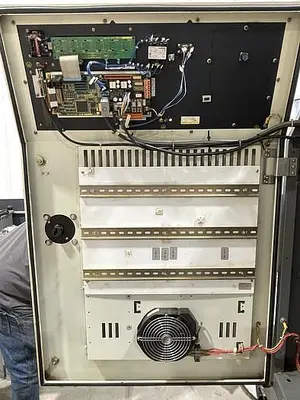

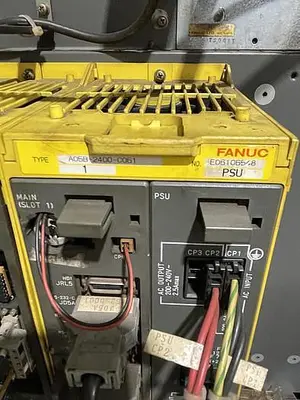

FANUC RJ3IB ROBOT CONTROLLER
FANUC ROBOT CONNECTION CABLES

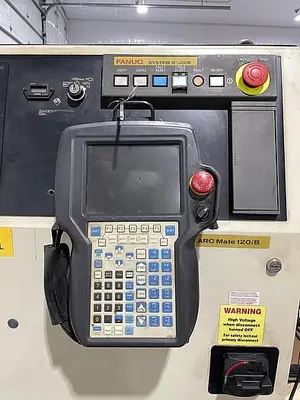

FANUC TEACH PENDANT
INDEX TABLE WITH WORKING SURFACE OF 5' X 8'

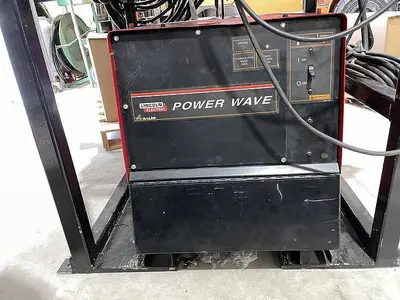

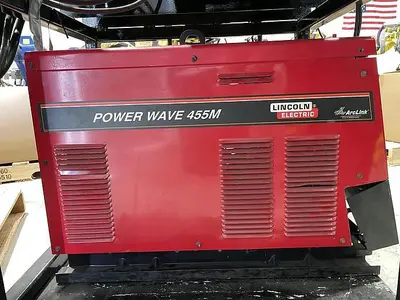

LINCOLN 455M MIG WELDING POWER SUPPLY

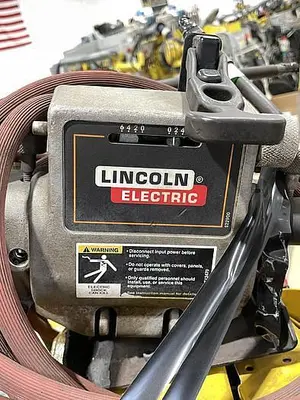

LINCOLN WIRE FEEDER MOUNTED ON REAR OF ROBOT ARM
WELD GUN

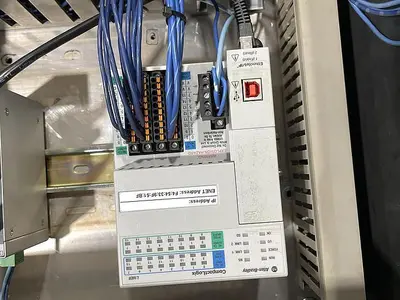

PLC CABINET WITH HMI FOR TIEING THE CELL TOGETHER
SAFETY FENCING
AND LIGHT CURTAIN
