USED FANUC N95 FACE MASK NOSE CLIP FANUC ROBOTIC ASSEMBLE AND ATTACHING CELL BY ACE NEW 2020

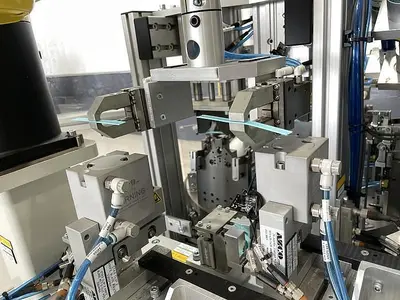

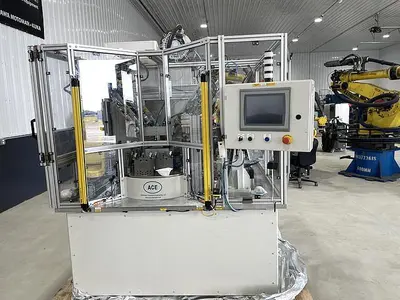

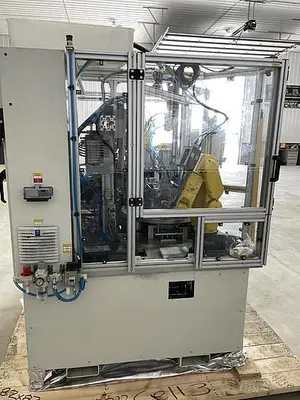

1-USED FANUC ROBOTIC CELL FOR ATTACHING NOSE CLIP TO N95 FACE MASK

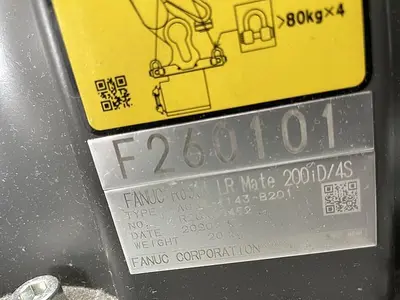

WITH (1) FANUC LR MATE 200iD/4S ROBOT SN F260101 DATE OF MFG 10/2020

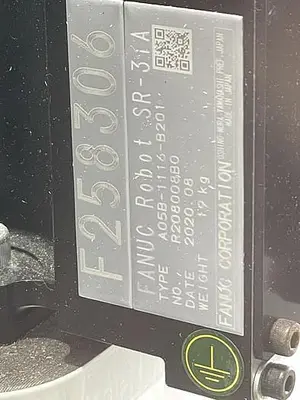

(1) FANUC SR3iA SCARA ROBOT SN F258306 DATE OF MFG 08/2020

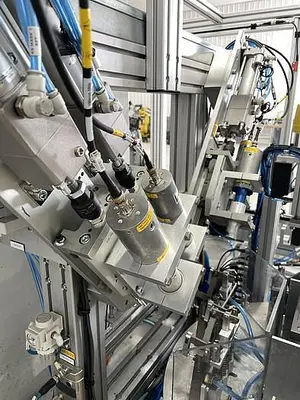

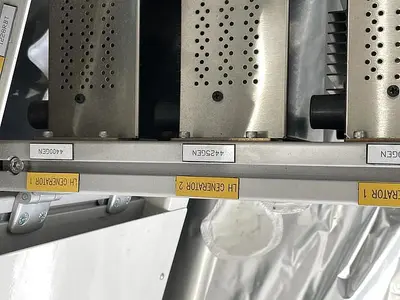

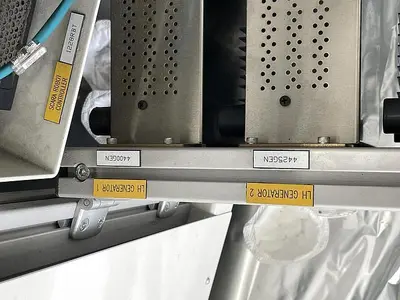

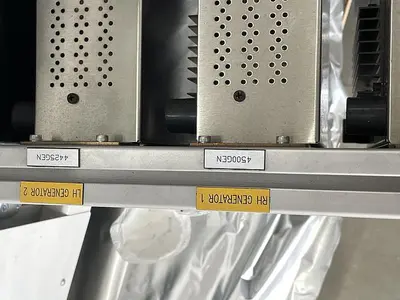

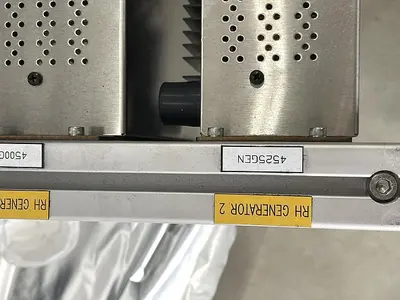

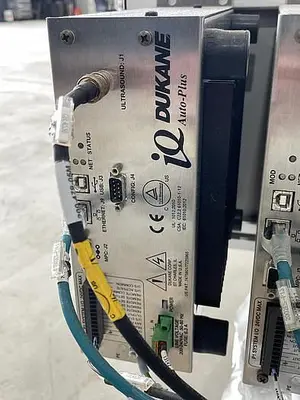

(4) DUCANE ULTRASONIC WELDERS

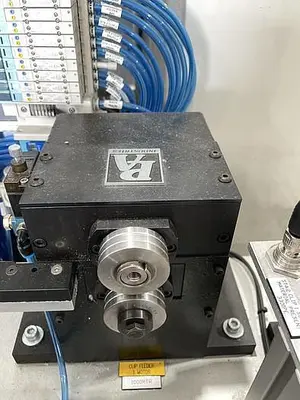

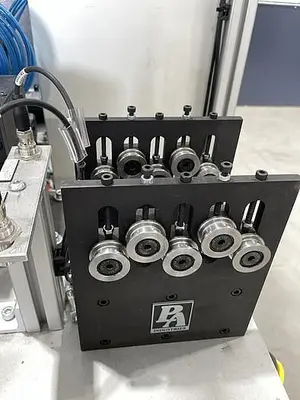

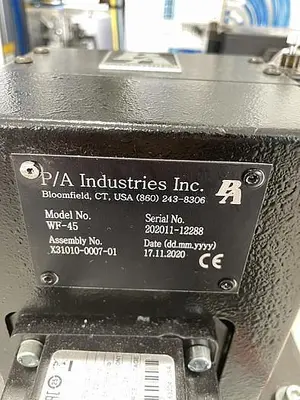

(2) PA INDUSTRIES FEEDERS, STRAIGHTENERS AND CUT OFFS SHEARS FOR NOSE CLIPS

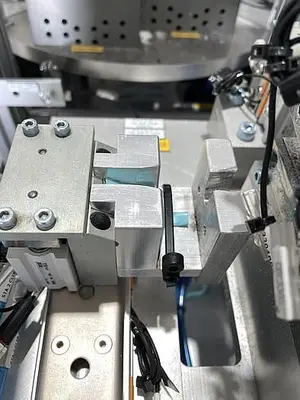

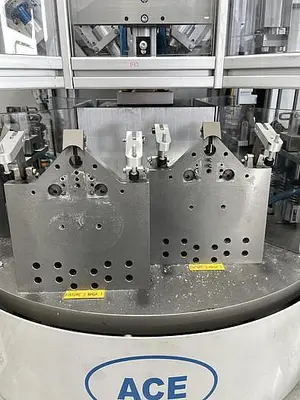

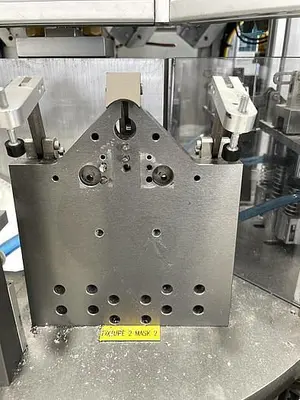

(1) INDEX TABLE WITH TWO FACE MASK TOMBSTONES TO HOLD MASK PER TABLE POSITION

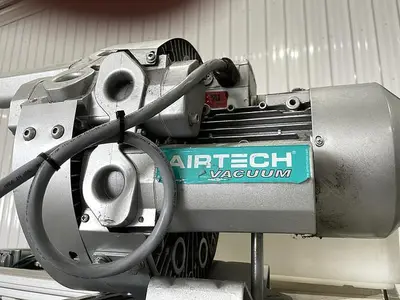

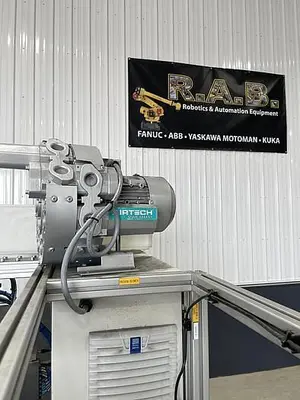

(1) AIRTECH VACUUM GENERATOR

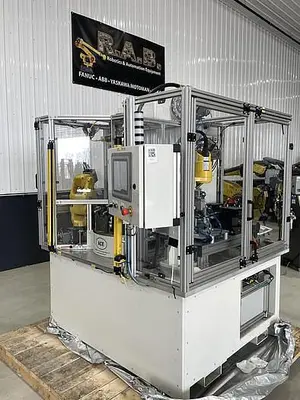

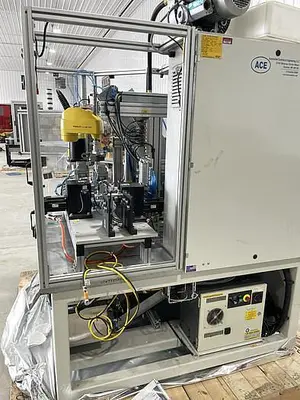

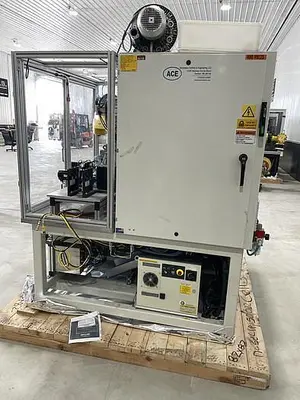

THE ENTIRE CELL WAS MANUFACTURED ON A COMMON BASE WITH FORK POCKETS

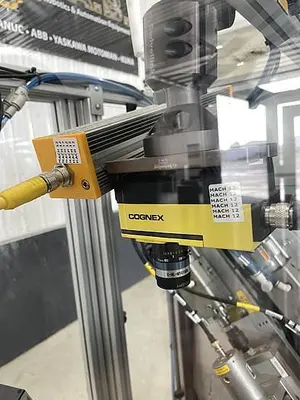

COGNEX CAMERA AND LIGHTING FOR VISION SYSTEM

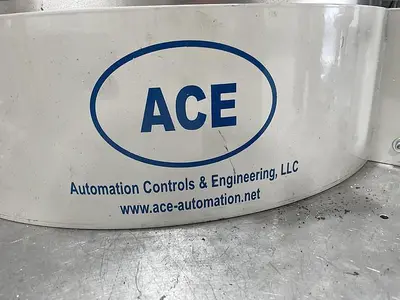

THE CELL WAS BUILT BY AUTOMATION CONTROLS & ENGINEERING IN LATE 2020
STK#104042

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

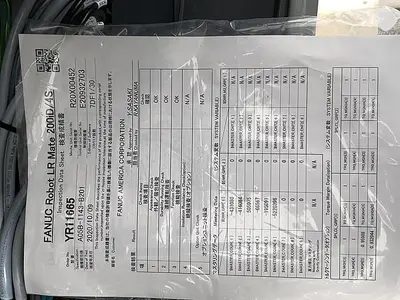

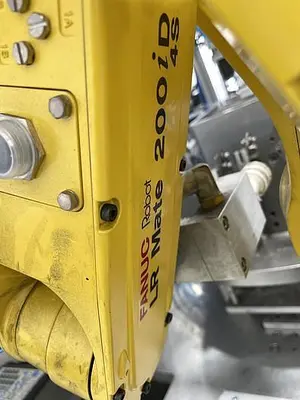

FANUC LR MATE 200iD/4S 6 AXIS ROBOT WITH R30iB MATE PLUS CONTROL W/VISION SYSTEM

FANUC LRMate 200iD/4S R30iB is a highly productive, short arm model available in the LR Mate 200iD series. It has a 550mm reach and a 4 kg payload capacity. Extremely compact, this 6 axis short arm robot has been designed for confined spaces and compact machines. The FANUC LR Mate 200iD/4s's slim arm is useful in narrow spaces, and its hand cabling and piping are integrated into the arm. Easy to integrate, this model is also available with a range of options including integrated intelligent (vision & force) functionality, and special application packages.

Robot Specifications:
Axes: 6
Payload: 4kg
H-Reach: 550mm
Repeatability: ±0.02mm
Robot Mass: 20kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed:
J1 460 °/s (8.03 rad/s)
J2 460 °/s (8.03 rad/s)
J3 520 °/s (9.08 rad/s)
J4 560 °/s (9.77 rad/s)
J5 560 °/s (9.77 rad/s)
J6 900 °/s (15.71 rad/s)

Robot Motion Range:
J1 +340° - 360°
J2 ±230°
J3 ±397°
J4 ±380°
J5 ±240°
J6 ±720°

Applications:
Assembly Robots
Deburring Robots
Machine Loading Robots

EQUIPPED WITH:

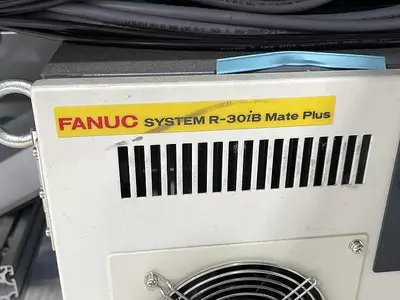

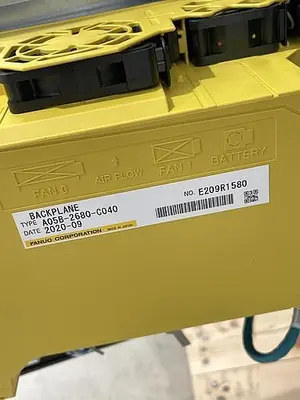

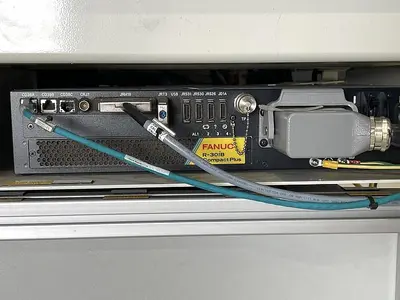

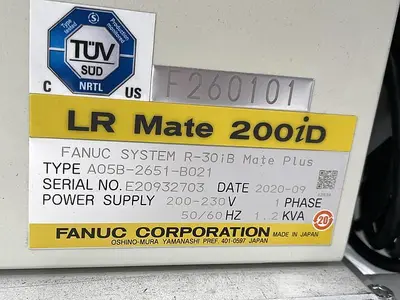

FANUC R30iB MATE PLUS CONTROLLER
FANUC ROBOT CONNECTION CABLES

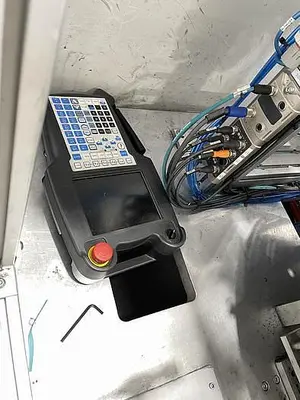

FANUC COLOR TEACH PENDANT
COGNEX CAMERA & LIGHTING VISION SYSTEM

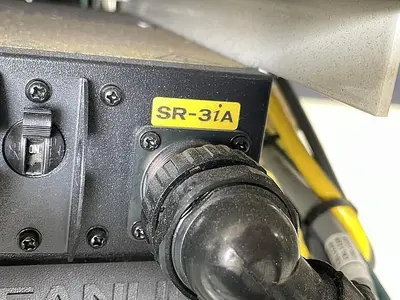

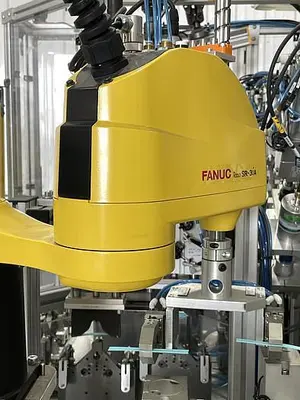

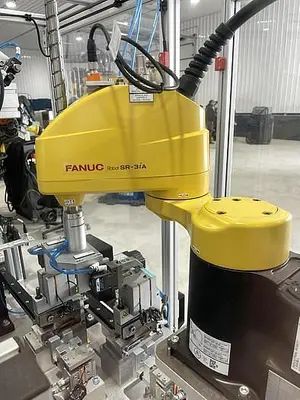

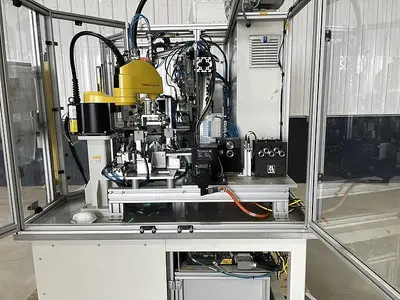

FANUC SR3iA 4 AXIS HIGH SPEED SCARA ROBOT WITH R30iB OPEN AIR CONTROLLER

FANUC SR-3ia is the perfect solution for your small part assembly and handling applications. It is a four-axis robot that brings fast speeds and incredible precision to the production line. This SCARA SR-3ia robot also offers users a very compact footprint and slim profile to help minimize interference with peripheral devices.

Robot Specifications:
Axes: 4
Payload: 3kg
H-Reach: 400mm
Repeatability: ±0.01mm
Robot Mass: 19kg
Structure: Scara
Mounting: Shelf

Robot Motion Speed:
J1 720mm/sec
J2 780mm/sec
J3 1800mm/sec
J4 3000mm/sec

Robot Motion Range:
J1 +/-142
J2 +/-145
J3 200mm
J4 +/-360

Applications:
Dispensing Robots
Pick and Place Robots
Assembly Robots

EQUIPPED WITH

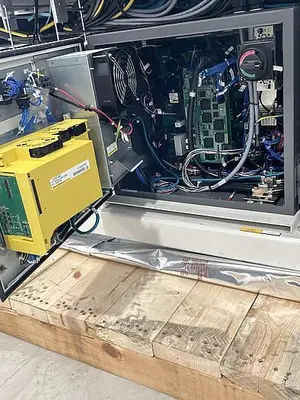

FANUC OPEN AIR R30iB CONTROLLER
FANUC ROBOT CONNECTION CABLES

CELL JIC PANEL AND CONTROLS
480 VOLT/ 3 PHASE/ 60 CYCLES
INTEGRATED WITH ALL ALLEN BRADLEY 2100 PLC CONTROLS

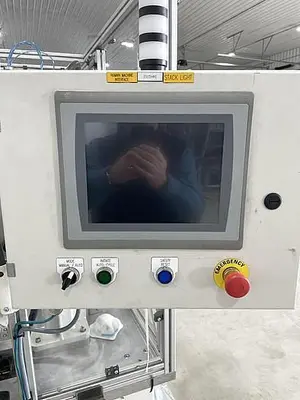

ALLEN BRADLEY HMI
ALLEN BRADLEY IO
ALLEN BRADLEY KINETIX 5500S2
ALLEN BRADLEY 525 POWER FLEX POWER SUPPLIES

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

HARBOR MACHINERY INC.
