USED FANUC M-16IB/20, WITH R-J3IC CONTROL, CABLES & TEACH PENDANT.

FANUC M16iB/20 6 AXIS CNC ROBOT WITH RJ3IB CONTROLLER

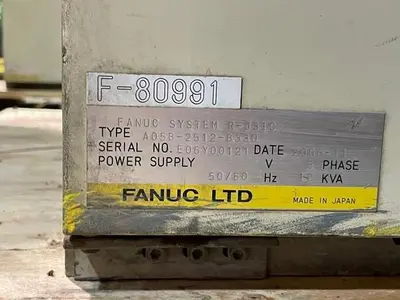

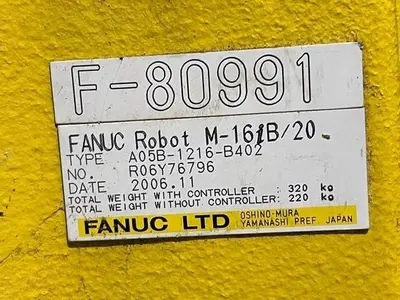

SERIAL NUMBER F80991
DATE OF MFG. 11/2006
STK#104037
================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications
Axes: 6
Payload: 20.00kg
H-Reach: 1667.00mm
Repeatability: ±0.0800mm
Robot Mass: 220.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°

EQUIPPED WITH:

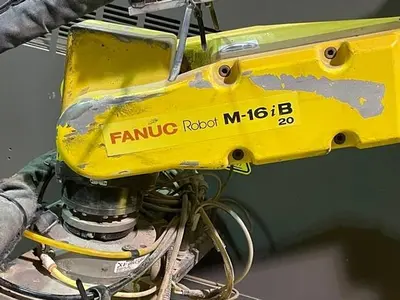

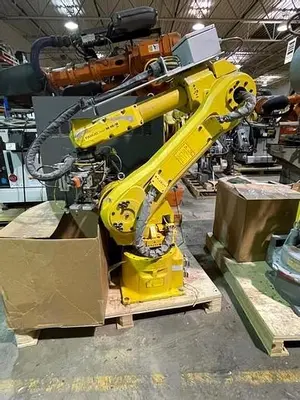

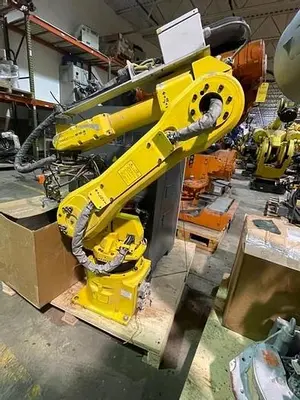

FANUC M16iB/20 ROBOT MECHANICAL UNIT
FANUC ROBOT CONNECTION CABLES
FANUC TEACH PENDANT

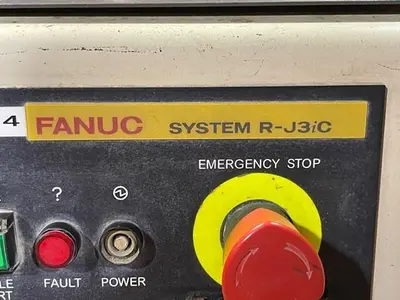

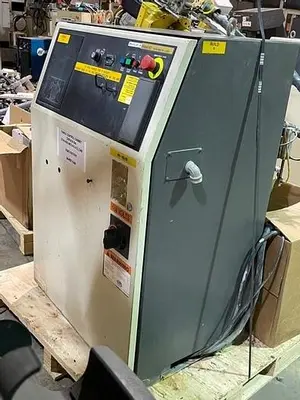

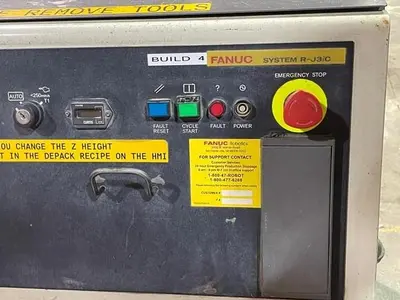

FANUC R-J3iC CONTROLLER (R-30iA)
ROBOT STAND

Robot Applications
Material Handling Robots
Mig Welding Robots
Machine Tending Robots

This Robot is Designed to perform many material handling applications, the FANUC M-16iB/20 features a payload capacity of 20 kilograms. It has servo driven motors, a simple construction, and reliable motion control that further improved productivity and performance.
