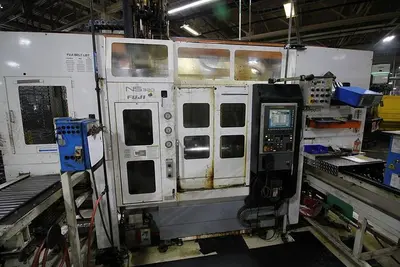

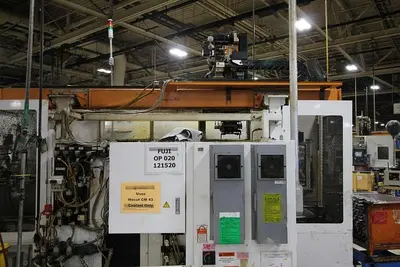

USED FUJI ANS-320TTS TWIN TURRET CNC LATHE WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES

FUJI ANS-320TTS TWIN TURRET CNC LATHE WITH ROBOT LOAD/UNLOAD AND STOCKER TABLES
YEAR 2008
SN
STOCK# 103977

CATALOG SPECS:
================================================================================
MAX WORK DIAM......................................................................................7.1
LENGTH.......................................................................................................23.6
SPINDLE DIA...............................................................................................3.9"
SPINDLE NOSE..........................................................................................A2-6
SPINDLE BORE..........................................................................................2.2"
SPINDLE SPEED.......................................................................................3500 RPM
SPINDLE MOTOR.......................................................................................15/18 (20/25)
TAILSTOCK..................................................................................................MT4
TAILSTOCK STROKE................................................................................13.78"
QUILL DIAM.................................................................................................3.9
SLIDE STROKE
X AXIS...........................................................................................................3.35" UPPER & LOWER
Z AXIS...........................................................................................................28.94 UPPER & LOWER
RAPID TRAVERSE RATE
X AXIS...........................................................................................................945IMP UPPER & LOWER
Z AXIS............................................................................................................945IMP UPPER & LOWER
LEAST INPUT INCREMENT X & Z ........................................................0.0001 UPPER & LOWER
FEED MOTOR X & Z....................................................................................1.9 UPPER & LOWER
NUMBER OF TOOLS....................................................................................6 UPPER & LOWER
TOOL SIZE......................................................................................................1
CHUCK SIZE..................................................................................................8

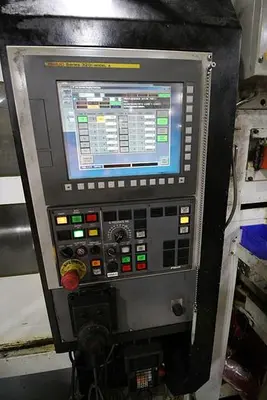

CNC CONTROL.............................................................................................FANUC 320i-A

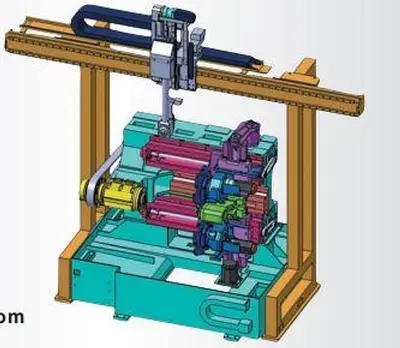

ROBOT TYPE.................................................................................................L672-B
ROBOT CAPACITY........................................................................................22+22
ROBOT CONTROLLER................................................................................MAX SP1
WEIGHT...........................................................................................................14,300

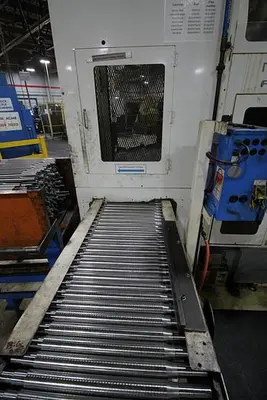

STOKER TABLES

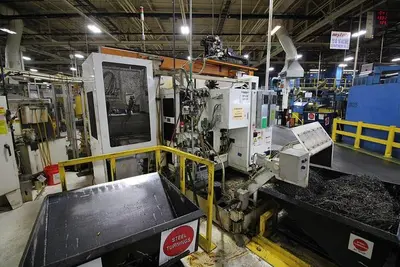

CHIP CONVEYOR
