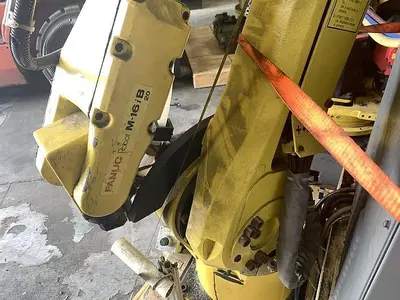

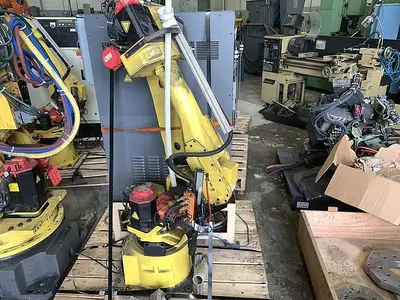

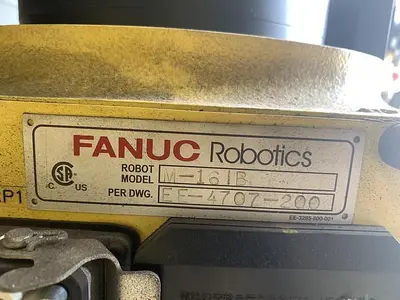

USED FANUC M16IB/20 6 AXIS CNC ROBOT WITH FANUC RJ3IB CONTROLLER

1-USED FANUC M16iB/20 6 AXIS CNC ROBOT WITH RJ3iB CONTROLLER

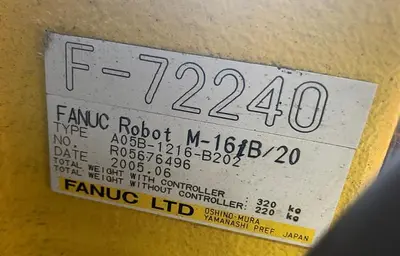

SERIAL NUMBER F72240
DATE OF MFG. 06.2005
STK#103957
=============================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

Robot Specifications
Axes:6
Payload:20.00kg
H-Reach:1667.00mm
Repeatability:±0.0800mm
Robot Mass:270.00kg
Structure:Articulated
Mounting:Floor, Inverted, Angle

Robot Motion Speed
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range
J1±170°
J2+160° - 90°
J3+290° - 170°
J4±200°
J5±140°
J6±450°

EQUIPPED WITH:

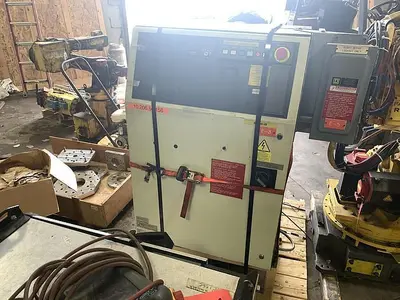

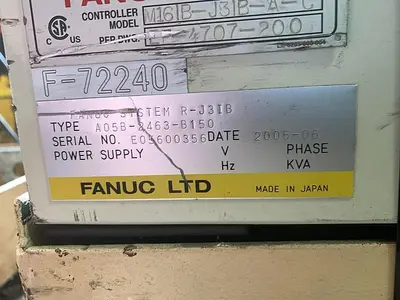

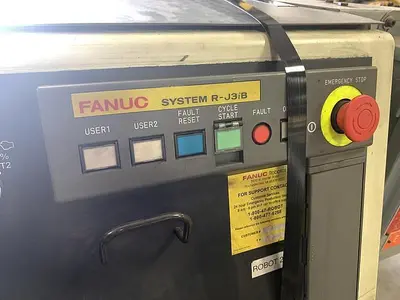

RJ3iB CONTROLLER
CABLES
TEACH PENDANT
