USED 2017 FANUC LR MATE 200ID/7C CLEAN ROOM 6 AXIS ROBOT WITH R30IB

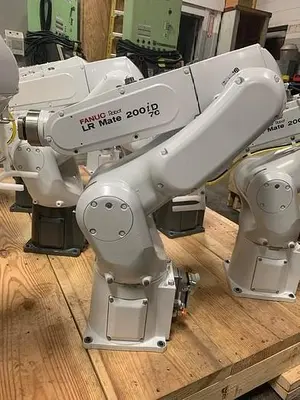

FANUC LR MATE 200iD/7C 6 AXIS CLEAN ROOM ROBOT WITH R30iB CONTROLLER
THESE ROBOTS ARE NEW OR LIKE NEW
DATE OF MFG. 2017
STK#103917
======================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications:
Axes: 6
Payload: 7.00kg
H-Reach: 717.00mm
Repeatability: ±0.0200mm
Robot Mass: 25.00kg
Structure: Articulated
Mounting: Floor

Robot Motion Speed:
J1 450 °/s (7.85 rad/s)
J2 380 °/s (6.63 rad/s)
J3 520 °/s (9.08 rad/s)
J4 550 °/s (9.6 rad/s)
J5 545 °/s (9.51 rad/s)
J6 1000 °/s (17.45 rad/s)

Robot Motion Range:
J1 ±360°
J2 ±245°
J3 ±420°
J4 ±380°
J5 ±250°
J6 ±720°

This robot has a footprint of only 190 mm x 190 mm, a low acoustic decibel, and average power consump- tion at only 0.5 kW, the FANUC LR Mate 200iD/7C doesn't take up much space, sound, or energy. It is also dust-proof, with an IP67 rating, and an IP69K rating for those industries that need the robot to be cleaned with hot, high pressure jets. The LRMate 200iD/7C is a clean room class 10, meaning it can be used when working with highly sensitive parts.

Equipped With:

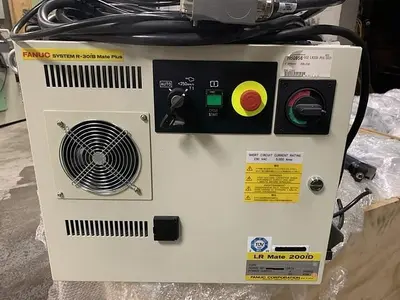

R30iB MATE CONTROLLER
CABLES
COLOR I TEACH PENDANT
