USED 2011 FANUC M900IA/600 6 AXIS CNC ROBOT WITH R30IA CONTROLLER

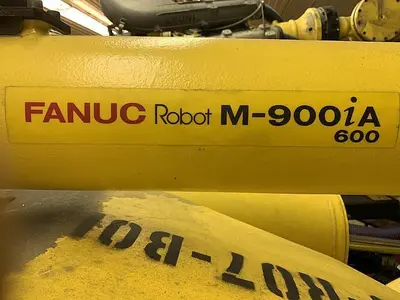

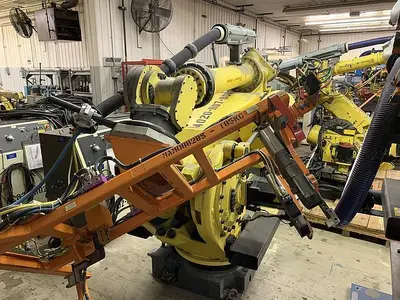

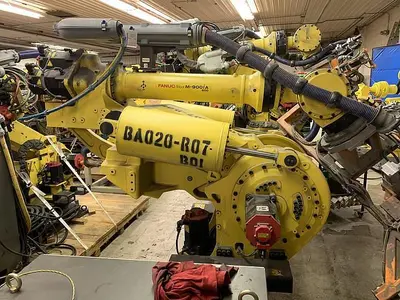

FANUC M900iA/600 6 AXIS CNC ROBOT WITH R30iA CONTROLLER

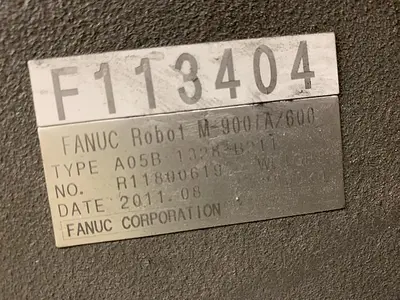

SERIAL NUMBER F113404
DATE OF MFG. 2011
STK#103899
==========================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

Robot Specifications
Axes:.............6
Payload:........600 kg
H-Reach:.......2832 mm
Repeatability: ±0.4 mm
Robot Mass: 2800 kg
Structure: ..... Articulated
Mounting: .....Floor

Robot Motion Speed
J1...... 80°/s (1.4 rad/s)
J2...... 80°/s (1.4 rad/s)
J3...... 80°/s (1.4 rad/s)
J4...... 100°/s (1.75 rad/s)
J5...... 100°/s (1.75 rad/s)
J6...... 160°/s (2.79 rad/s)

Robot Motion Range
Robot Controllers
J1...... ±180°
J2...... ±77°
J3...... ±80°
J4...... ±360°
J5...... ±122°
J6...... ±360°

Robot Applications:
Fiberglass Cutting
Machine Tending

The heavy-duty FANUC M-900iA/600 features a rugged wrist design that performs reliably in
even the harshest manufacturing environments. It is also available with an optional 700 kg
payload wrist. Car chassis and other heavy parts can be lifted and manipulated with the
M900iA/600 R30iA Controller and Color I Teach pendant.

EQUIPPED WITH:
R30iA CONTROL
CABLES
COLOR SCREEN TEACH PENDANT
