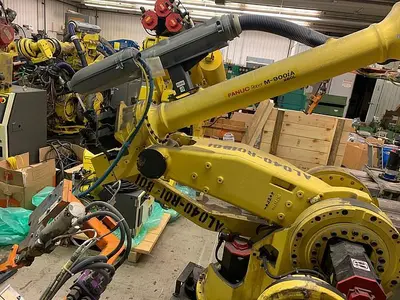

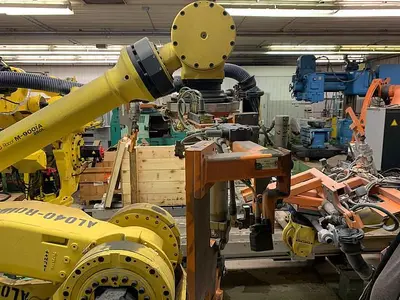

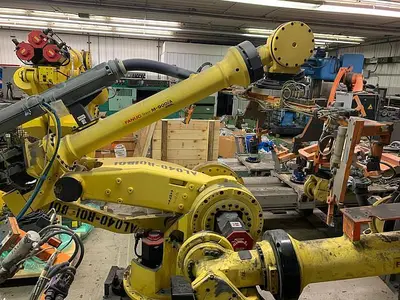

USED 2010 FANUC M900IA/260L 6 AXIS CNC ROBOT WITH R30IA CONTROLLER

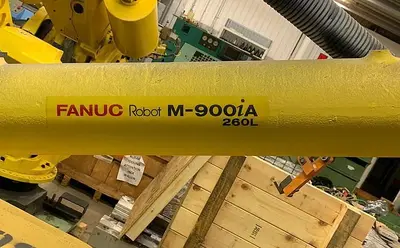

FANUC M900iA/260L 6 AXIS CNC ROBOT WITH R30iA CONTROLLER

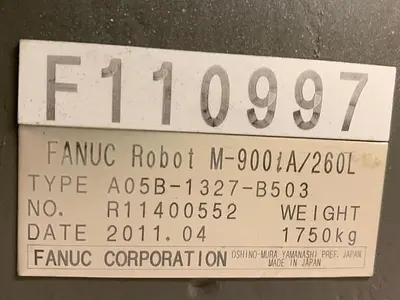

MACHINE SERIAL NUMBER F110997
APPROX. DATE OF MFG. 2010
STK#103894
===================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

HOURS SHOWN ON METER 4,010.3

Axes: 6
Payload: 260kg
H-Reach: 3100mm
Repeatability: ±0.3mm
Robot Mass: 1800kg
Structure: Articulated

Robot Motion Speed

J1 100 °/s (1.75 rad/s)
J2 105 °/s (1.83 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 200 °/s (3.49 rad/s)

Robot Motion Range

J1 ±180°
J2 ±75°
J3 +90° - 121°
J4 ±360°
J5 ±125°
J6 ±360°

EQUIPPED WITH:
R30iA CONTROLLER
CABLES
TEACH PENDANT

THE M900iA SERIES ROBOT IS ENGINEERED FOR PRECISE, VERY HIGH PAYLOAD/HIGH SPEED
OPERATION. THE M900iA SERIES IS A SIX AXIS, ELECTRIC SERVO DRIVEN FAMILY OF ROBOTS
DESIGNED FOR A VARIETY OF MANUFACTURING AND SYSTEM PROCESSES.
