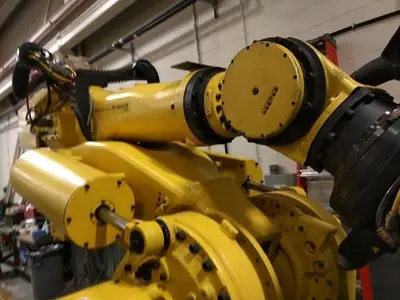

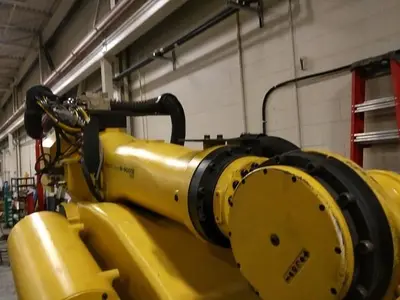

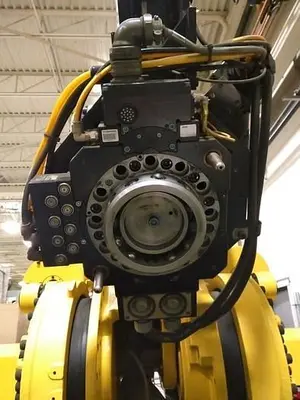

USED 2012 FANUC M900IB/700 6 AXIS CNC ROBOT WITH R30IB CONTROLLER & 7TH AXIS 15' LONG TRACK.

1-USED TRACK MOUNTED FANUC M900iB/700 6 AXIS CNC ROBOT WITH R30iB CONTROLLER
& 7TH AXIS 15' LONG TRACK.
SERIAL NUMBER 130873
APPROX. DATE OF MFG. 2012
STK#103784
================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

APPROX: HOURS ON UNIT LESS THAN 2,000

Robot Specifications
Axes: 6
Payload: 700.00kg
H-Reach: 2832.00mm
Repeatability: ±0.3000mm
Robot Mass: 2800.00kg
Structure: Articulated
Mounting: Floor

Robot Motion Speed
J1 80 °/s (1.4 rad/s)
J2 80 °/s (1.4 rad/s)
J3 80 °/s (1.4 rad/s)
J4 100 °/s (1.75 rad/s)
J5 100 °/s (1.75 rad/s)
J6 160 °/s (2.79 rad/s)

Robot Motion Range
J1 ±360°
J2 ±154°
J3 ±160°
J4 ±720°
J5 ±244°
J6 ±720°

Robot Applications

Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Pick and Place Robots
Fiberglass Cutting Robots
Foundry Robots

This Robot was Built with a heavy payloads in mind, the FANUC M-900iB/700 is designed with a wrist capacity that can handle payloads up to 700kg and a large work envelope.

EQUIPPED WITH:

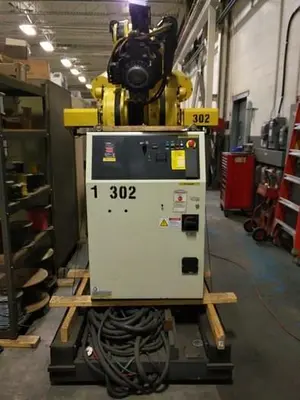

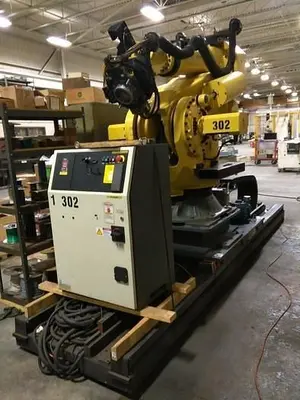

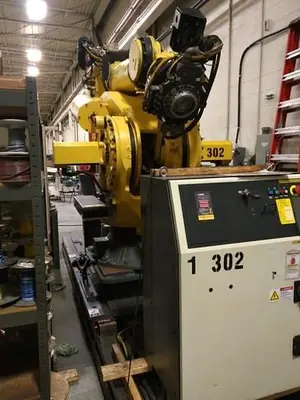

R30iB CONTROLLER
COLOR TEACH PENDANT

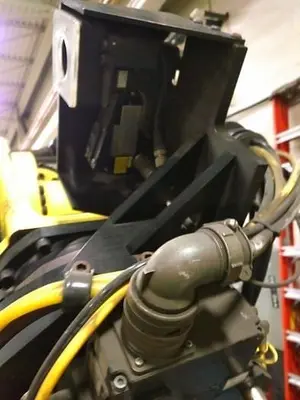

CABLES

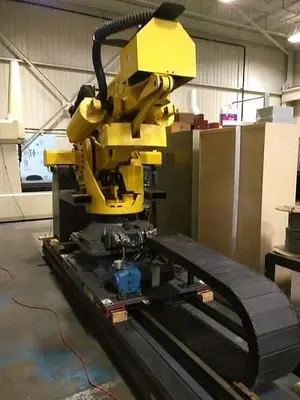

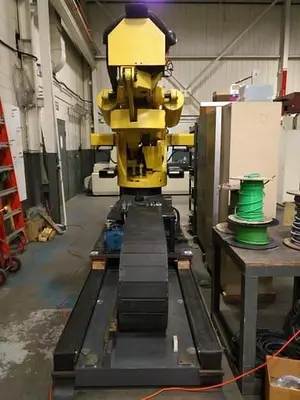

7TH AXIS TRACK 15' LONG MFG. BY ELLISON
