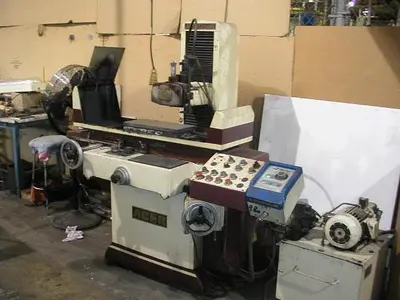

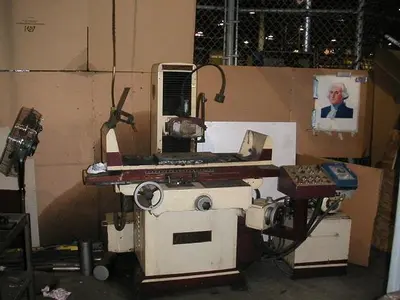

USED 1992 ACER AGS 1020
Overview
Revolution 0.1"
Revolution 0.2"
0.0001" - Per Revolution 0.01"
Reinforced high column & heavyweight Meehanite casting.
Direct drive spindle equipped with 4 ABEC-7 angular contact
ball bearings
10" x 20" Grinding capacity
3 Axis Automatic movement
Auto surface & plunge downfeed
24 volt circuit control.
Double-V crossfeed ways; one V, one flat table ways.
Auto-lube system.
downfeed and one for the table longitudinal travel
Large volume hydraulic tank.
Double nut design for crossfeed leadscrew
19 3/4" \ 23 1/2" from table top to the center of spindle.
Extra wide saddle at 24 1/2" and 30 1/2" each.
Specs
Spindle motor: 2 HP
Max table travel: 20-1/2"
Auto crossfeed motor: 1/5 hp x 6 p
Hydraulic pump motor: 2 hp x 4 p
Max. crossfeed travel: 11"
Max. grinding (w x l): 10" x 20"
Downfeed handwheel dial: Per Graduation 0.0005" - Per
Crossfeed handwheel dial: Per Graduation 0.001" - Per
Flow rate of coolant pump: 40 L/Min
Dual hydraulic pump system: one for the auto incremental
Crossfeed travel (from - to): 0 - 10"
Longitudinal travel (from - to): 6 - 20"
Grinding wheel (o.d. x t x i.d.): 8" x 1-1/4" x 1/2" (3/4)
Working surface of table (w x l): 9" x 20"
Auto downfeed micro adjustment dial: Per Graduation
Variable speed by hydraulic cylinder: 16 - 80 FPM
Automatic crossfeed carriage movement: 0 - 1"
Rotation speed of spindle (horizontal): 3500 RPM / 60 HZ
Distance between table surface & spindle center: 19-3/4"
Max load capacity in addition to magnetic chuck: 700 lbs.
