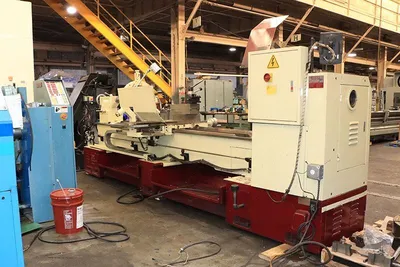

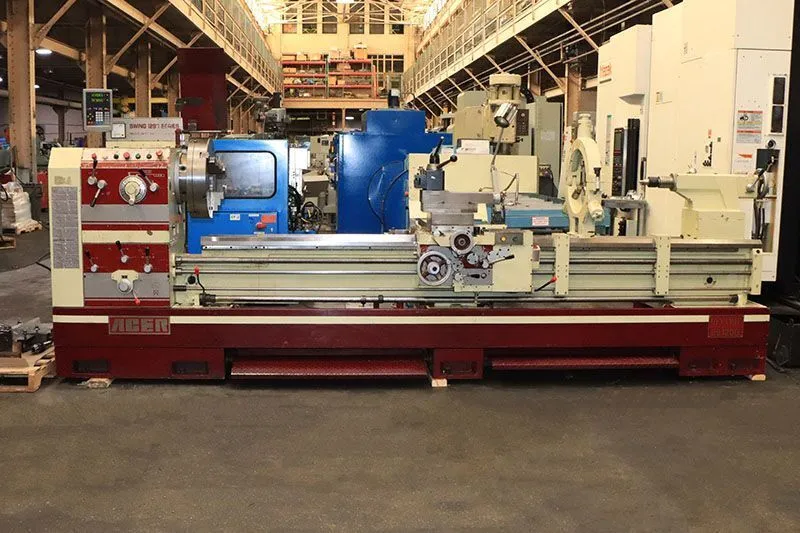

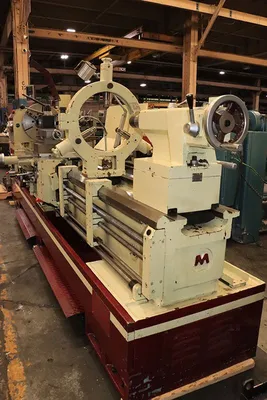

USED 2008 ACER DYNAMIC 29120G
Overview
Description

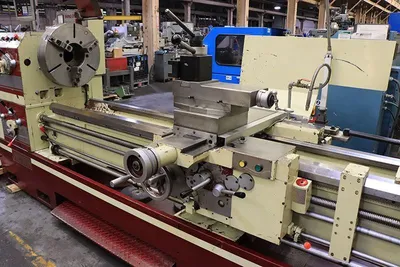

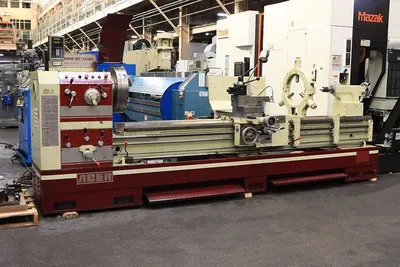

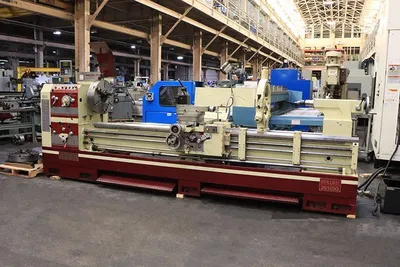

ACER Dynamic 29120G Lathe, 2008, 29"/37" x 120", equipped with Newall DRO, inch/metric threading, 3/4-jaw chucks, taper turning, and more. Swing over bed: 29-1/8". Spindle speeds: 25-1200 RPM.
Specifications
| Swing | 29" | 736.6 mm |
|---|---|---|
| Gap Swing | 37" | 939.8 mm |
| Centers | 120" | 3,048 mm |
| Dimensions | 170" x 50" | 170" x 50" |
| Weight | 12,500 lbs | 12,500 lbs |

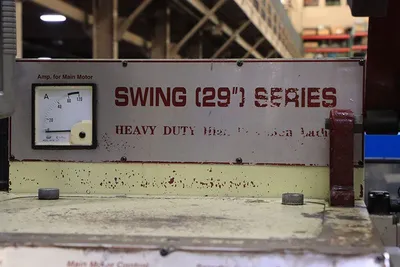

SWING OVER BED ....................... 29-1/8"
SWING OVER CROSS SLIDE ............... 20-1/2"
SWING IN REMOVEABLE GAP .............. 37-25/32"
DISTANCE BETWEEN CENTERS ............. 120"
WIDTH OF BED ......................... 16-1/2"
HOLE THRU SPINDLE .................... 4-1/8"
SPINDLE NOSE, CAMLOCK SIZE ........... D1-11"

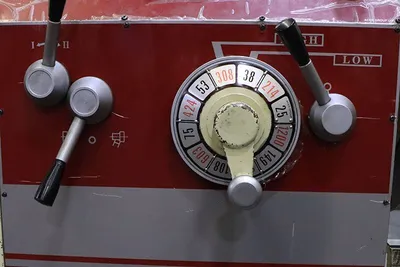

SPINDLE SPEEDS (16) .................. 25 - 1200 RPM

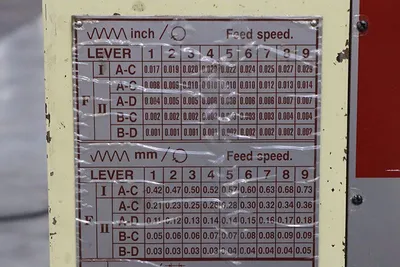

FEEDS:
LONGITUDINAL .................... .0012 - .0287 IPR
CROSS ........................... .0004 - .0118 IPR

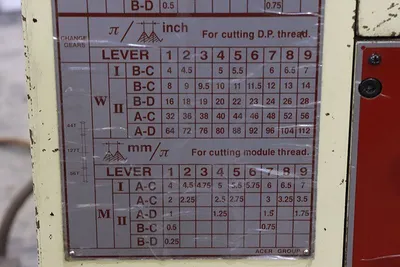

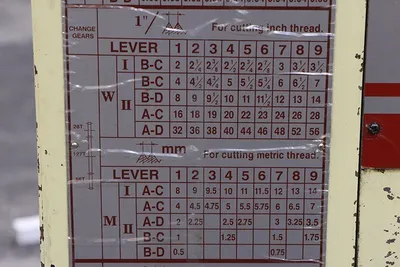

THREADS:
INCH (45) ........................ 2 - 56 TPI
METRIC (31) ...................... .5 - 14 mm
HEADSTOCK & TAILSTOCK SPINDLE TAPER .. #5 MORSE
TAILSTOCK SPINDLE DIAMETER ........... 3-1/32"
TAILSTOCK SPINDLE TRAVEL ............. 7"
APPROXIMATE DIMENSIONS ............... 170" x 50"
APPROX WEIGHT ........................ 12,500 LBS
Equipped With

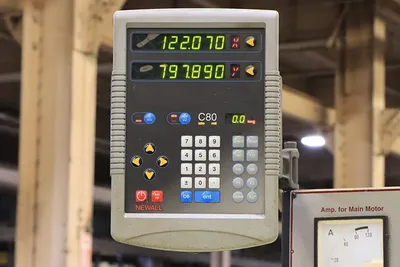

- NEWALL TWO AXIS DIGITAL READOUT
- INCH & METRIC THREADING
- REMOVEABLE GAP BLOCK

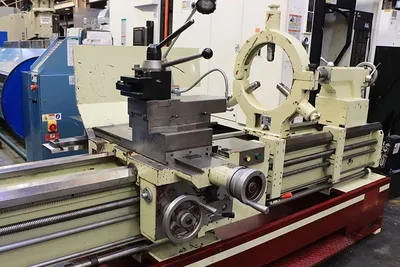

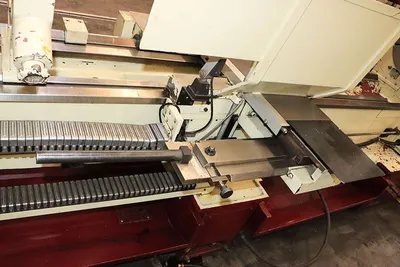

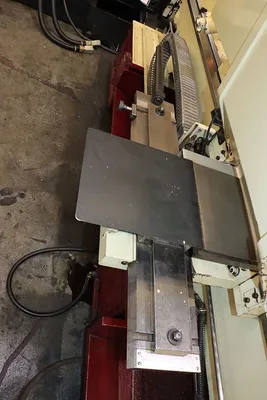

- TAPER TURNING ATTACHMENT

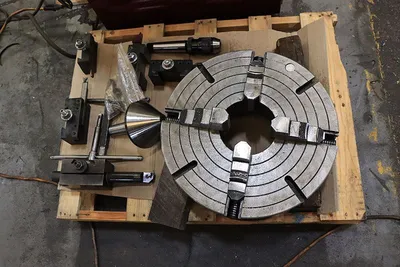

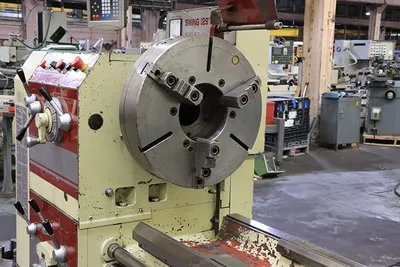

- 3-JAW CHUCK
- 4-JAW CHUCK

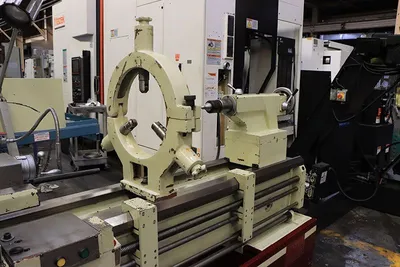

- STEADY REST
- QUICK CHANGE TOOLPOST w/HOLDERS
- LIVE CENTER FOR TAILSTOCK
- THREAD CHASING DIAL
- POWER RAPID TRAVERSE
- INDUCTION HARDENED BEDWAYS
- MULTI-POSITION LENGTH STOP
- FOOT BRAKE
- TWO SPEED TAILSTOCK
- COOLANT SYSTEM WITH REMOVABLE CHIP PANS
- 15 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
