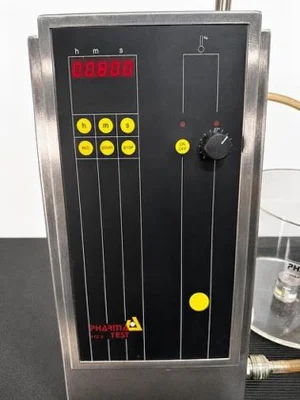

USED PHARMA TEST APPARATEBAU AG PTZ-S

The Pharma Test PTZ-S Single Basket Tablet Disintegration Tester is a manual laboratory instrument designed to determine the disintegration time of tablets, capsules, and other solid dosage forms in accordance with USP <701>/<2040>, EP <2.9.1>/<2.9.1.2>, and JP pharmacopoeial standards. It features a single test station with a six-tube basket, a thermostatically controlled water bath, and a quiet DC motor that moves the basket through a fixed 55 mm stroke at 30 cycles per minute.

The instrument incorporates an illuminated LED display, programmable timer with Auto-Stop, stainless steel housing, integrated heating and water circulation, and optional three-tube "B" baskets for larger dosage forms. Its compact footprint makes it ideal for pharmaceutical QC laboratories, R&D, and academic facilities.

---------------------------------------------------------------
Key Highlights

- Single-basket tablet disintegration tester
- Fully compliant with USP, EP, and JP pharmacopoeias
- Six-position standard disintegration basket
- Optional three-tube "B" basket for larger dosage forms
- Digital LED timer display
- Programmable Auto-Stop function
- Thermostatically controlled heated water bath
- Silent 24 V DC drive motor
- Stainless steel GMP-friendly housing
- IQ/OQ documentation included by manufacturer
---------------------------------------------------------------

Applications / Uses

- Tablet disintegration testing
- Capsule disintegration testing
- Pharmaceutical quality control
- Formulation development
- Stability studies
- Research and development
- Academic pharmaceutical laboratories
- GMP quality assurance
---------------------------------------------------------------

Typical Specifications (Summary)

- Type: Manual Single Basket Tablet Disintegration Tester
- Testing Capacity: 1 basket (6 tubes)
- Optional Basket: 3-tube Apparatus B
- Stroke Height: 55 mm
- Stroke Frequency: 30 strokes/min
- Timer Range: 1 second to 9 h 59 min 59 s
- Temperature Range: Approximately 30–45°C (typically operated at 37°C)
- Display: Illuminated LED
- Housing: Powder-coated stainless steel
- Dimensions (W × D × H): 42 × 26 × 42 cm
- Weight: 12 kg
- Compliance: USP <701>/<2040>, EP <2.9.1>/<2.9.1.2>, JP
- Power Supply: 100–240 VAC, 50/60 Hz (configuration dependent)
---------------------------------------------------------------

Typical Configuration Includes

- Pharma Test PTZ-S instrument
- Six-tube disintegration basket
- Six glass tubes
- Six plastic disks
- 1 L glass beaker
- Thermometer
- Power cable
- User manual
- IQ/OQ documentation
- Instrument logbook
