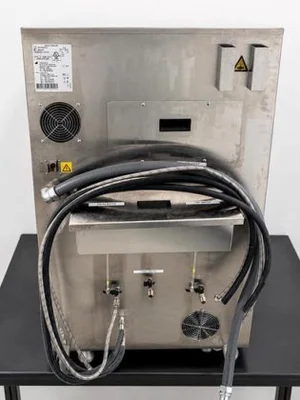

USED TUTTNAUER 3870HSG

The Tuttnauer 3870HSG is a hospital-grade Class B pre-vacuum steam sterilizer with an 85-liter chamber, designed for laboratories, hospitals, pharmaceutical facilities, research institutions, and large medical or dental clinics. It features a powerful built-in steam generator, automatic pre- and post-vacuum cycles, fast sterilization programs, and an automatic locking door for safe and efficient operation.

The system is equipped with a color LCD interface, programmable sterilization cycles, USB and Ethernet connectivity for cycle data management, and optional printer support. Constructed with a 316L stainless steel chamber, the 3870HSG is suitable for sterilizing wrapped and unwrapped instruments, glassware, liquids, porous loads, and laboratory materials.

---------------------------------------------------------------
Key Highlights

- Hospital-grade Class B pre-vacuum autoclave
- 85 L sterilization chamber
- Built-in steam generator
- Automatic pre-vacuum and post-vacuum drying
- 316L stainless steel chamber
- Automatic motorized door locking
- USB and Ethernet data logging
- Color LCD display with rotary control
- Up to 16 programmable custom cycles
- Bowie-Dick and Vacuum Leak Test programs
- Optional water-saving (WS) configuration available
---------------------------------------------------------------

Applications / Uses

- Laboratory sterilization
- Glassware sterilization
- Culture media preparation
- Instrument sterilization
- Biohazard waste decontamination
- Pharmaceutical laboratories
- Biotechnology research
- Hospital CSSD departments
- Medical and dental clinics
- Quality control laboratories
---------------------------------------------------------------

Typical Specifications (Summary)

- Type: Pre-Vacuum Steam Sterilizer
- Chamber Volume: 85 L
- Chamber Dimensions (Ø × L): 384 × 758 mm
- Chamber Material: Electropolished 316L Stainless Steel
- Sterilization Temperature: 121°C and 134°C
- Sterilization Class: Class B (Pre-Vacuum)
- Drying: Automatic post-vacuum drying
- Display: Color LCD with rotary controller
- Connectivity: USB, Ethernet, Optional Printer
- Power: 9 kW
- Electrical Supply: 208–480 VAC, 3-Phase (optional 230 VAC single-phase on some configurations)
- Dimensions (W × H × D): 720 × 1365 × 1180 mm
- Weight: 180 kg
- Tray Capacity: 2 trays

Sameer Khanna

Sales Manager - BionexScientificUSA

(732) 672-5380Show moreShow lessClick to Request More Info

Type: Prevacuum (Vacuum) Autoclaves
