New | Build-to-Order

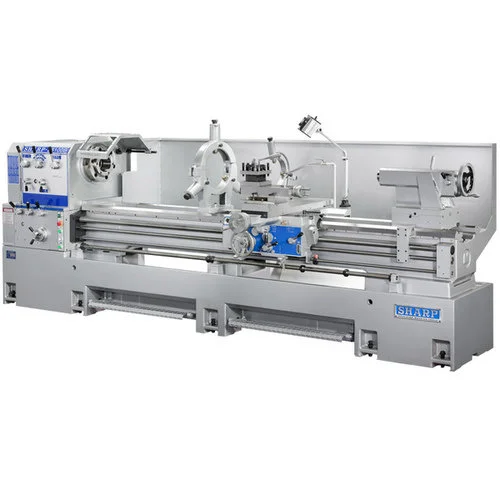

NEW SHARP 26160B

Overview
Precision Lathes

This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.

- D1-11 camlock spindle
- 4.5″ spindle bore
- 15 HP motor
- 12 speeds (10-1,000 rpm)
- Quick change gearbox
- One piece Meehanite cast bed
- Direct selection for inch / metric threads
- Double chucks available as option

Specs
Swing
26"
660.4 mm
Centers
160"
4,064 mm
Threading
inch, metric
inch, metric
Taper
4.0
4.0
Power
15 hp
11.2 kW
RPM
1,000 RPM
1,000 RPM
Dimensions
18.83x3.41x4.33 ft.
18.83x3.41x4.33 ft.
Weight
10,802 lbs.
10,802 lbs.
