New | Build-to-Order

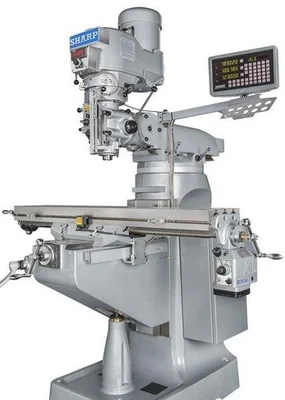

NEW SHARP LMV-49-DVS K-N

Overview
Vertical Mills

This is a package . The machine is installed with Digital Readout System, Power feed on table, saddle and knee.
The vertical mill is equipped with Digital Variable Speed spindle, chromed ways, many special features developed by SHARP, such as double nut backlash eliminator, bearing support motor shaft, thrust bearing installed at handles. The spindle is supported on high precision, paired angular contact bearings.

Specs
Table-W
9"
228.6 mm
Table-L
49"
1,244.6 mm
Travel-Long
36.6"
929.64 mm
Travel-Cross
12"
304.8 mm
Power
3 hp
2.2 kW
RPM
0 RPM
0 RPM
Taper
R-8
R-8
Dimensions
7' x 6.5' x 6.75'
7' x 6.5' x 6.75'
Weight
2,100 lbs
2,100 lbs
