New | Build-to-Order

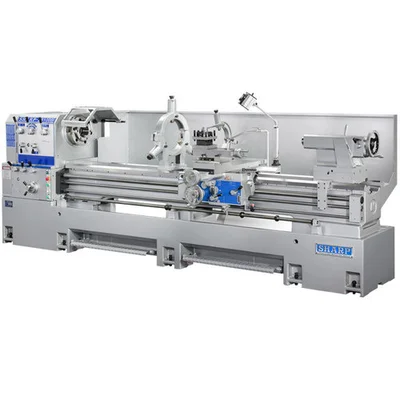

NEW SHARP 3080B

Overview
Engine Lathes

This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.

- D1-11 camlock spindle
- 4.5″ spindle bore
- 15 HP motor
- 12 speeds (10-1,000 rpm)
- Quick change gearbox
- One piece Meehanite cast bed
- Direct selection for inch / metric threads
- Double chucks available as option

Specs
Swing
30"
762 mm
Centers
80"
2,032 mm
Spindle Bore
4.5"
114.3 mm
Power
15 hp
11.2 kW
RPM
1,000 RPM
1,000 RPM
Swing Over Cross Slide
21"
533.4 mm
Dimensions
12.25x3.75x6.41 ft
12.25x3.75x6.41 ft
Weight
6,732 lbs.
6,732 lbs.
