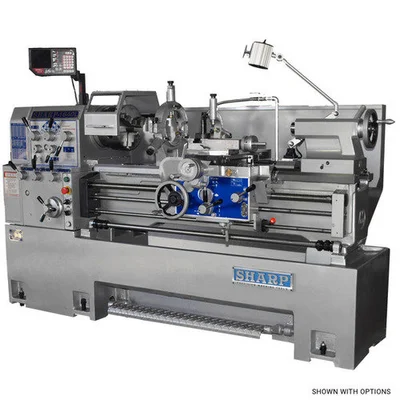

NEW SHARP 1880L

Overview
Engine Lathes

This model is designed with 3.18” spindle hole which is unique for 18” swing lathes. Due to its one piece casting machine base, it can support heavier cutting on large diameter materials. The large through hole allows most 3” diameter oil pipes to be machined.

- 18″ x 80″, geared head, D1-8 camlock, 3.18″ bore, 7.5 HP, 20-2,000 rpm (12)
- Direct selection for inch/metric threads
- One piece Meehanite casting bed
- 12-speed geared head (40-2,000 rpm)

Specs
Swing
18"
457.2 mm
Centers
80"
2,032 mm
Spindle Bore
3.0625"
77.788 mm
Power
7.5 hp
5.6 kW
RPM
2,000 RPM
2,000 RPM
Swing Over Cross Slide
10.2"
259.08 mm
