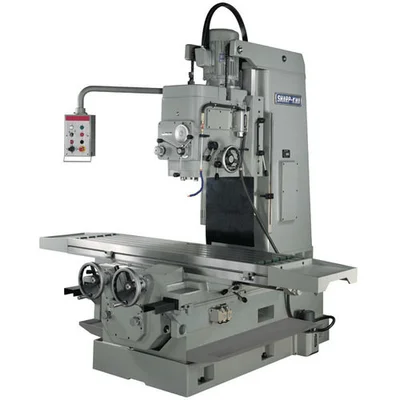

NEW SHARP KMA-2

Bed type vertical mills are ideal for milling large work piece or heavy cutting on hard metals. The quill is fixed so it can withstand strong lateral forces. For this model, the entire vertical head moves up to 20” that enables deep drilling and boring operations. The large spindle with #50 taper can remove large amount of metals in one pass. Even though the geared vertical head is huge, it travels smoothly by cranking the eye level tri-lever handle.

- 18” x 75” table, 18” x 479” travel
- Vertical head travel 22”, fixed quill
- NST #50 taper spindle, 15 HP motor
- Hardened and ground box ways
- Fully ribbed castings on column, table and saddle to make it a rigid structure
- Double nut backlash eliminator
- Eye-level lever control for vertical head rapid traverse
- Built-in coolant tank
- 4 way toggle control table rapid traverse
