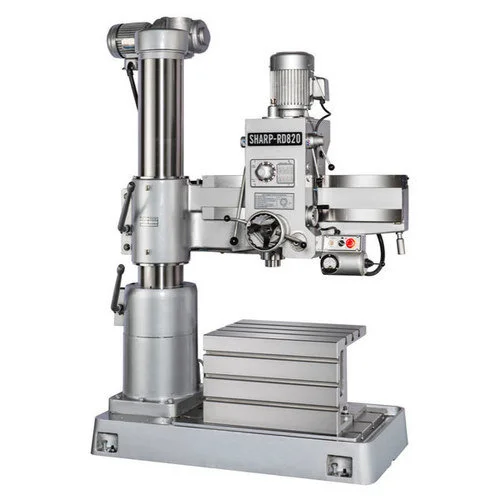

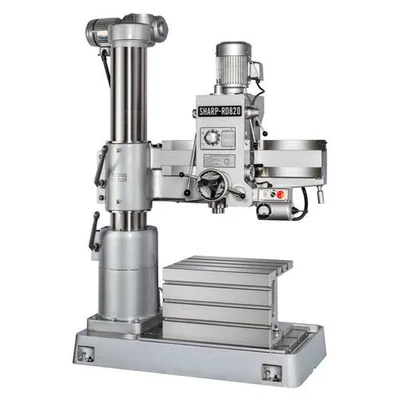

NEW SHARP RD-820

This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.

- 8.29” column diameter
- MT#4 spindle, 3 HP motor
- 33.46” column to spindle center
- Drilling : 1.968” cast iron, 1.259” steel
- Boring : 4.125” cast iron, 2.75” steel
- Hardened and ground arm slide ways and gears
- Arm elevation controlled by electric motor
- Manually operated arm, head, clamping
- Counter balanced spindle (spring action) to increase durability
- Safety device prevents arm from dropping even when bronze nut is worn out
- T-slots and drain channels on box table
