NEW SHARP V-1

Overview
Vertical Mills

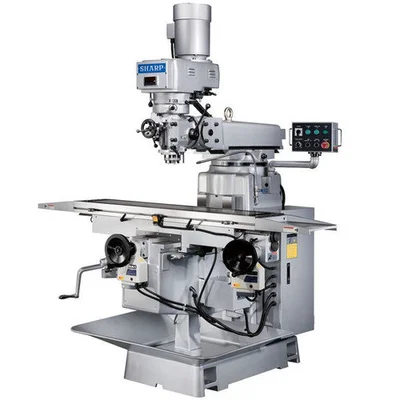

This model is built for heavy cutting. The boxways on the vertical column and top of base allow extra support to the table under hard machining. The size of the saddle is extra wide to support the table to avoid over hang. The top of the saddle is coated with TURCITE-B for better retention of oil and wear resistant.

- 12 x 58 ins table, 16 x 40 ins travel
- Hardened and ground box ways
- #40 taper, 5 hp spindle motor
- Digital Variable Speed spindle
- Power feed table and saddle
- Motorized rapid knee for easy positioning

Specs
Table-W
12"
304.8 mm
Table-L
58"
1,473.2 mm
Travel-Long
40"
1,016 mm
Travel-Cross
16"
406.4 mm
Power
5 hp
3.7 kW
RPM
70 RPM
70 RPM
Taper
NST #40
NST #40
Dimensions
83"x75"
83"x75"
Weight
4,500
4,500
