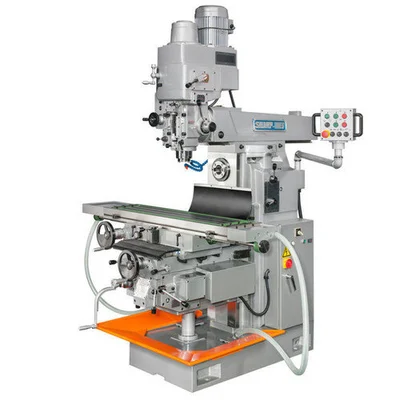

NEW SHARP VH-3

This is a versatile machine with 2 spindles, vertical and horizontal. By taking out the locating pins and swivel the overarm to the desired position it can switch between vertical and horizontal milling operations. It allows the work piece to stay at the same fixed position and perform various milling works. Thus it avoids losing accuracy due to the loading and unloading of work. The vertical head allows easy tapping operation via a joystick to move the rotating quill up and down. A separate lever control the boring operation of the quill.

- 12 x 51 in. table, 14.8 x 37.4 in. travel
- 5 hp, NST#40 geared head spindle for vertical head
- 7.5 hp, NST #50 geared head spindle for horizontal head
- Hardened and ground box ways
- Built-in gear box that deliver feeds and rapids for the table, saddle and knee
- Joystick control for tapping (vertical )
- Lever control for boring operation to move quill up and down (vertical )
- Electro-magnetic brake (vertical)
- Backlash Eliminator for climb milling
