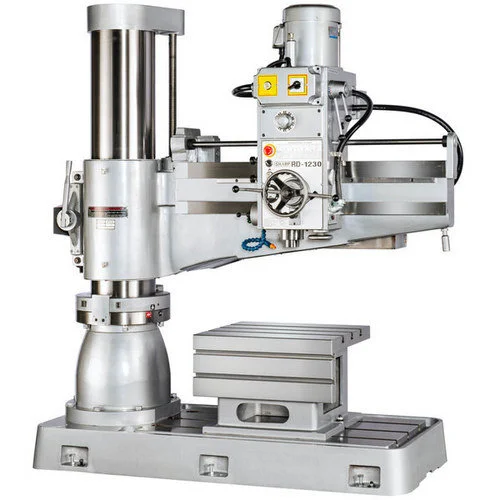

NEW SHARP RD-1230

This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.

- 12” column diameter
- MT#4 spindle, 5 HP motor
- 48.5” column to spindle center
- Drilling: 2.18” cast iron, 1.62” steel
- Boring: 4.75” cast iron, 3.37” steel
- Hardened and ground arm slide ways and gears
- Double tube column design to increase rigidity
- Arm elevation controlled by electric motor
- Manually operated arm, head, clamping
- Safety device prevents arm from dropping even when bronze nut is worn out
- Spindle depth setting with automatic kickout
- Auto reverse tapping function
- T-slots and drain channels on box table
