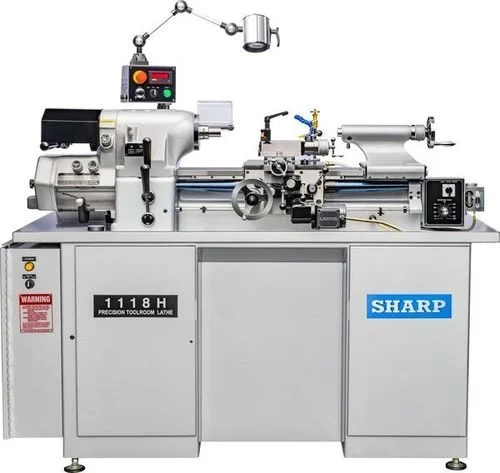

NEW SHARP 1118H

This toolroom lathe is ideal for small parts especially for those that requires threading. It offers very high precision (0.000050” TIR) and fast turn around time for machining tiny parts.

- Digital variable speed (DVS) drive system
- High speed spindle 130-4,000 RPM, accuracy within 50 millionth TIR
- Hardened and ground spindle
- Independent electric feed rate control on carriage and cross slide
- Quick change inch/metric gearbox with 36 changes
- Spindle supported by paired angular contact bearings
- Quick action slide for threading
- One piece alloy steel material, hardened and ground dovetail
- Bedways with Turcite on carriage & bed for oil retention
- Adjustable thread length control stops
- Hardened and ground leadscrews
