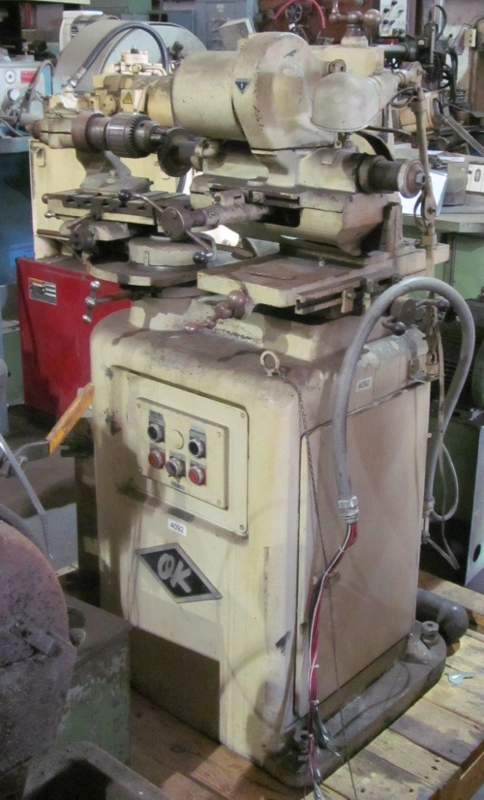

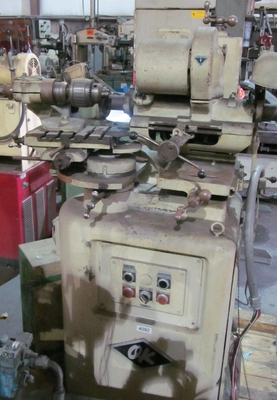

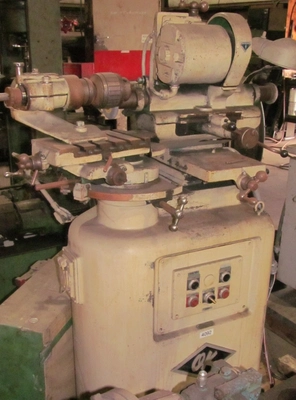

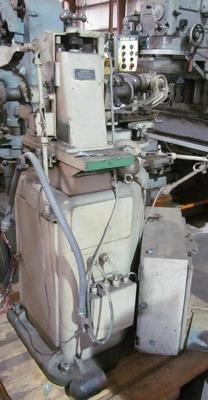

O.K. Tool Radius/Ball Nose Grinder

Max Length of Flute with Standard Machine: 4-1/2"

Max Mill Diameter Over Table: 9-1/2" (With #9 B&S Spindle)

Max Mill Diameter in Front of Table: 12" (With #9 B&S Spindle)

Axial Travel: 4-1/2"

Vertical Adjustment: 5-3/8"

Cross Travel: 6-1/4"

By Rack & Pinion Feed; 4"

By Screw Feed for Fine Adjustment: 2-1/4"

Work Table Size: 6-7/16" x 10-7/8"

Graduated Swivel Range: 210 Degrees

Adjustment Toward & From Swivel Center: 3-1/4"

Cross Adjustment: 1-1/4"

Cutter Head Angular Range:

Tilting of Cutter Head (Each Way): 20 Degrees

Wheel Spindle Speed: 5,000 RPM

Spindle Drive Motor: 1/3 HP, 3/60/460V
