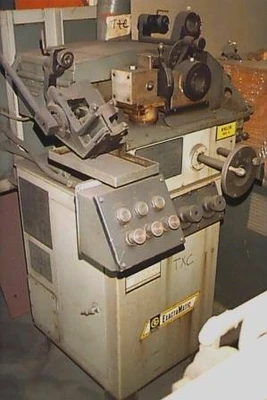

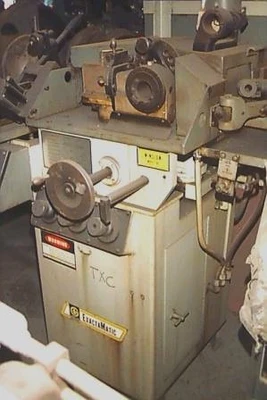

USED 1981 GIDDINGS & LEWIS WINSLOW HC
Overview
G & L Exactamatic Drill-Point Grinder
Model Winslow HC
Specs
Drill Capacity:
Conventional Point: 1/16" to 1/5" Diameter
Helical Point: 1/16" to 1.0" Diameter
Racon Point: 1/16" to 1.0" Diameter
Split Point: 1/16" to 0.5" Diameter
Four-Facet Point: 1/16" to 1.0" Diameter
Grinding Wheel: 2" X 3/4" X 5" Horizontal Mount
Motors:
Spindle: 1 HP; 1800 RPM; 230/460 V; 60 Hz; 3 PHASE
Workhead: 1/4 HP; 1800 RPM; 60 Hz; 3 PHASE
Coolant: 1/8 HP; 3450 RPM; 110 VOLTS; SINGLE PHASE
Equipped With
handles all types of 2 flute, right-hand or left-hand drills
drill point included angles from 90 to 140 degrees
lip clearance angle adjusted by control on console
built in cam for precision wheel dressing
Weight 1100 lbs
Floor Space 50" x 39"
