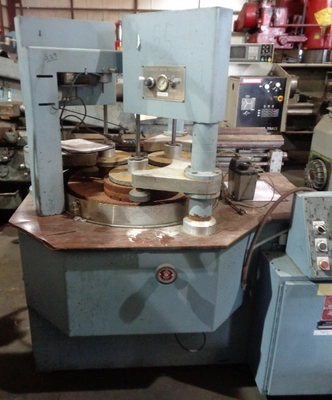

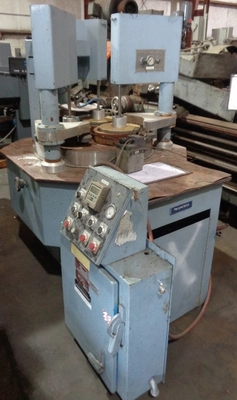

USED 1978 STRASBAUGH 6BA3

Table Size-O.D.: 26"

Face: 8"

Work Holding Rings: 3

Ring I.D.: 9-1/4"

Ring O.D.: 11"

Lap Speeds:

Variable Speed: 25 to 75 RPM

Fixed Speed: 58 RPM

Ring Offset: 1-1/2"

Ring Oscillation: 0 to 3/8"

Spindle Torque: 2415 lbs.

Spindle Load Rating: 2280 lbs.

Motors:

Table: 2 HP, 440V, 3Ph, 60 Cy

Slurry: 1/20 HP, 110V, 1 Ph, 60 Cy

Height (To Top of Table): 32"

Approx Weight: 1.500 lbs.

Approx Dimensions: 41" x 56" x 40"
