USED BABIN CIRCL-MATIC 24"
Overview

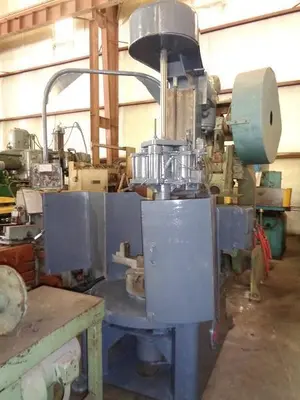

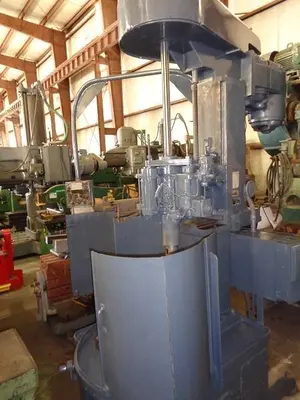

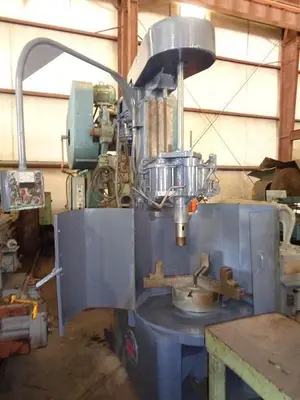

24" Babin Circle-Matic Automatic Bolt Circle Drill
S/N: ADP192
Specs
Standard Bolt Circle Range: 4" to 30"
Standard Division of Equal Spaced Holes: 4,5,6,8,10,12,16,20 & 24
Max Diameter of Work Piece (Swing): 33"
Max OD Chucking with Standard Jaws: 26"
Max ID Chucking with Standard Jaws: 33"
Centerline of Chuck to Front & Rear of Machine: 23" and 55"
Drilling Capacity in Carbon Steel: 2-1/2"
Spindle Stroke Maximum: 6"
Spindle Speeds: 76 to 552 RPM
Spindle Taper: 5 MT
Maximum Table Weight w/ Support Rings: 1,500 lbs
Main Motor: 5 HP
Equipped With
15" 3-Jaw Air Operated Chuck
Tachometer for Spindle Speeds
Coolant Pump
Splash Guards
Approx Dimensions: 50" W x 133" H
Approx Weight: 5,600 lbs
