USED 1966 CINCINNATI CINCO 15

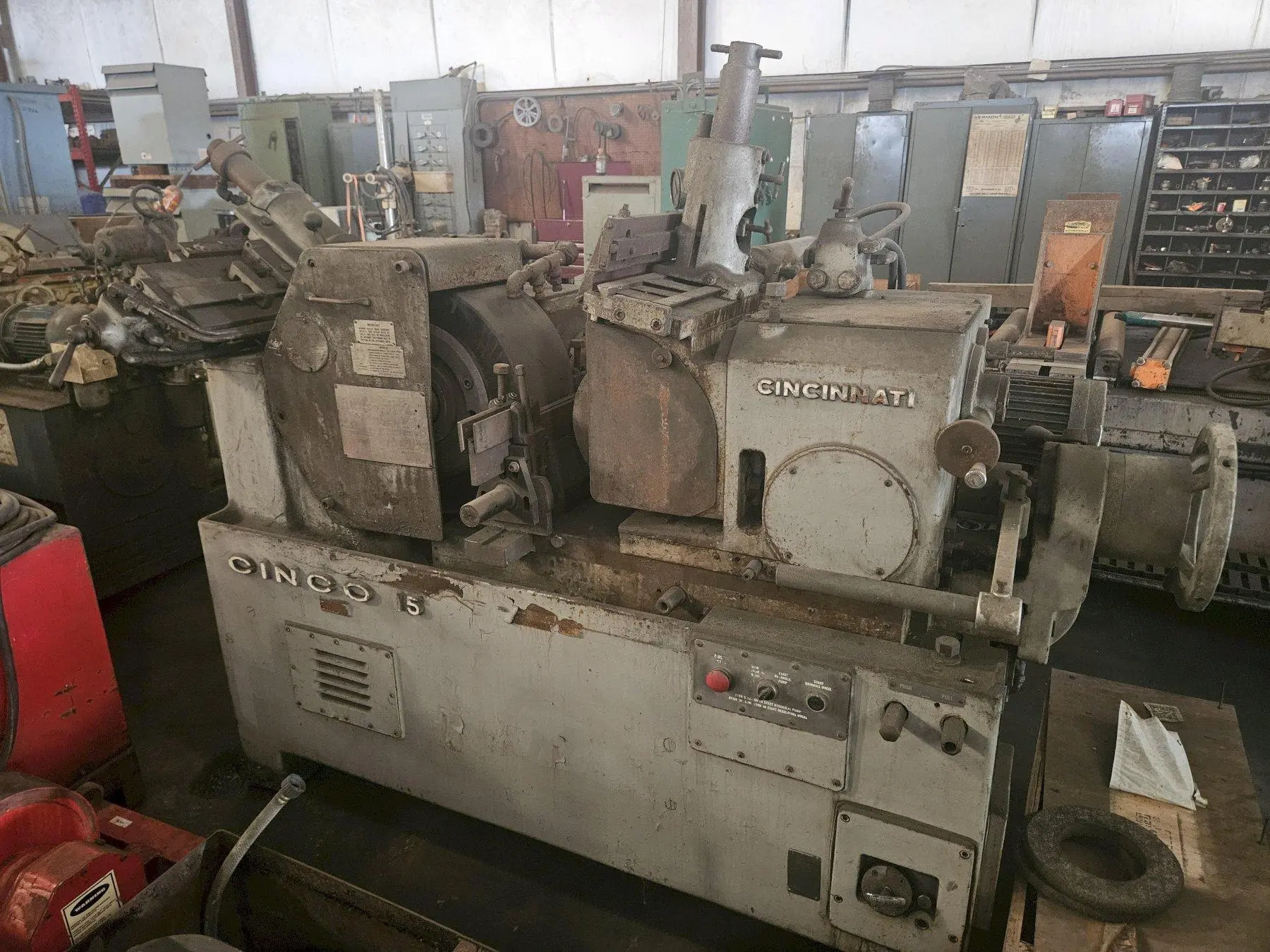

Cincinnati Model CINCO 15 Centerless Grinder
S/N: 9M8H5S-85 Year: 1966

Specification:

Capacity, Diameter: 0 to 3" (Standard); 4" (Max)
Grinding Wheel Width: 8"
Grinding Wheel Diameter: 17" to 24"
Regulating Wheel Width: 8"
Regulating Wheel Diameter: 12"
Regulating Wheel Speeds (INF.) 10 to 300 RPM
Grinding Wheel Motor: 15 HP
Regulating Wheel Motor: 1.5 HP
Infeed Adjustment: 0.001"
Electrical Requirements: 220V/ 3PH/ 60Hz

Equipped With:

Updated Electrics 230V/ 3PH/ 60Hz
Filmatic Bearings
Electro-Hydraulic Infeed
Hydraulic Grinding and Regulating Wheel Dressers
Coolant Tank and Pump
Bar Feed
Approx. Floor Space: 90" x 50"
Approx. Weight: 8500 lbs
