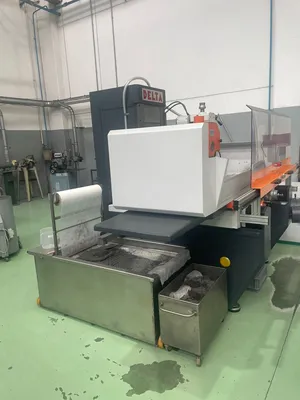

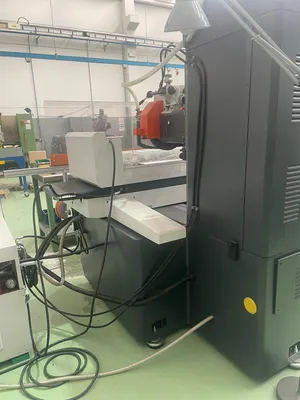

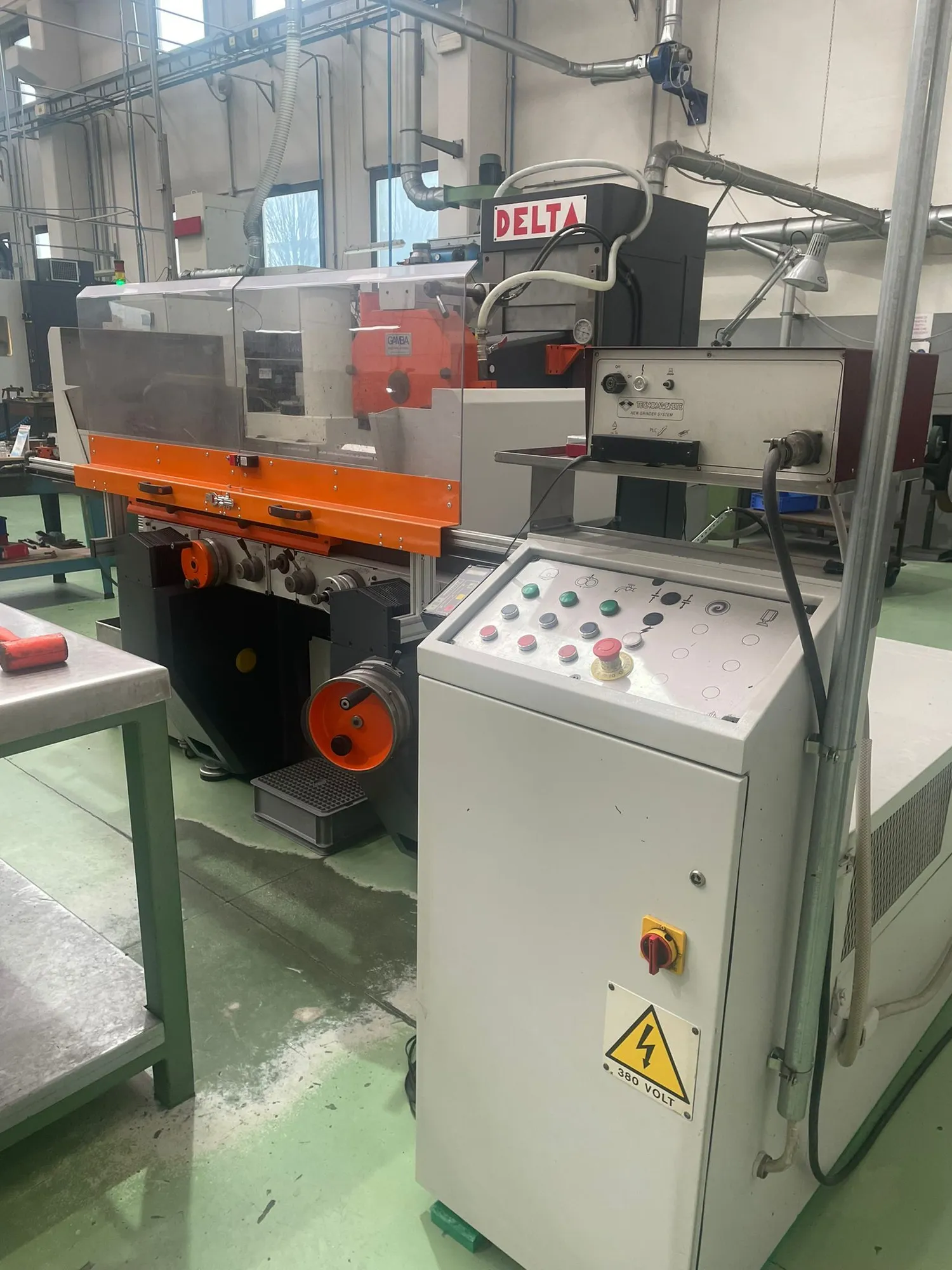

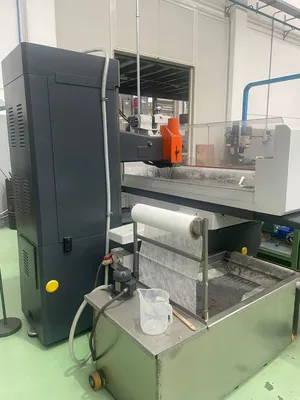

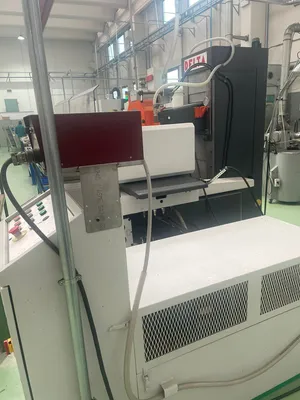

USED DELTA TP 900X600

Longitudinal (X): 950 mm37,40 in
Vertical (Z): 550 mm21,65 in
Max grinding lenght: 900 mm35,43 in
Max grinding width: 600 mm23,62 in
Spindle nose axis - table distance: 600 mm23,62 in
Cross speed: 0-30
Automatic Vertical: 0,005-0,03 mm/min0,0002-0,0012 ipm
Spindle power: 8 Kw
Rotating speed: 1400 Rpm
Wheel band thickness: 50 mm1,97 in
Max wheel diameter: 400 mm15,75 in
Hole diameter: 127 mm5,00 in
Machine total weight: 4400 Kg
Floor space: 3000X2400X2000 mm118,11X94,49X78,74 in
Tooling included: Piano Magnetico
