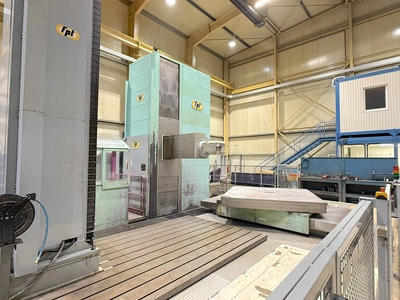

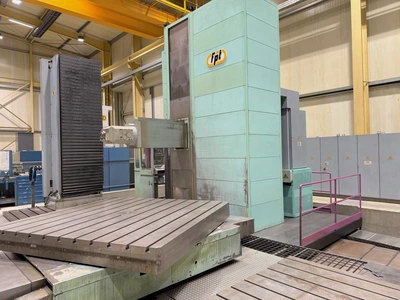

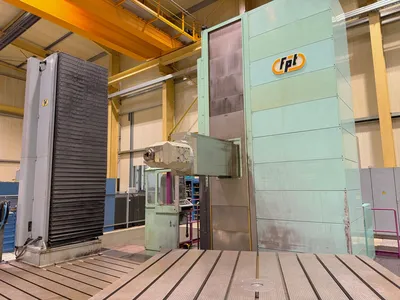

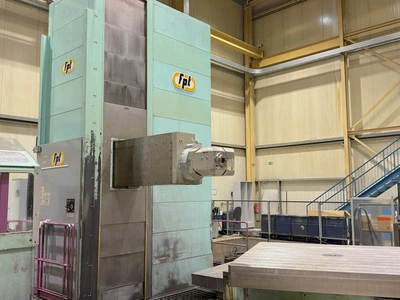

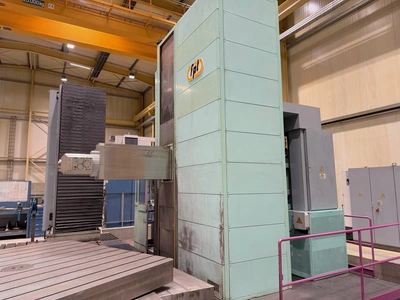

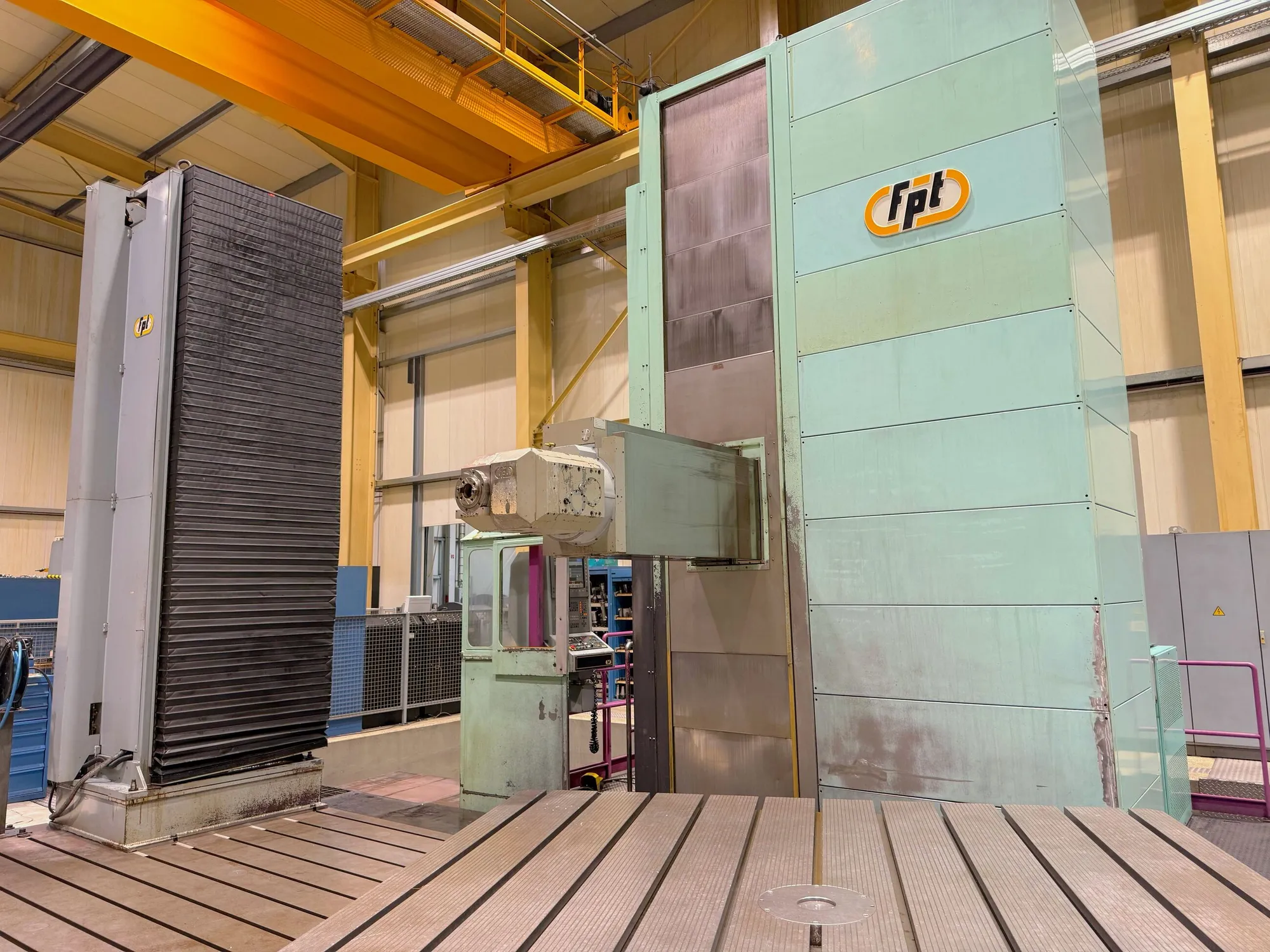

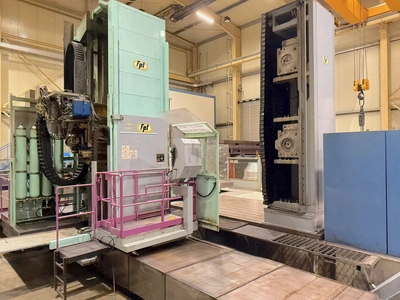

USED FPT M-ARX M80

Capacity: 8000x3000x1500 mm [WORKING CAPACITY]
Longitudinal (X): 8000 mm
Vertical (Y): 3000 mm
Cross RAM (Z): 1500 mm
Axes support: idrostatico
[CNC]

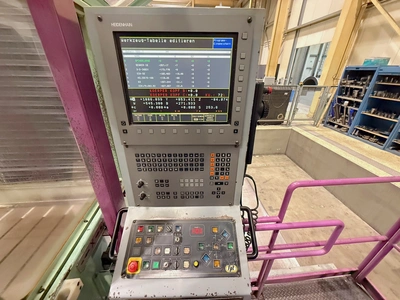

CNC: Heidenhain TNC430
[SPINDLE]
Spindle power: 46 Kw
Gearbox: 0-187 / 187-3000 Rpm
Rotating speed: 0-3000 Rpm
Torque: 2350 Nm
Taper: ISO50
[FEEDS]
Rapid X: 15 m/min
Rapid Y: 15 m/min
Rapid Z: 15 m/min

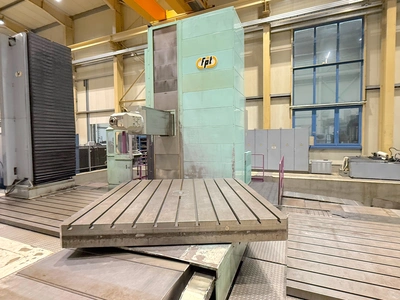

[FIXING TABLE]
Notes: Floor plates and rotary table not available / piani di lavoro e tavola girevole esclusi
[PICK UP STATION FOR HEADS]
Positions: 4

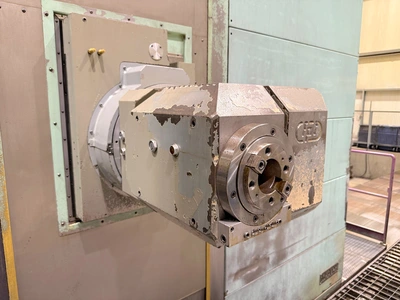

[HEAD 1]
Type: TUPC
Spindle taper: ISO50
A axis: 360.000x0,001 °
C axis: 360.000x0,001 °
Max torque: 2350 Nm
Max speed: 3000 Rpm
Max power: 46 Kw
Coolant: interno 20 Bar
[HEAD 1]
Type: TAM
Spindle taper: ISO50
A axis: 360x1 °
C axis: 360x1 °
Max torque: 2350 Nm
Max speed: 3000 Rpm
Max power: 46 Kw
Coolant: interno 20 Bar
Notes: ortogonale
[HEAD 1]
Type: SELS
Spindle taper: ISO50
Max torque: 2350 Nm
Max speed: 3000 Rpm
Max power: 46 Kw
Coolant: interno 20 Bar

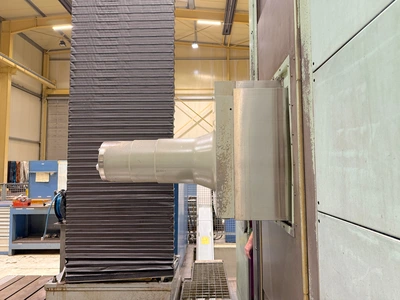

Notes: ø150x700 mm
[EXTRA]
Floor space: 15000x7900x5600 mm
Tooling included: pickup 4 posizioni, testa TUPC millesimale, TESTA TAM ortogonale ISO50, prolunga mandrino 700mm ø150mm, alta pressione, idrostatica, piani di lavoro NON inclusi, tavola girevole NON inclusa
High Pressure: 20 bar
Filtration unit: filtro a carta
Chip conveyor: si
