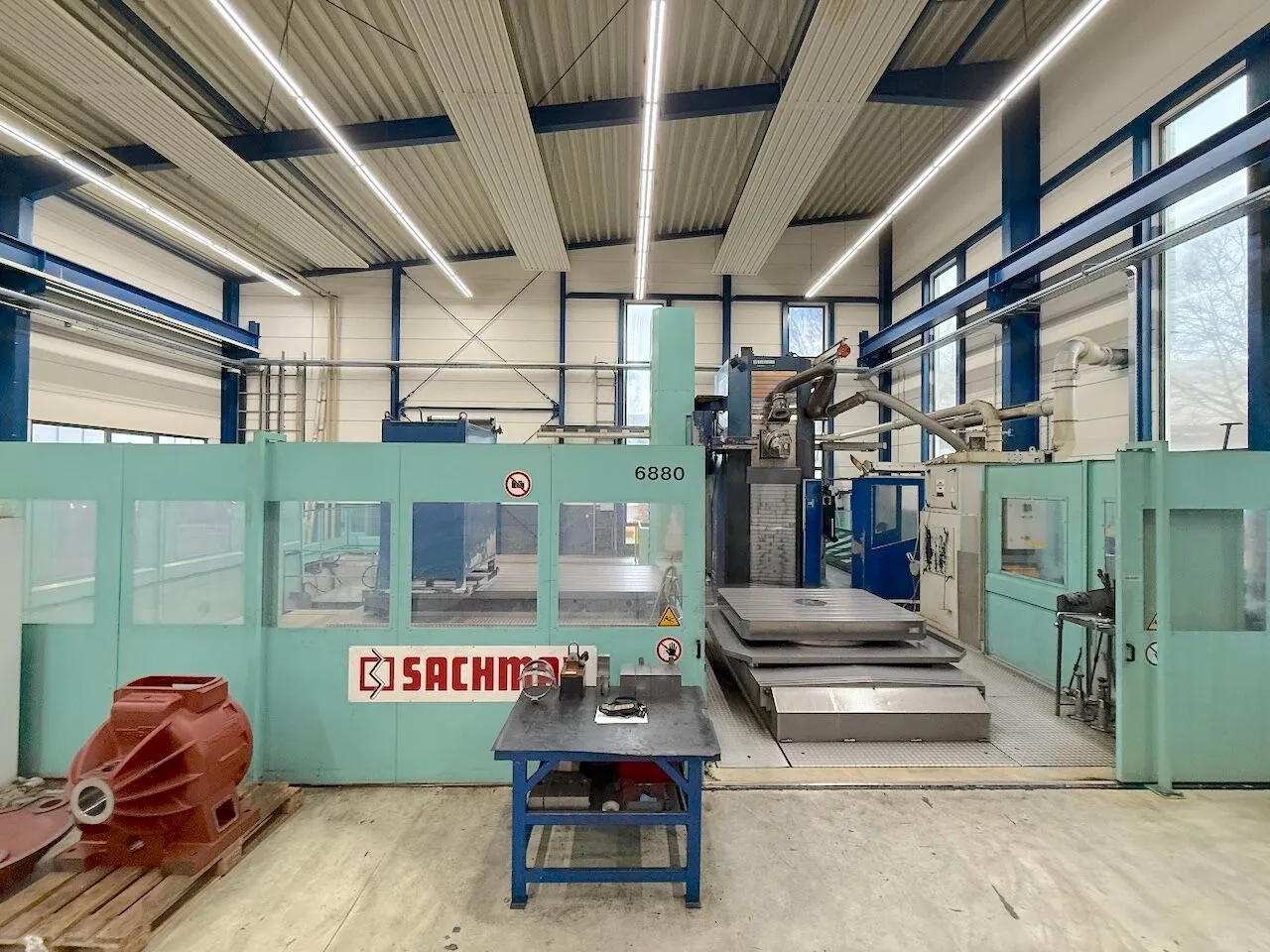

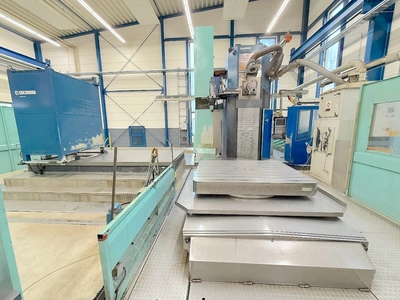

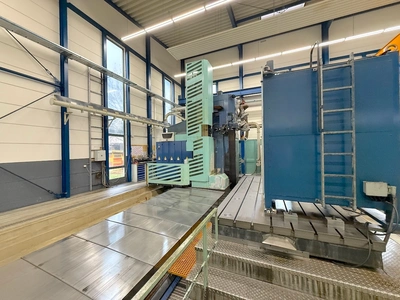

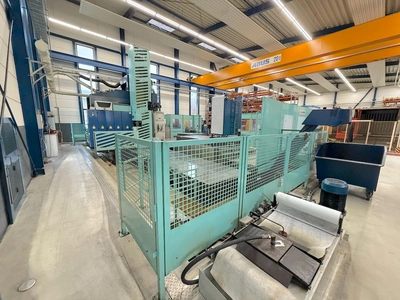

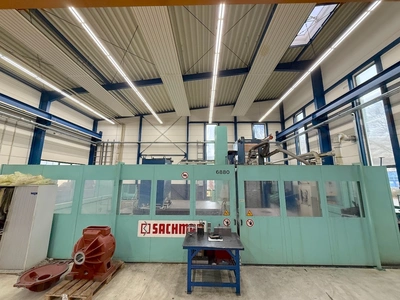

USED SACHMAN MP212HS

Capacity: 6000x2444x1400 mm [WORKING CAPACITY]
Longitudinal (X): 6000 mm
Vertical (Y): 2000 mm
Cross RAM (Z): 1400 mm
Table (V): 1500 mm

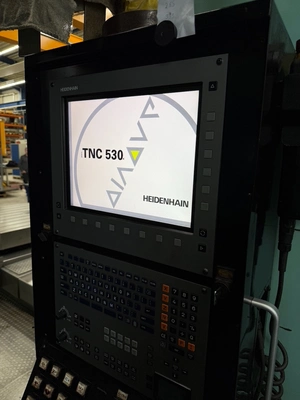

[CNC]
No
[SPINDLE]
RAM section: 500x500 mm
Spindle power: (S1/S6/S4) 37/46/56 Kw
Rotating speed: 5-5000 Rpm
Torque: (S1) 1195 Nm
Taper: ISO50
[FEEDS]
Rapid X: 30 m/min
Rapid Y: 30 m/min
Rapid Z: 30 m/min
Rapid B: 3 Rpm

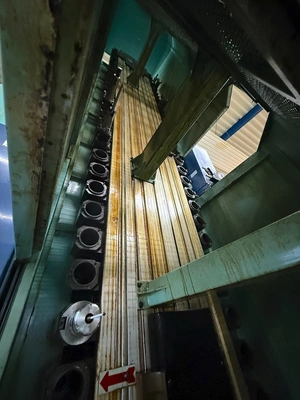

[ATC]
Positions: 80
Max tool diameter: 125 mm
Max diam with free adiacent space: 250 mm
Max tool lenght: 600 mm
Max tool weight: 35 Kg
Tool taper: ISO50
Position: oriz/vert

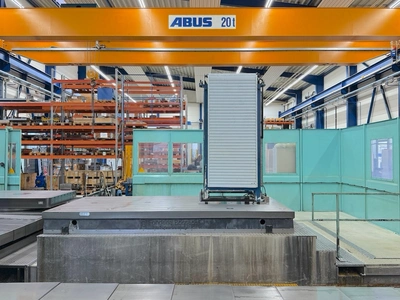

[FIXING TABLE]
Floorspace (LxWxH): 4000x200x300 mm
T slots number: 8

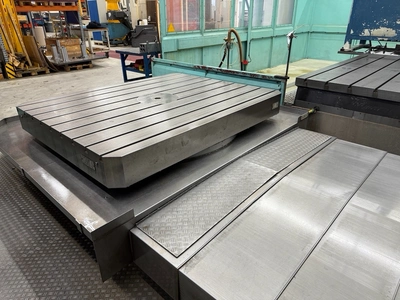

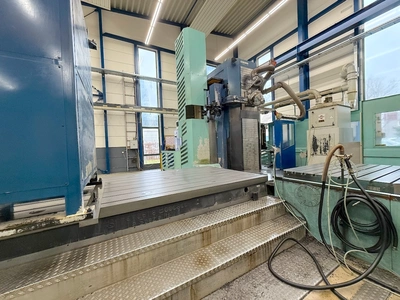

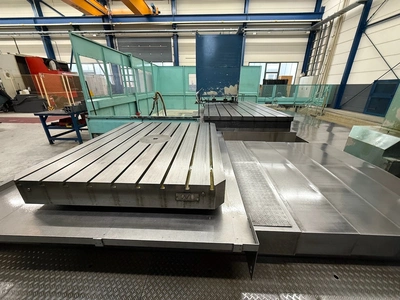

[TABLE 1]
Surface: 2000x1600 mm
Translation: 1500 mm
Accuracy (B axis): 0,001 °
Capacity: 15.000 Kg
Rotating speed: 3 Rpm o °/min

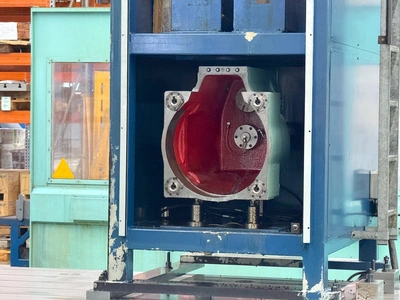

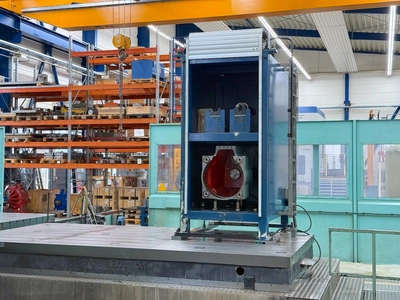

[PICK UP STATION FOR HEADS]
Positions: 3
[HEAD 1]
Type: KOSMO3
Spindle taper: ISO50- DIN69871
A axis: 0,02 °
C axis: 0,02 °
Max torque: 1195 Nm
Max speed: 5000 Rpm
Max power: 37 Kw
Coolant: CTS 40Bar
[HEAD 1]
Type: Prolunga mandrino ø165x600mm
Spindle taper: ISO50- DIN69871
Max torque: 1195 Nm
Max speed: 2000 Rpm
Coolant: Esterno
[EXTRA]
Total power supply: 100 Kw
Machine total weight: 69.000 Kg
Floor space: 14500x11000x5013 mm
High Pressure: 40Bar - 50l/min

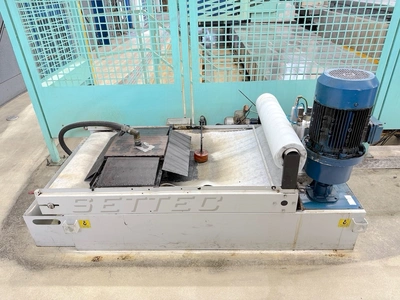

Filtration unit: 1320Lt con filtro a carta

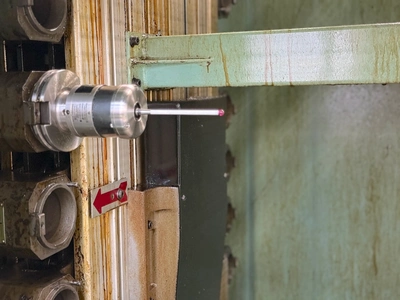

Workpiece touch probe: Renishaw MP60

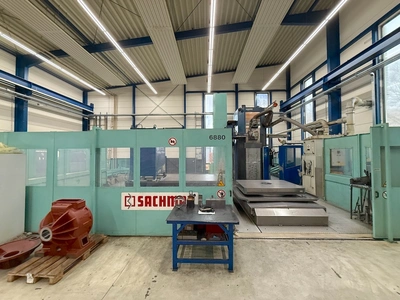

Housing: perimetrale completa

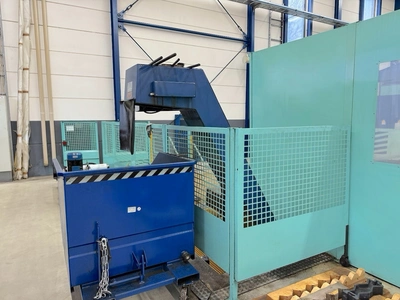

Chip conveyor: Si
Mist extractor: Si
