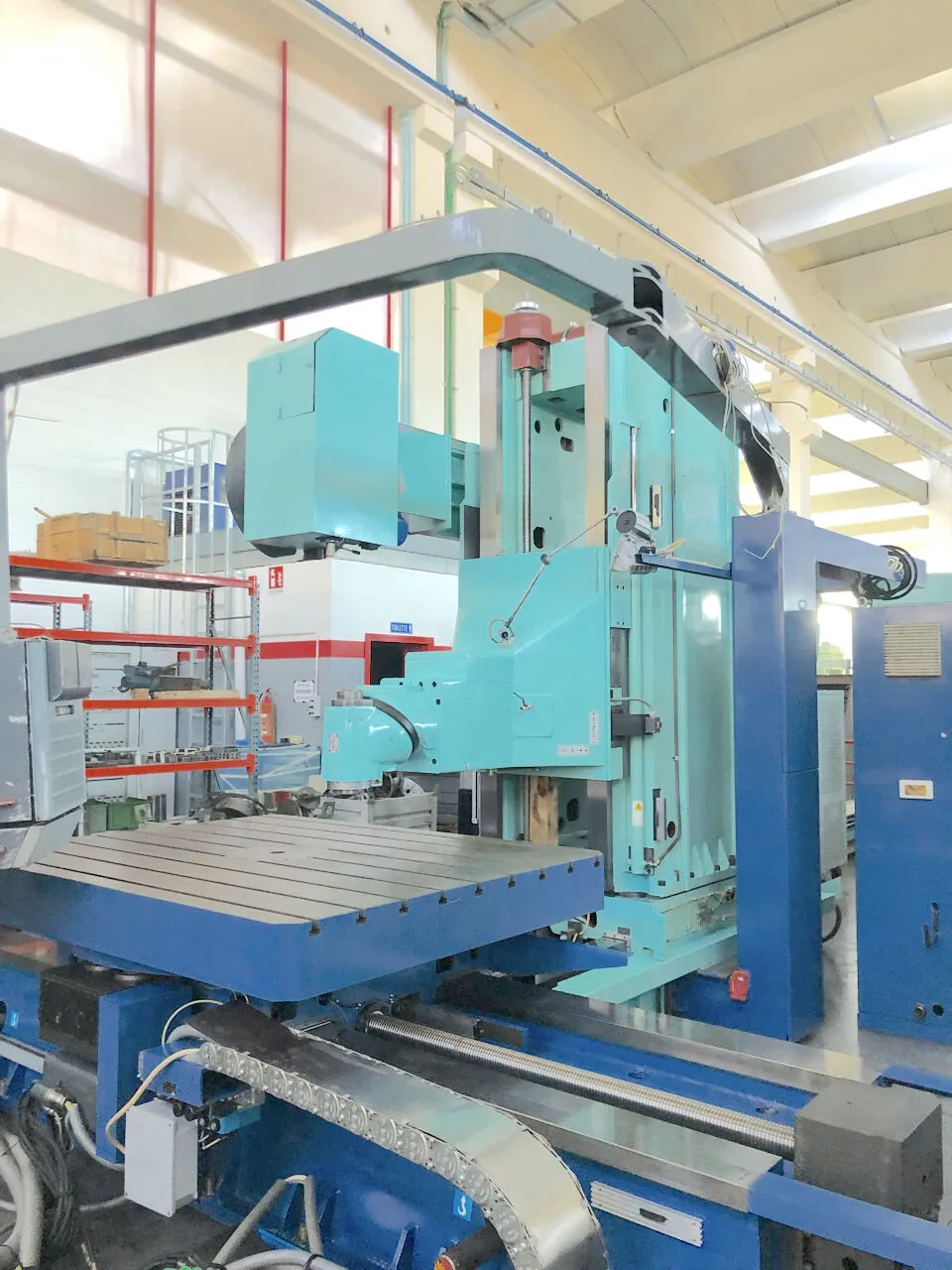

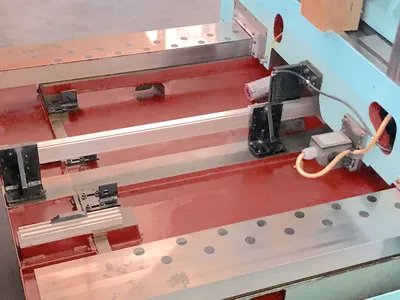

USED SACHMAN TRT22

Capacity: 2500x1500x1400 mm [WORKING CAPACITY]
Longitudinal (X): 2500 mm
Vertical (Y): 1500 mm
Cross column (Z): 1400 mm
[CNC]

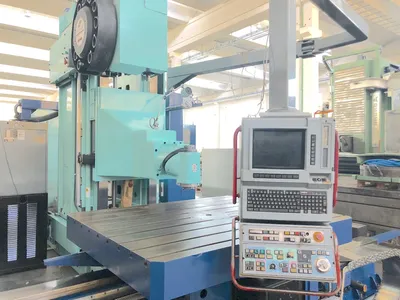

CNC: FIDIA
[SPINDLE]
Spindle power: 24 mm
Rotating speed: 4000 Rpm
Taper: ISO50

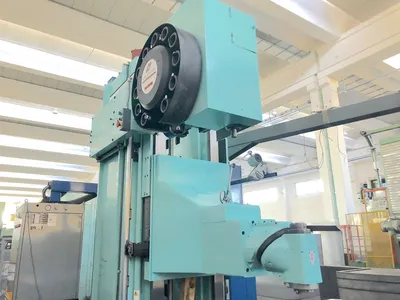

[ATC]
Positions: ATC12
Tool taper: ISO50
Max tool diameter: 130 mm
Max diam with free adiacent space: 250 mm
Max tool lenght: 250 mm
Max tool weight: 20 Kg

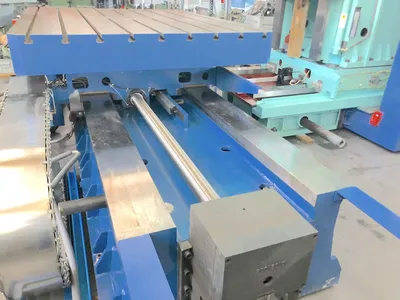

[TABLE 1]
Surface: 2000x1600 mm
Accuracy (B axis): 0,001 °
Capacity: 10.000 Kg
Rotating speed: 3 Rpm o °/min

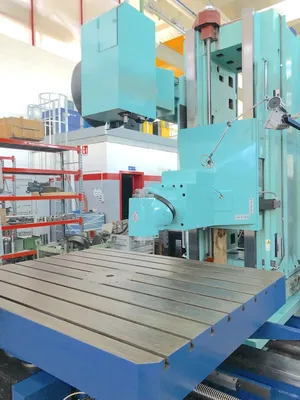

[HEAD 1]
Type: KOSMO4000
Spindle taper: ISO50
A axis: 144x2,5 °
C axis: 120x3 °
Max speed: 4000 Rpm
Max power: 24 Kw
[FEEDS]
Rapid X: 12 m/min
Rapid Y: 12 m/min
Rapid Z: 12 m/min
X: 10 m/min
Y: 10 m/min
Z: 10 m/min
Rapid B: 3 Rpm
[EXTRA]
Chip conveyor: si
Housing: protezione area di lavoro
CE Certification: Yes
Machine total weight: 24300 Kg
