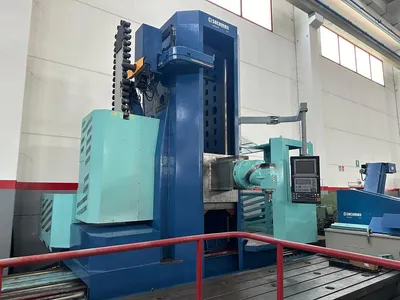

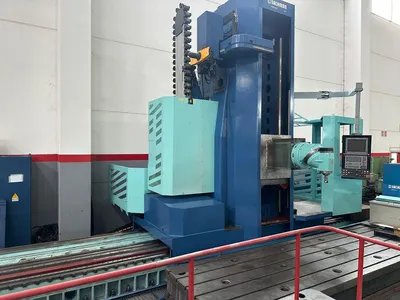

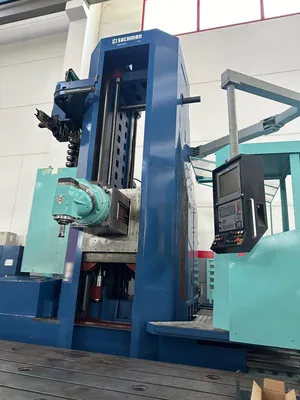

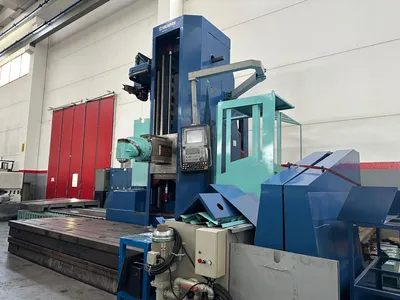

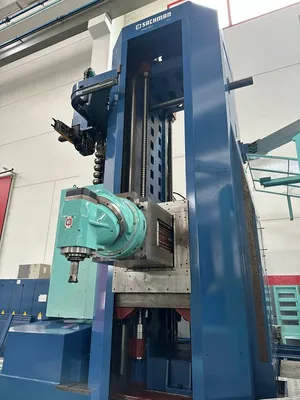

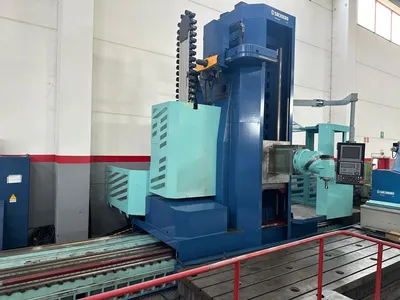

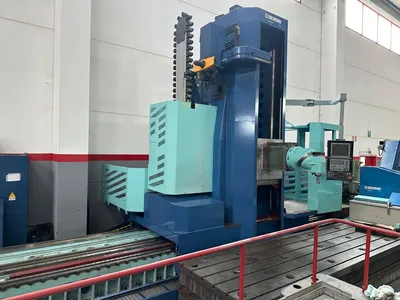

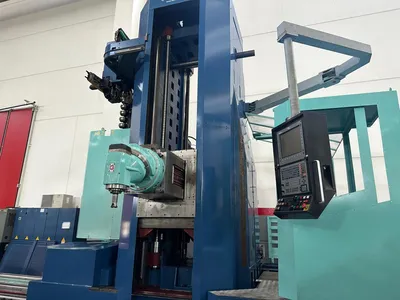

USED SACHMAN MP212HS
Specs
Capacity: 8000x2500x1400 mm [WORKING CAPACITY]
Longitudinal (X): 8000 mm
Vertical (Y): 2500 mm
Cross RAM (Z): 1400 mm
Axes support: guide a ricircolo di rulli su asse longitudinale e verticale, pattini su asse slittone
[CNC]

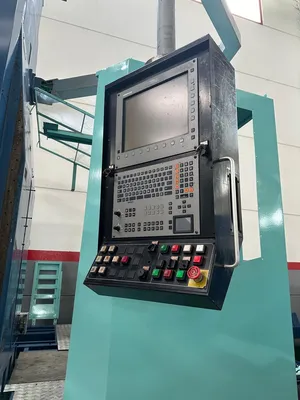

CNC: Heidenhain TNC530
Notes: Volantino HR410
[FEEDS]
Rapid X: 30 m/min
Rapid Y: 30 m/min
Rapid Z: 30 m/min
[ATC]
Positions: 60
Tool taper: ISO50
Max tool diameter: 125 mm
Max diam with free adiacent space: 220 mm
Max tool lenght: 300 mm
Max tool weight: 20 Kg

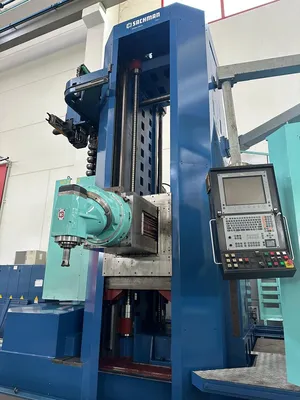

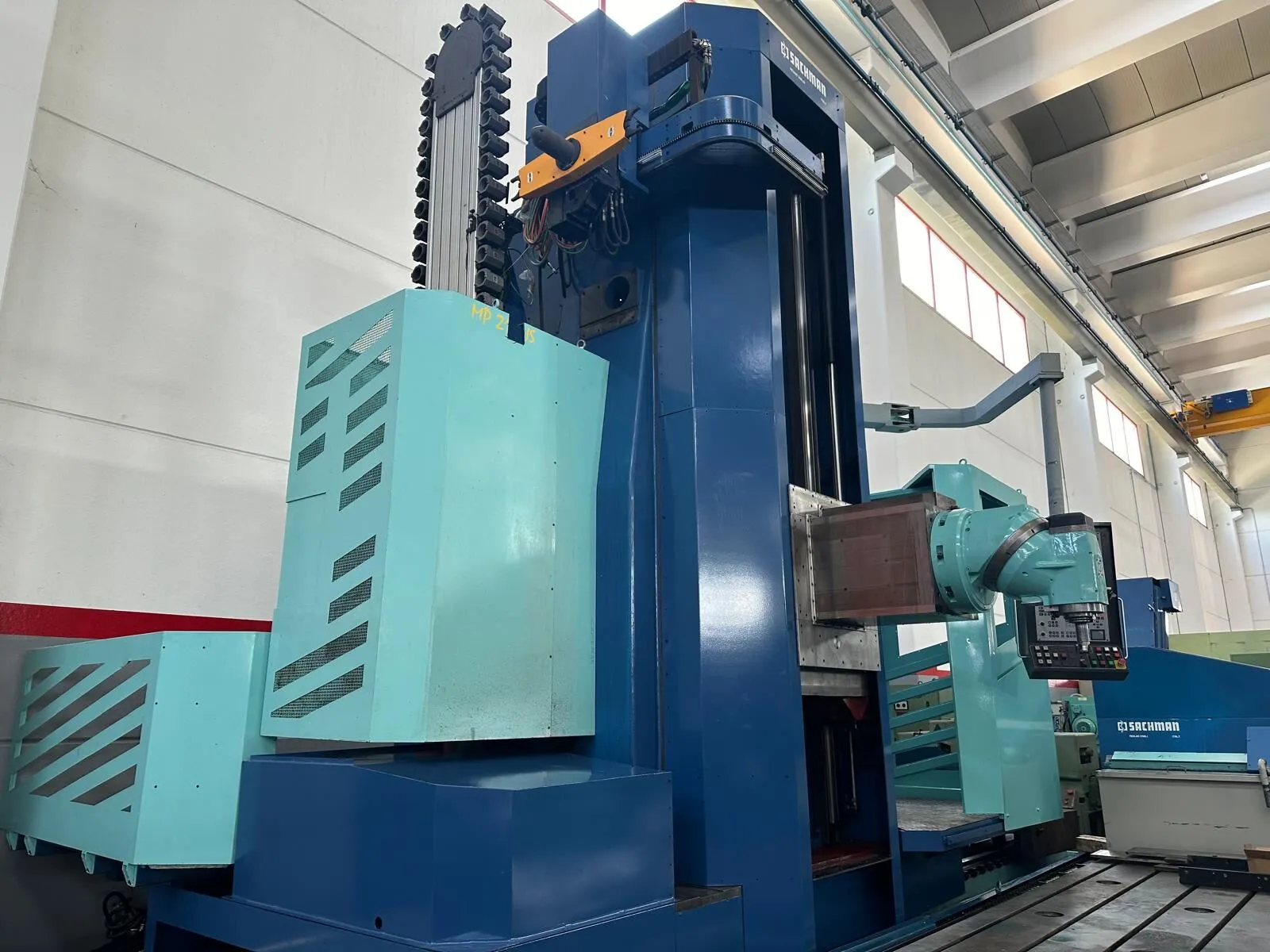

[HEAD 1]
Type: KOSMO3
Spindle taper: ISO50
A axis: 0,02 °
C axis: 0,02 °
Coolant: 15Bar CTS
Max speed: 5000 Rpm
Max power: 46 Kw
Max torque: 1453 Nm

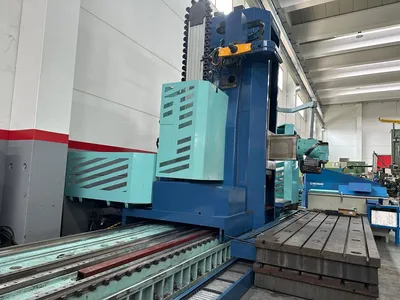

[FIXING TABLE]
Floorspace (LxWxH): 10000x1500 mm
[SPINDLE]
Spindle power: 46 mm
Rotating speed: 5000 Rpm
Torque: 1453 Nm
Taper: ISO50
[EXTRA]
Floor space: 14000x5850x4815 mm
Chip conveyor: Si
