USED PBR T35-S SNC 350X2000MM

Max swing on the bed: 720 mm28,35 in
Max swing on saddle: 425 mm16,73 in
Max working lenght: 2000 mm78,74 in
Bed width: 450 mm17,72 in
Guide-ways number: 2 mm0,08 in
Max weight between centres: 3000 Kg
Max weight on steadies: 4000 Kg
Saddle width: 750 mm29,53 in
X rapid feed: 6000 mm/min236,2200 ipm
Z rapid feed: 6000 mm/min236,2200 ipm
Max swing on saddle: 720 mm28,35 in
X stroke: 450 mm17,72 in
Max rotation speed: 0-2000 rpm
Spindle nose: Cam Lock 6”
Spindle hole: 105 mm4,13 in
Internal bearing diameter: 146/130 mm5,75/5,12 in
Max power: 17 Kw
Max torque: 2440 Nm
Gearbox: 67-31/430-2000
Quill diameter: 115 mm4,53 in
Quill stroke: 250 mm9,84 in
Taper: CM 5
Positions number: 1-Multifix
Machine total weight: 6200 Kg
Floor space: 4700x2250x1815 mm185,04x88,58x71,46 in

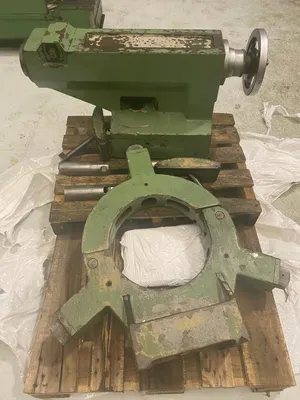

Open steadies: 1
Closed steadies: 1
Availability: Pronta
