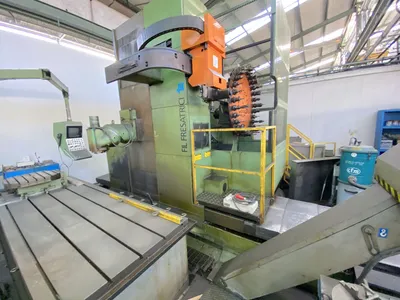

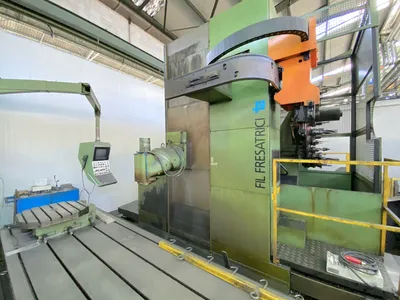

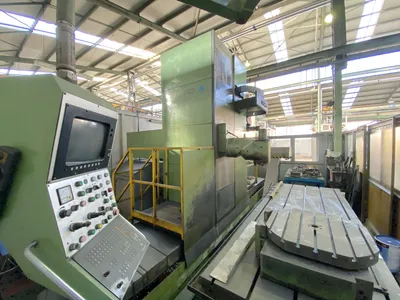

USED FIL FBM300

Capacity: 3000x1500x1000 mm [WORKING CAPACITY]
Longitudinal (X): 3000 mm
Vertical (Y): 1500 mm
Cross RAM (Z): 1000 mm
[CNC]

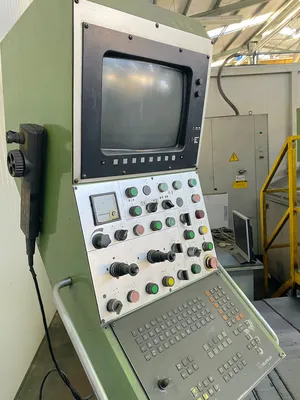

CNC: Heidenhain TNC426CA
Measuring system: Righe Ottiche

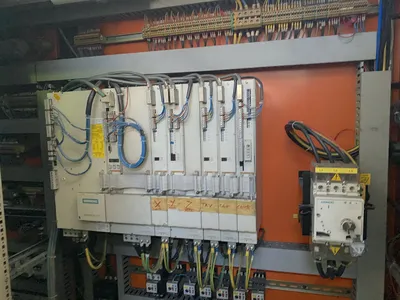

Drives: Siemens
Notes: Volantino Heidenhain HR332 remoto, predisposizione cicli per lavoro in pendolare
[SPINDLE]
Spindle power: 33 mm
Rotating speed: 3000 Rpm
Taper: ISO 50
Gearbox: ZF 10-200Rpm / 200-3000Rpm
[FEEDS]
Rapid X: 10 m/min
X: 5-10 m/min
Y: 5-10 m/min
Z: 5-10 m/min
Rapid Y: 10 m/min
Rapid Z: 10 m/min

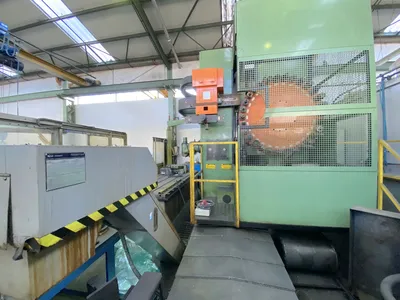

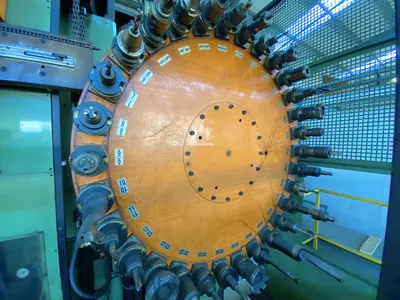

[ATC]
Positions: 30
Max tool diameter: 120 mm
Max tool lenght: 500 mm
Max tool weight: 25 Kg
Position: Orizzontale/Verticale
Max diam with free adiacent space: 400 mm
Tool taper: ISO50 DIN69871

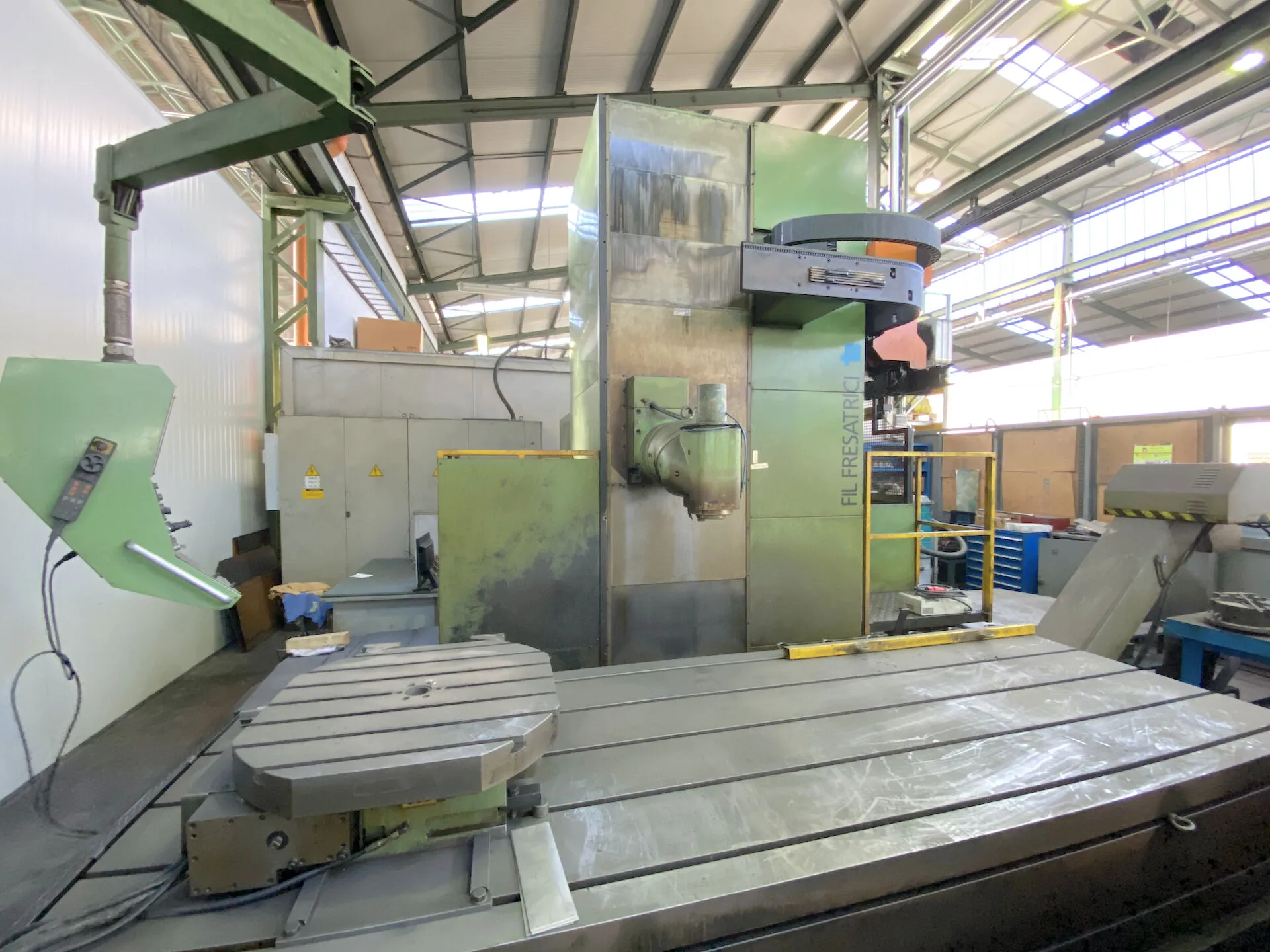

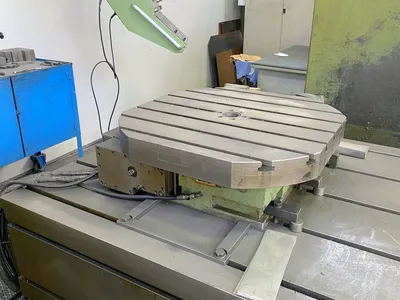

[TABLE 1]
Surface: 700x700xh278 mm
Capacity: 3500 Kg
Accuracy (B axis): 360000 °
Rotating speed: 10 Rpm o °/min
Notes: ENCODER HAIDENHAIN,POSSIBILITA’ MONTAGGIO VERTICALE/ORIZZONTALEMOTORE SIEMENS,ROTAZIONE CONTROLLATA CNC,5 CAVE A T 18MM H8
Available upon request: Yes

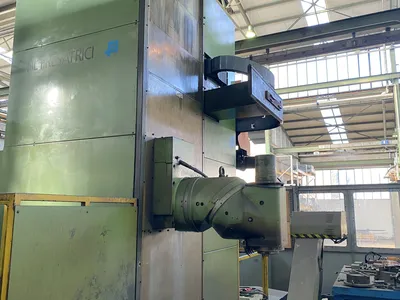

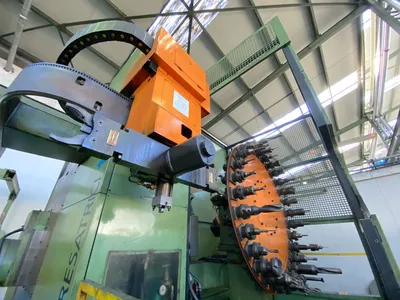

[HEAD 1]
Spindle taper: ISO 50
Type: BIROTATIVA AUTOMATICA
A axis: 2,5 °
C axis: 2,5 °
Max speed: 3000 Rpm
Max power: 33 Kw
Coolant: INTERNO 30lt/min
[FIXING TABLE]
Floorspace (LxWxH): 3500x1200x800 mm
Capacity: 25000 Kg/mq
T slots number: 5x22mm H8
[EXTRA]
Tooling included: Tavola girevole controllata in continuo, volantino remotato CNC, Carenatura perimetrale
High Pressure: Si, 30lt/min, vasca da 300litri
Filtration unit: Si
Housing: SI
Chip conveyor: SI
Availability: PRONTA
CE Certification: Yes
Maintenance & Use books: Yes
Electrical drawings: Yes
Workpiece touch probe: Heidenhain TS220
