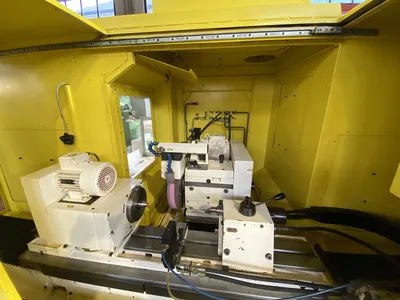

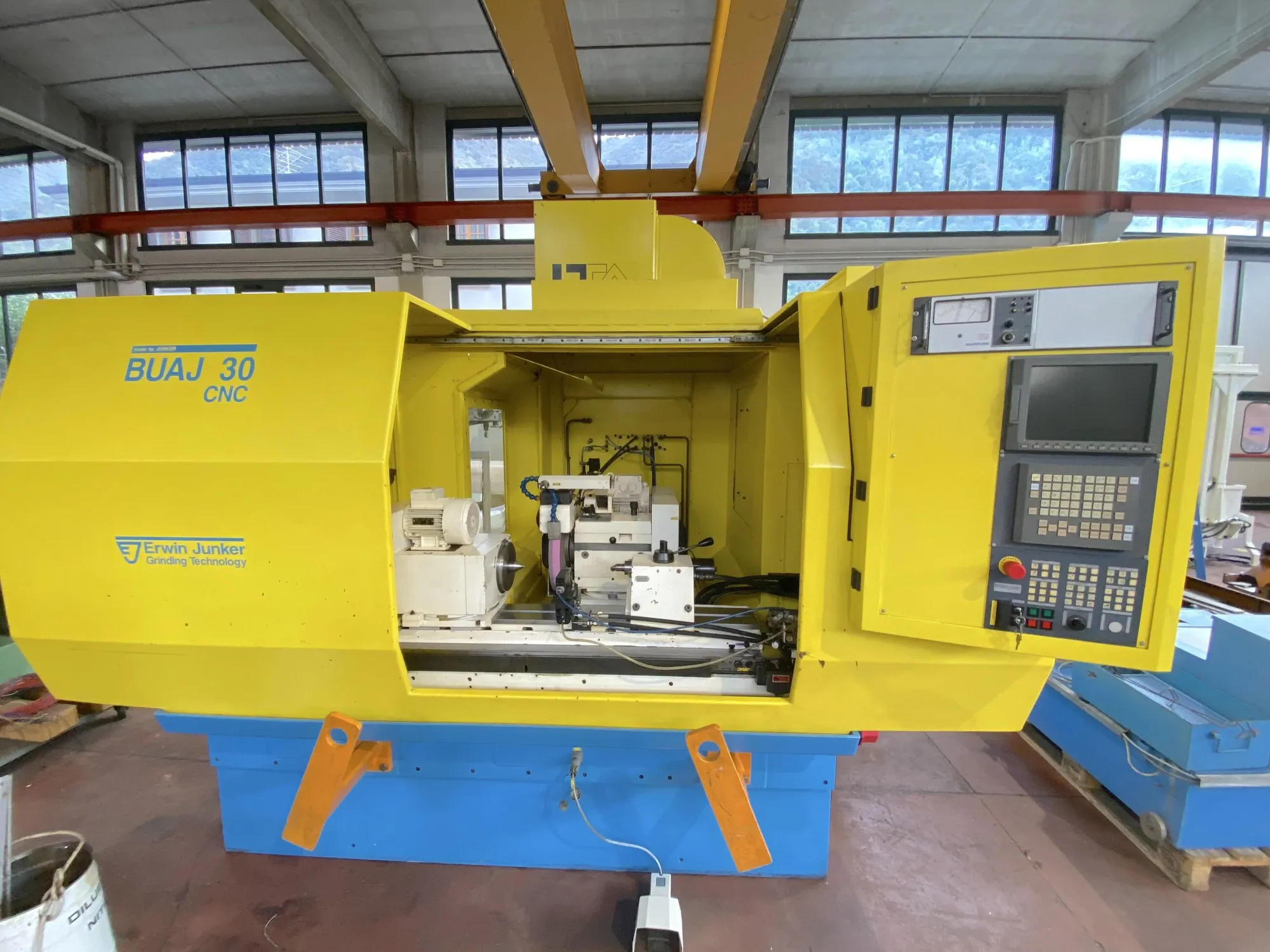

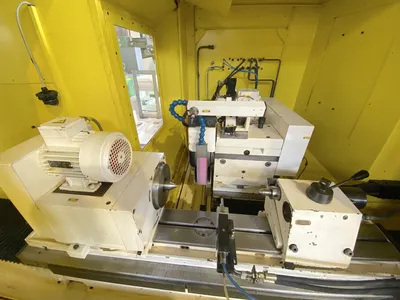

USED JUNKER BUAJ 30 CNC

Capacity: ø300x800 mm [WORKING CAPACITY]
Centres distance: 800 mm
Centres height: 150 mm
Max grinding diameter: 300 mm
Max grinding lenght: 800 mm
Longitudinal (Z): 756 mm
[TABLE]
Max workpiece weight: 120 Kg
Cross speed: 0 - 7,5 mm/min
Stroke: 756 mm
Tilt: +/- 8,30 °

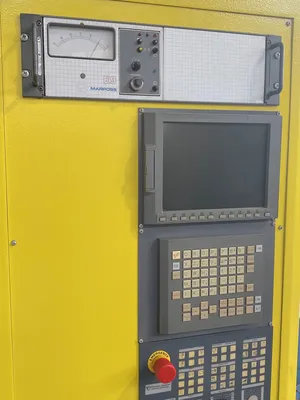

[CNC]
CNC: FANUC 210i

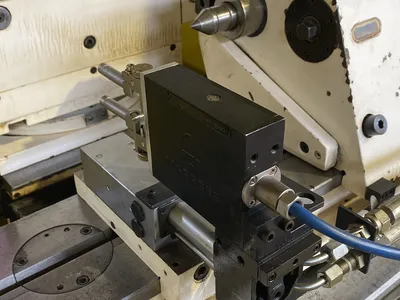

Measuring system: MARPOSS E9
Drives: FANUC

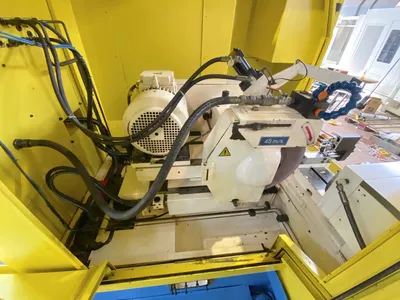

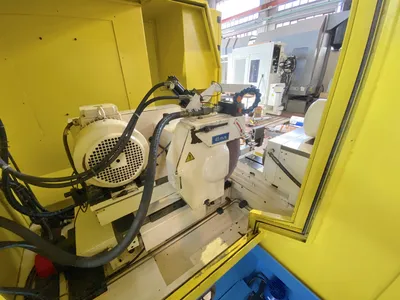

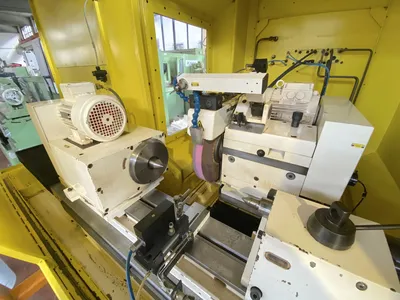

[WHEELHEAD]
External spindle power: 7,5 Kw
External spindle speed: 300 Rpm
Accuracy (B axis): +45/-15 °
[LEFT WHEEL]
Wheel band thickness: 63 mm
Max wheel diameter: 400 mm
Hole diameter: 127 mm
[WORKPIECE HEAD]
Rotating speed: 22/313 - 300/750 Rpm
Tilt: 90 °
Taper: MK4

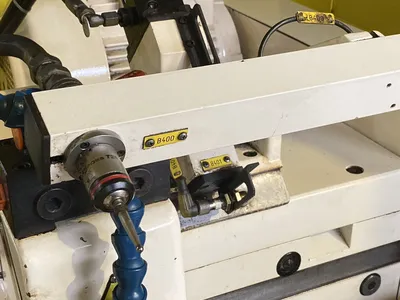

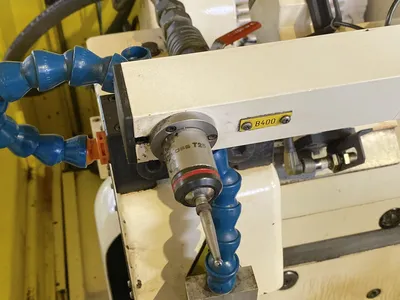

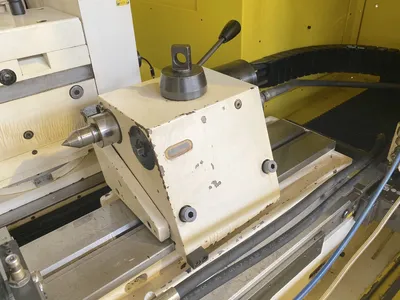

[TAILSTOCK]
Quill stroke: 30 mm
Taper: MK4
[EXTRA]
Machine total weight: 2800 Kg
Floor space: 300X1850X1800 mm
Tooling included: Diamantatore
Maintenance & Use books: Yes

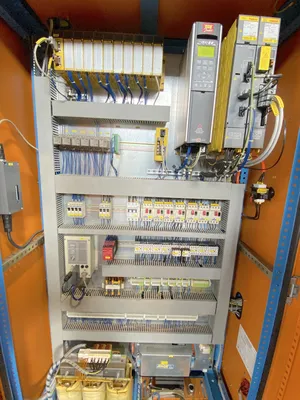

Electrical drawings: Yes
CE Certification: Yes

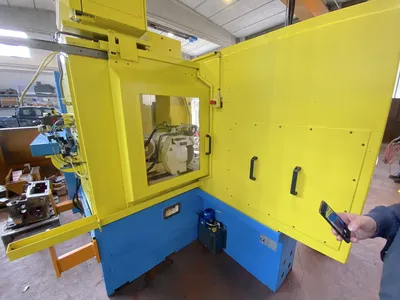

Housing: COMPLETA
Mist extractor: SI
Availability: PRONTA
Available in stock: SI
Filtration unit: filtro a carta 250lt.
