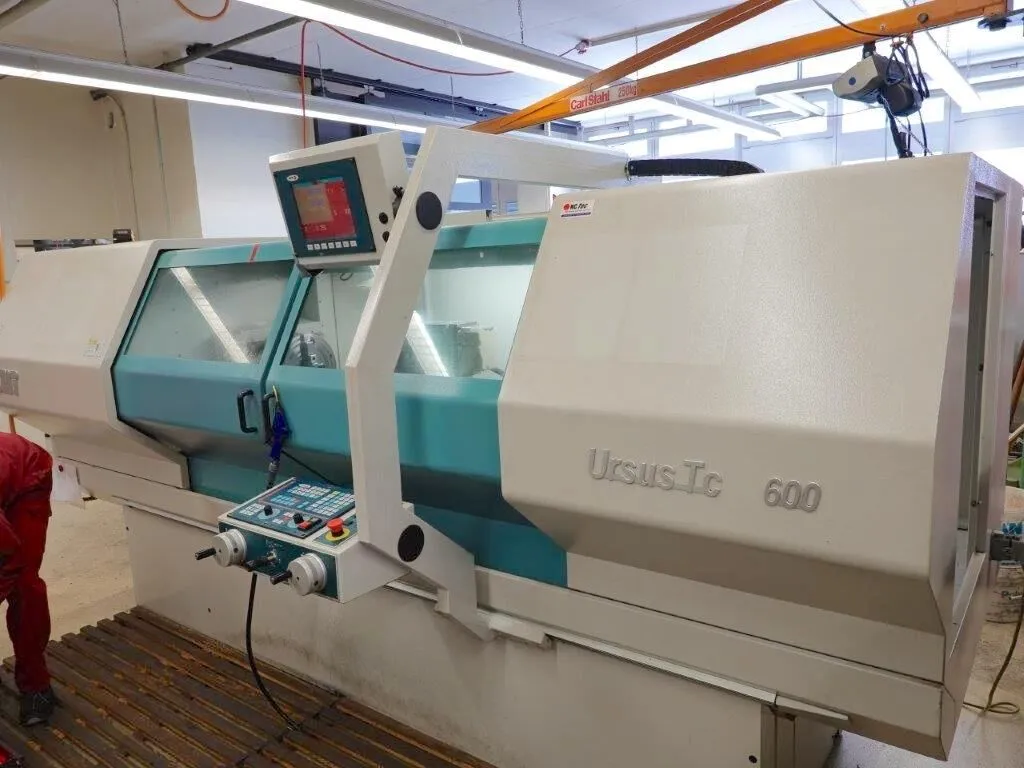

USED CMT URSUS TC 600

Capacity: ø600x1500 mm
[WORKING CAPACITY]
Max bar working diameter: 105 mm
Max swing on the bed: 600 mm
Max swing on saddle: 365 mm
Max working lenght: 1500 mm
[CNC]

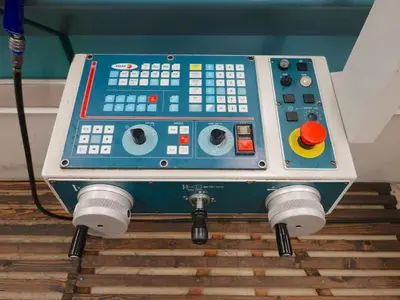

CNC: FAGOR 8055
[SADDLE]
X rapid feed: 5000 mm/min
Z rapid feed: 5000 mm/min
[MAIN SPINDLE]
Max rotation speed: 1800 rpm
Spindle nose: CL8”
Spindle hole: 105 mm
Max power: 9/13 Kw
Gearbox: SI
[TAILSTOCK]
Quill stroke: 220 mm
Quill diameter: 68 mm
Taper: CM5
[TURRET]
Positions number: 8
[EXTRA]
Total power supply: 13 Kw
Closed steadies: 1
Autocentering chuck: Forkhardt con aggancio rapido
CE Certification: Yes
Electrical drawings: Yes
Maintenance & Use books: Yes
