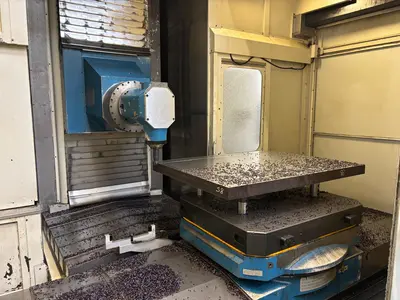

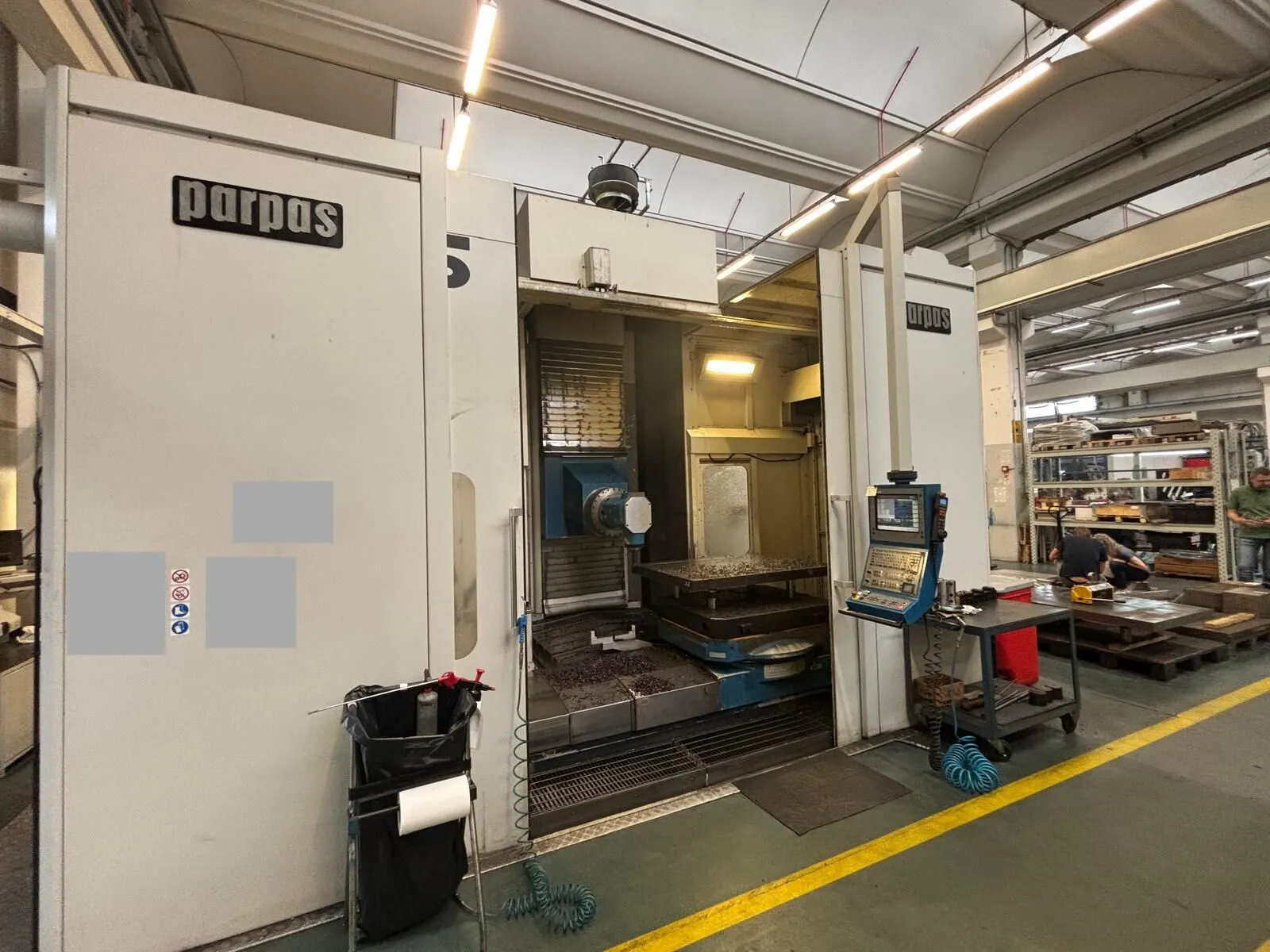

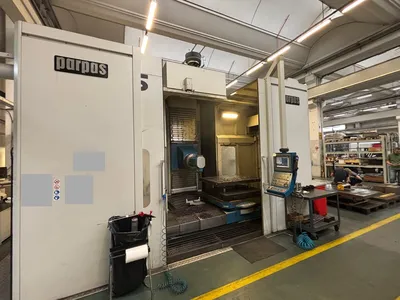

USED PARPAS THS120X

Longitudinal (X): 2500 mm98,43 in
Vertical (Y): 1600 mm62,99 in
Cross column (Z): 1250 mm49,21 in
Measuring system: Righe ottiche Heidenhain LC183
Drives: SIEMENS

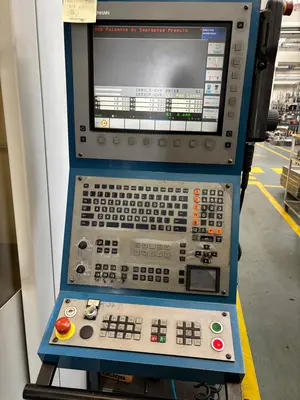

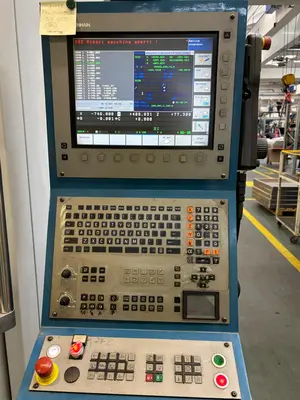

CNC: Heidenhain iTNC530
Spindle power: 30 Kw
Rotating speed: 6-5000 Rpm
Taper: ISO50 DIN69871
Rapid X: 30 m/min1.181,10 ipm
Rapid Y: 30 m/min1.181,10 ipm
Rapid Z: 30 m/min1.181,10 ipm

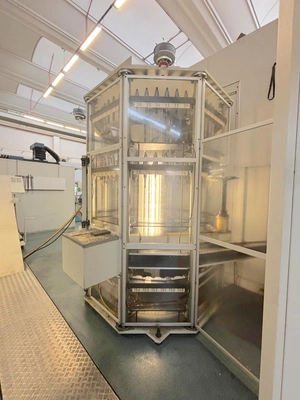

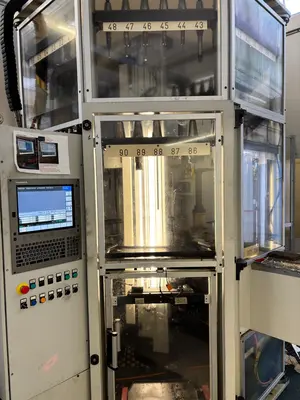

Positions: 160 (90 ISO50 + 70 HSK63)
Max tool diameter: 110 mm4,33 in
Max diam with free adiacent space: 180 mm7,09 in
Max tool lenght: ISO50 700mm / HSK63 350 mmISO1,97 27,56mm / HSK2,48 13,78 in
Max tool weight: 20 Kg

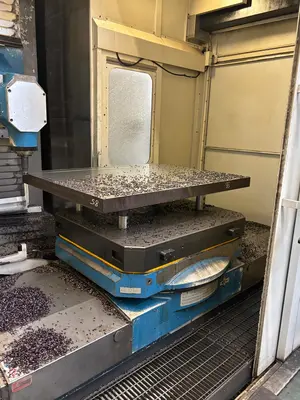

Surface: 1200x100 mm47,24x3,94 in
Accuracy (B axis): 0,001 °
Capacity: 5000 Kg
Support: MOTORE TORQUE
Type: TB180FULL
Spindle taper: ISO50
C axis: 0,001 °
Max speed: 5000 Rpm
Max power: 30 Kw
Notes: posizionamento motore TORQUE
