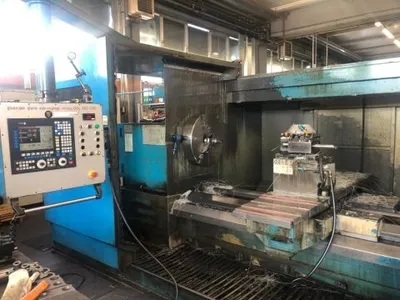

USED GIANA GGL650 CNC

Capacity: ø1240x2000 mm
[FLAT BED]
Bed width: 650 mm
Guide-ways number: 2
[WORKING CAPACITY]
Max bar working diameter: 155
Max diameter on bed: 1240 mm
Max diameter on cross-slide: 850 mm
Max working lenght: 2000 mm
Bed width: 650 mm
Guide-ways number: 2 mm
Max weight between centres: 10.000 Kg
[CNC]
CNC: FAGOR 8055
[MAIN SPINDLE]
Max rotation speed: 1000 rpm
Spindle nose: ASA11/15”
Spindle hole: 155 mm
Max torque: 10000 Nm
Max power: 40/60 Kw
Chuck diameter: 800 mm
[TAILSTOCK]
Quill diameter: 155 mm
Quill stroke: 300 mm
Taper: CM6
[TURRET 2]
Positions number: 4
[EXTRA]
Chip conveyor: 2
Platform: ø800mm
Closed steadies: 1x ø650mm, 1x ø390mm
Protections: si
