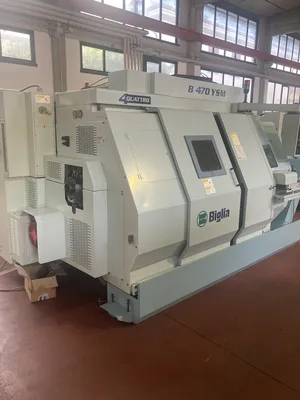

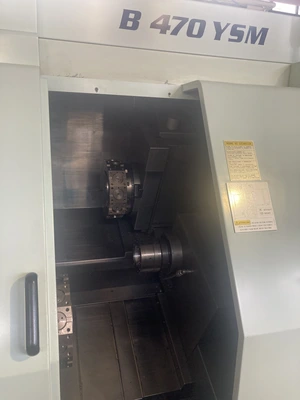

USED BIGLIA B470YSM ASA8"

Max bar working diameter: 80
Max turning diameter: 240 mm9,45 in
Max working lenght: 250 mm9,84 in

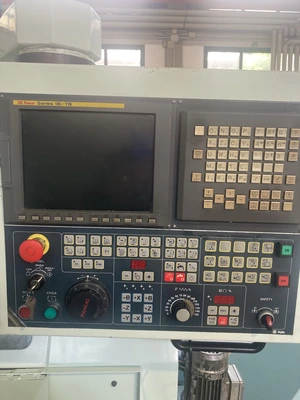

CNC: Fanuc 18i-TB
Max rotation speed: 3200 rpm
Spindle nose: ASA8”
Spindle hole: 92 mm3,62 in
Internal bearing diameter: 130 mm5,12 in
Max power: 26 Kw
Accuracy (C axis): 0,001 °
C axis speed: 80 Rpm
Max rotation speed: 4000 rpm
Spindle nose: ASA5”
Spindle hole: 55 (45 utile) mm2,17 (1,77 utile) in
Internal bearing diameter: 80 mm3,15 in
Max power: 11 Kw
Accuracy (C axis): 0,001 °
Automatic B axis positioning: 420 mm16,54 in
Rapid feed B: 30 m/min1.181,10 ipm
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 3,7 Kw
Axis stroke X2: 160 mm6,30 in
Rapid feed X2: 12 m/min472,44 ipm
Axis stroke Z2: 240 mm9,45 in
Rapid feed Z2: 20 m/min787,40 ipm

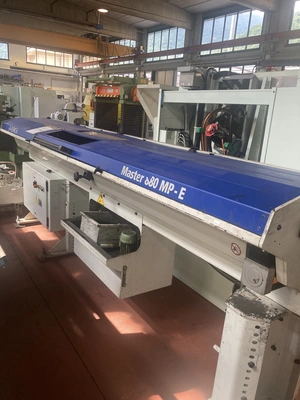

Bar feeder: IEMCA MASTER 880MP
Floor space: 4107x2128x2204 mm161,69x83,78x86,77 in
Machine total weight: 7200 Kg
Chip conveyor: si
Workpiece espulsion robot: si

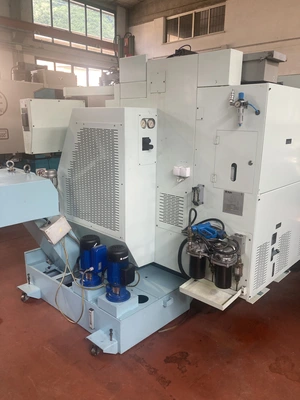

Coolant pump: si
