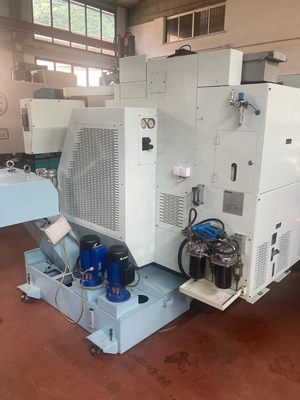

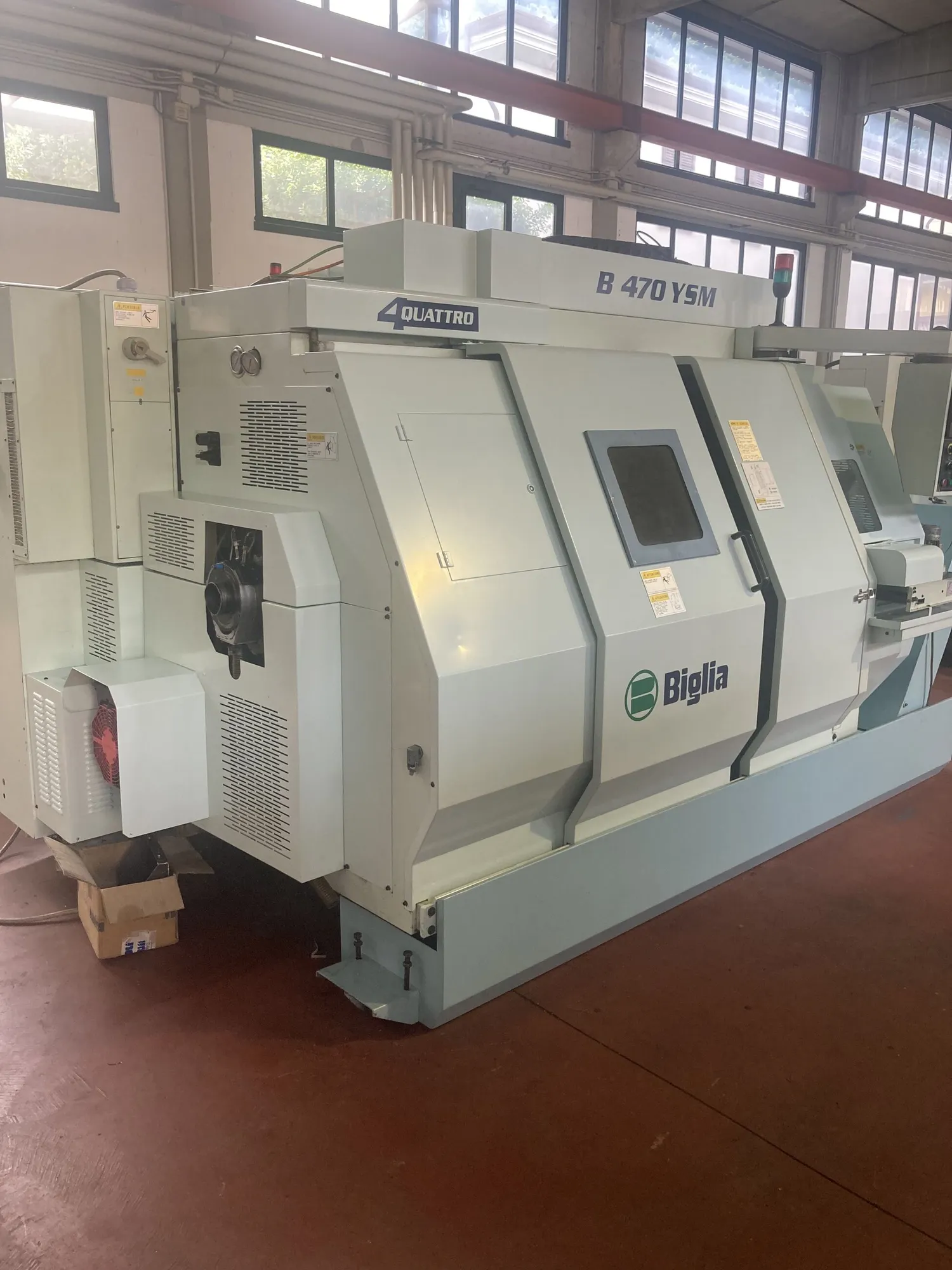

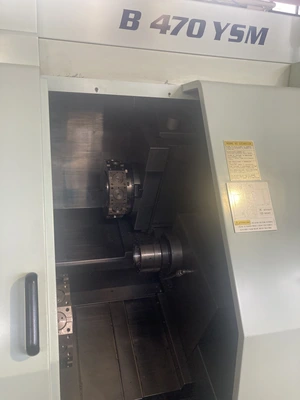

USED BIGLIA B470YSM ASA8"

Capacity: ø80/240x250 mm
[WORKING CAPACITY]
Max bar working diameter: 80
Max turning diameter: 240 mm
Max working lenght: 250 mm
[CNC]

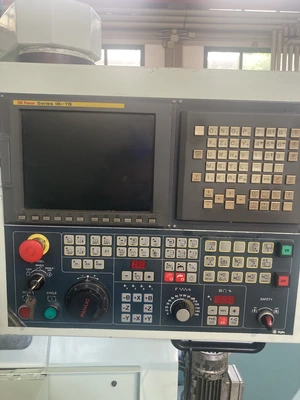

CNC: Fanuc 18i-TB
[MAIN SPINDLE]
Max rotation speed: 3200 rpm
Spindle nose: ASA8”
Spindle hole: 92 mm
Internal bearing diameter: 130 mm
Max power: 26 Kw
Accuracy (C axis): 0,001 °
C axis speed: 80 Rpm
[SUBSPINDLE]
Max rotation speed: 4000 rpm
Spindle nose: ASA5”
Spindle hole: 55 (45 utile) mm
Internal bearing diameter: 80 mm
Max power: 11 Kw
Accuracy (C axis): 0,001 °
Automatic B axis positioning: 420 mm
Rapid feed B: 30 m/min
[TURRET 2]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 4000 rpm
Driven tools power: 3,7 Kw
Axis stroke X2: 160 mm
Rapid feed X2: 12 m/min
Axis stroke Z2: 240 mm
Rapid feed Z2: 20 m/min
[EXTRA]

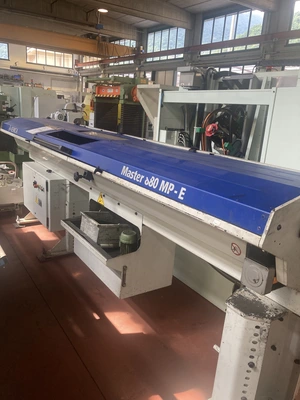

Bar feeder: IEMCA MASTER 880MP
Floor space: 4107x2128x2204 mm
Machine total weight: 7200 Kg
Workpieces conveyor belt: Yes
Chip conveyor: si
Workpiece espulsion robot: si
Coolant pump: si
