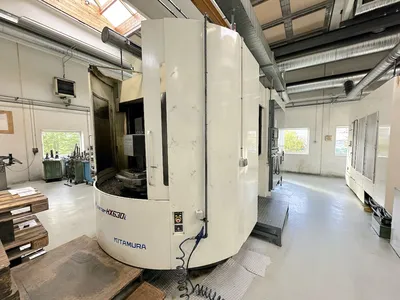

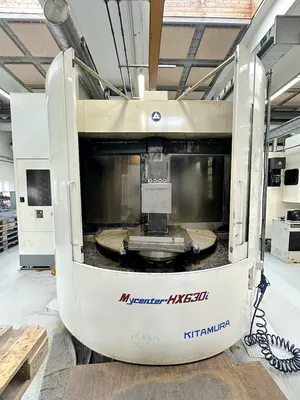

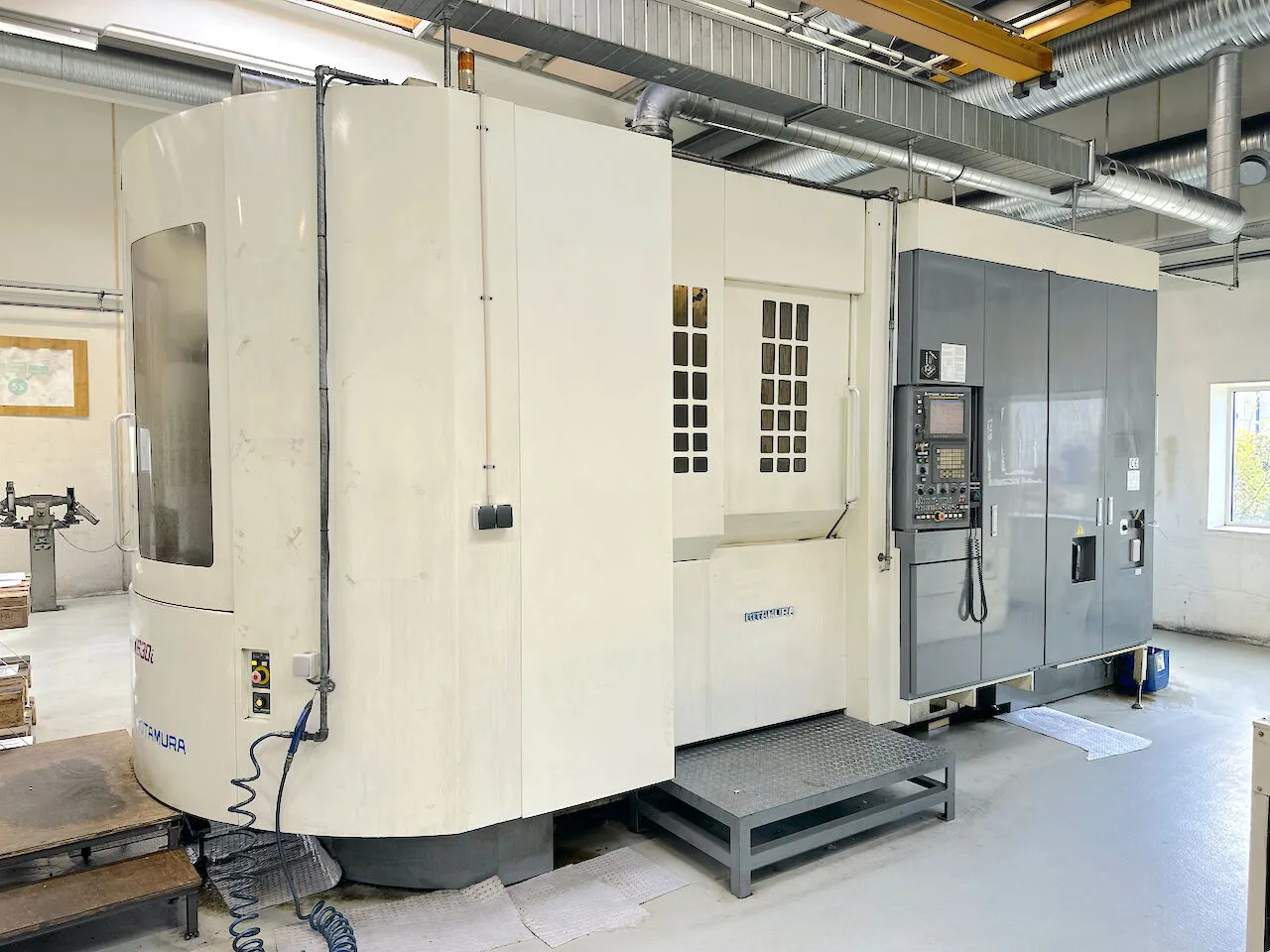

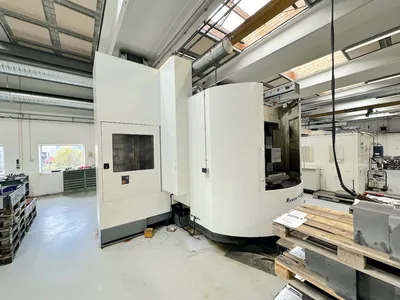

USED KITAMURA HX630I

Capacity: 1000x800x820mm / ø1000x1100 mm
[WORKING CAPACITY]
Longitudinal (X): 1000 mm
Vertical (Z): 820 mm
Cross (Y): 800 mm
Table (B): 0,001 °
Max workpiece size (LxWxH): ø1000x1100 mm
[CNC]

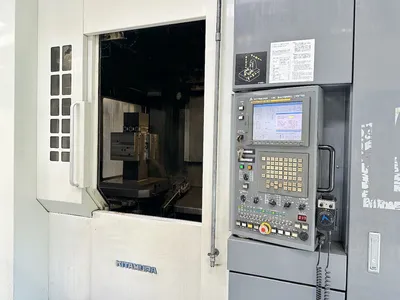

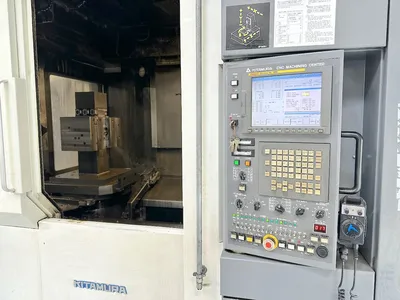

CNC: Fanuc 16i-MB
[SPINDLE]
Spindle power: 26 Kw
Gearbox: 2 step
Rotating speed: 35-12000 Rpm
Torque: 380 Nm
Taper: ISO50
Internal coolant: 15Bar Bar
[FEEDS]
Rapid X: 50 m/min
Rapid Y: 50 m/min
Rapid Z: 50 m/min
Rapid B: 20 Rpm
X: 50 m/min
Y: 50 m/min
Z: 50 m/min

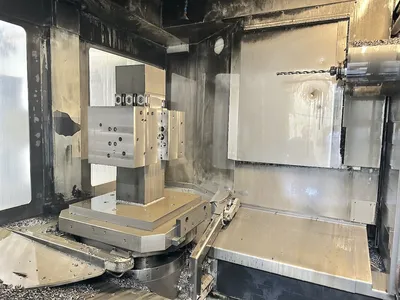

[TABLE]
Floorspace (LxWxH): 630x630 mm
Capacity: 1200 Kg
Accuracy (B axis): 0,001 °
[AUTO PALLET CHANGER (APC)]
Pallet number: 2
Loading station: 1
Pallet surface: 630x630 mm
Rotating speed: 20 Rpm
Capacity: 1200 Kg
Pallet changing time: 6 sec

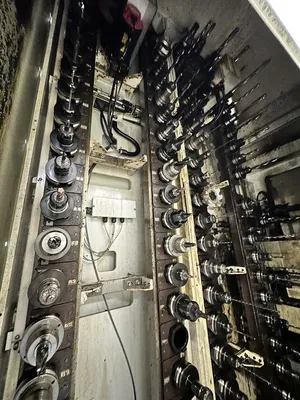

[ATC]
Positions: 100
Max tool diameter: 125 mm
Max diam with free adiacent space: 200 mm
Max tool lenght: 450 mm
Max tool weight: 20 Kg
Tool taper: BT50
Tool changing time: 1,5 sec.
[EXTRA]
Machine total weight: ≈20500 Kg
Floor space: ≈3220x6512x3499 mm
High Pressure: CTS
Tool presetter: SI
Maintenance & Use books: Yes
Electrical drawings: Yes
