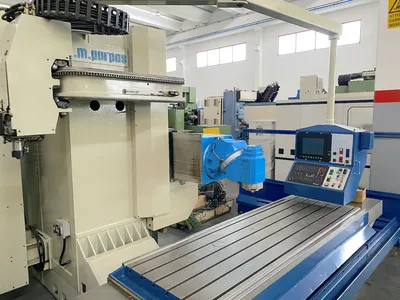

USED PARPAS SL90/2000

Max tool lenght: 350 mm13,78 in
Max diam with free adiacent space: 250 mm9,84 in
Max tool diameter: 125 mm4,92 in
Positions: 40
Longitudinal (X): 2000 mm78,74 in
Vertical (Y): 1000 mm39,37 in
Cross RAM (Z): 920 mm36,22 in
CNC: Heidenhain TNC425
Spindle power: 22/33 Kw
Rotating speed: 4000 Rpm
Taper: ISO 50
Rapid X: 10 m/min393,70 ipm
Rapid Y: 10 m/min393,70 ipm
Rapid Z: 10 m/min393,70 ipm
Surface: 2400x820 mm94,49x32,28 in
Capacity: 7.000 Kg
Accuracy (B axis): 360.000 °
Type: birotativa automatica
Spindle taper: ISO50
A axis: 2x180 °
C axis: 144x2,5 °
Max speed: 4000 Rpm
Max power: 33 Kw
Notes: lubrificata ad olio
Availability: pronta
Filtration unit: coolant tank with paper filter
Workpiece touch probe: si
Chip conveyor: 2
Floor space: 5800x3900x2740 mm228,35x153,54x107,87 in
Machine total weight: 15000 Kg
Housing: protezioni frontali scorrevoli
Chiller: si
Available in stock: SI
Tooling included: volantino remotato
