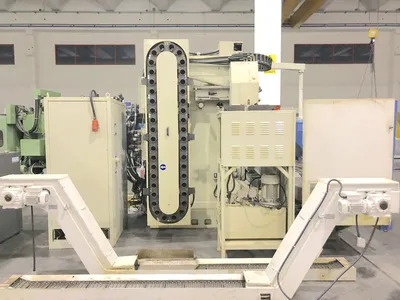

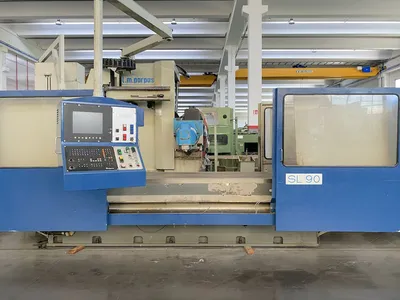

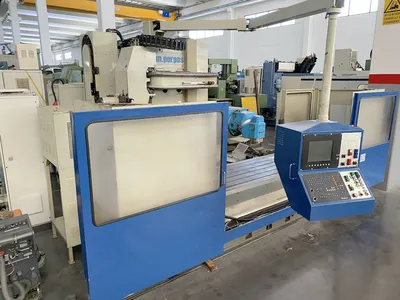

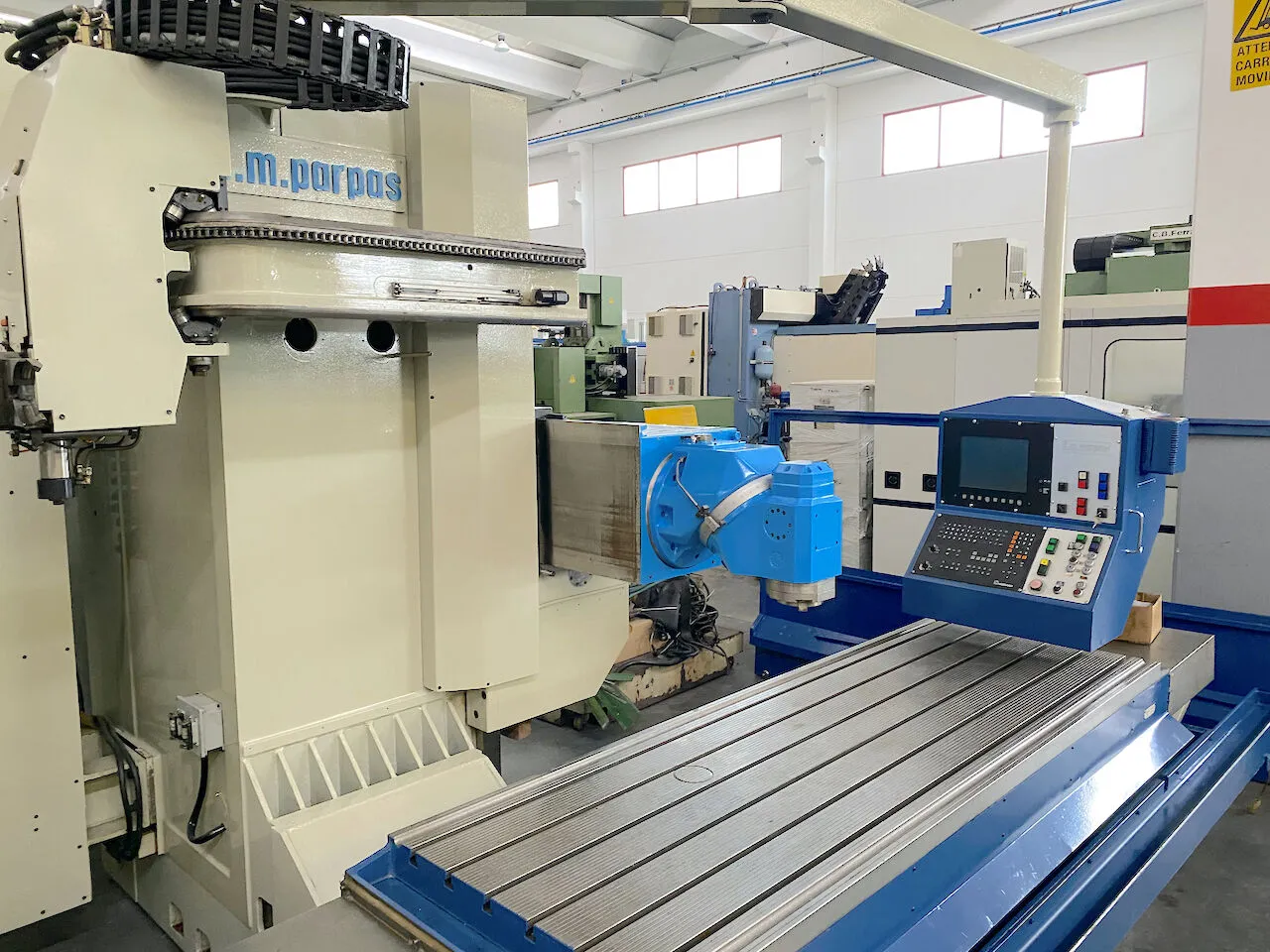

USED PARPAS SL90/2000

Capacity: 2000x1000x920 mm
[ATC]
Max tool lenght: 350 mm
Max diam with free adiacent space: 250 mm
Max tool diameter: 125 mm
Positions: 40
[WORKING CAPACITY]
Longitudinal (X): 2000 mm
Vertical (Y): 1000 mm
Cross RAM (Z): 920 mm
[CNC]

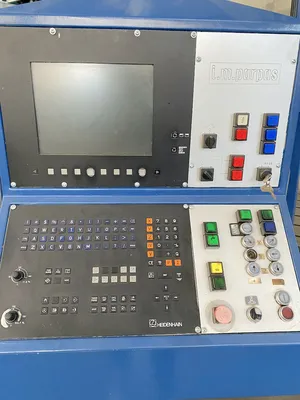

CNC: Heidenhain TNC425
[SPINDLE]
Spindle power: 22/33 Kw
Rotating speed: 4000 Rpm
Taper: ISO 50
[FEEDS]
Rapid X: 10 m/min
Rapid Y: 10 m/min
Rapid Z: 10 m/min
[TABLE 1]
Surface: 2400x820 mm
Capacity: 7.000 Kg
Accuracy (B axis): 360.000 °

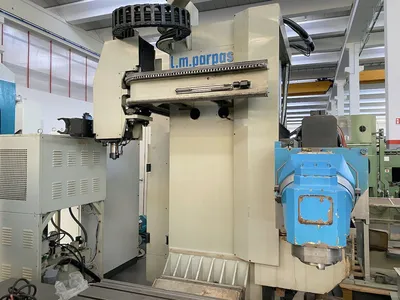

[HEAD 1]
Type: birotativa automatica
Spindle taper: ISO50
A axis: 2x180 °
C axis: 144x2,5 °
Max speed: 4000 Rpm
Max power: 33 Kw
Notes: lubrificata ad olio
[EXTRA]
Availability: pronta
Filtration unit: coolant tank with paper filter
Workpiece touch probe: si
Chip conveyor: 2
Floor space: 5800x3900x2740 mm
Machine total weight: 15000 Kg
Housing: protezioni frontali scorrevoli
Chiller: si
Maintenance & Use books: Yes
Available in stock: SI
Tooling included: volantino remotato
