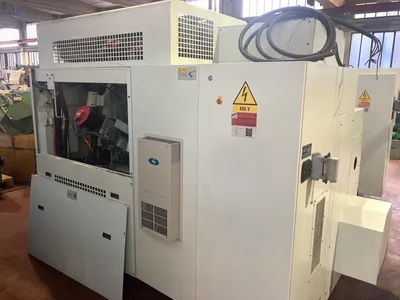

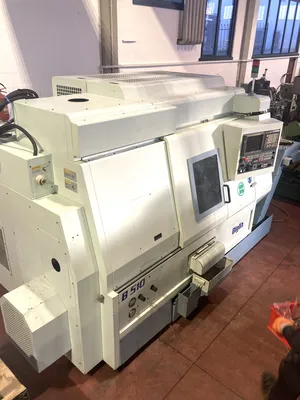

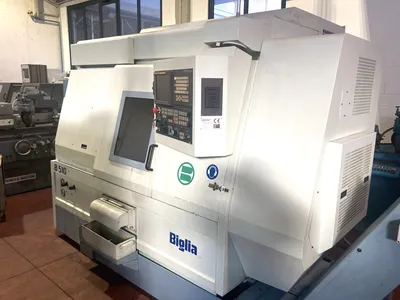

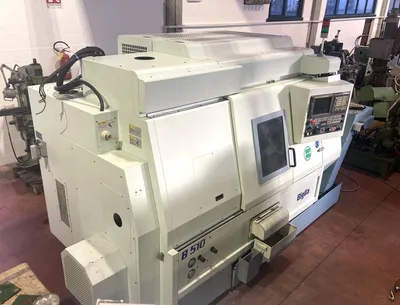

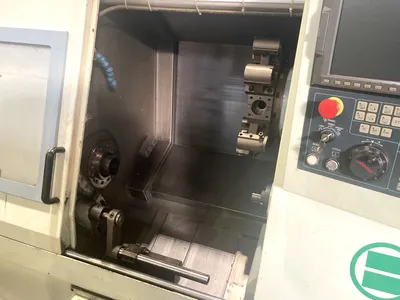

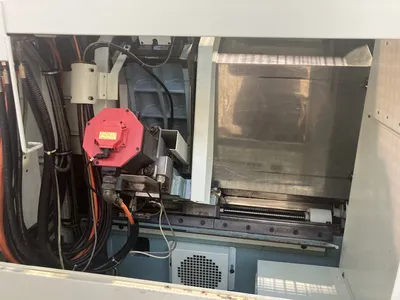

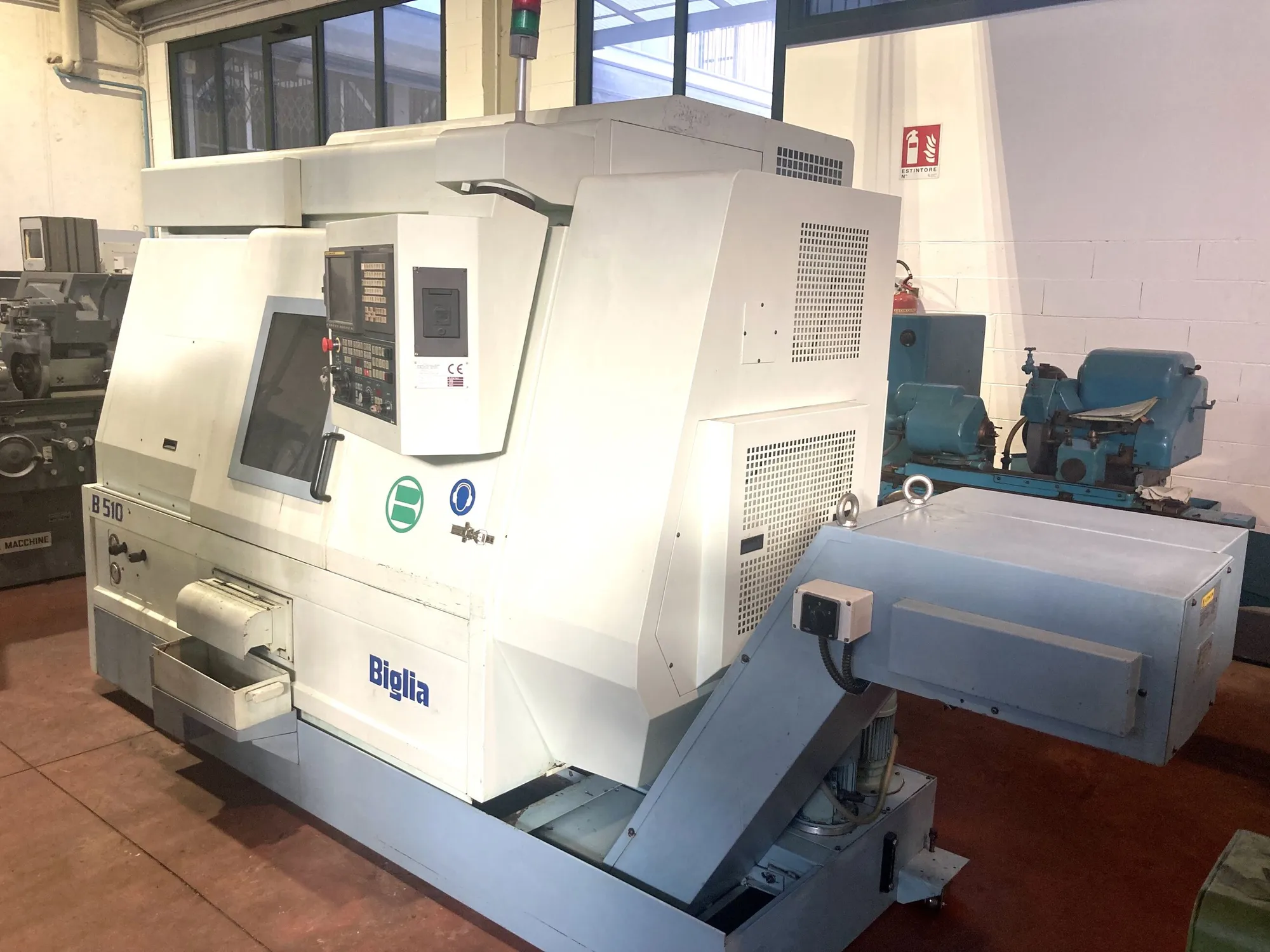

USED BIGLIA B 510 YB-8

Capacity: ø80/320x510 mm
[WORKING CAPACITY]
Max bar working diameter: 80
Max turning diameter: 320 mm
Max working lenght: 510 mm
Max diameter on bed: 520 mm
[CNC]

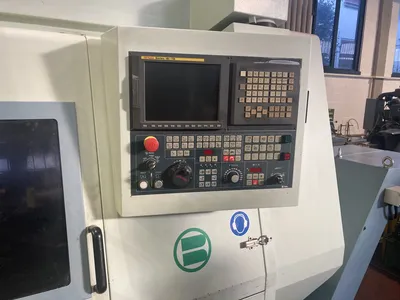

CNC: Fanuc 18iT
Notes: Biglia Easy Cicle, Poligonatura
[MAIN SPINDLE]
Max rotation speed: 3200 rpm
Spindle nose: ASA8”
Spindle hole: 92 mm
Internal bearing diameter: 130 mm
Max power: 22/26 Kw
Accuracy (C axis): 0,001 °
C axis speed: 100 Rpm
[TAILSTOCK]
Quill diameter: 85 mm
Quill stroke: 100 mm
Taper: CM4
Axis stroke B: 500 mm
Rapid feed B: 12 m/min
[TURRET 2]
Positions number: 12
Rotation time (1 pos): 0,15 sec.
Number of driven stations: 12
Driven tools speed: 3000 rpm
Driven tools power: 3,7 Kw
Axis stroke X2: 210 mm
Rapid feed X2: 12 m/min
Axis stroke Z2: 510 mm
Axis stroke Y2: 120mm (+/-60) mm
Rapid feed Y2: 6 m/min
[EXTRA]
Machine total weight: 4500 Kg
Floor space: 4000x1940x1765 mm
Chip conveyor: si

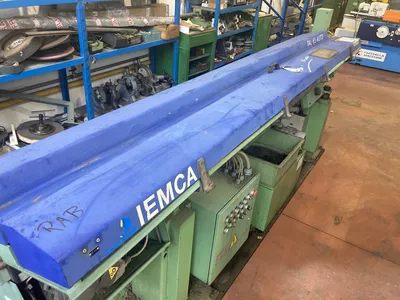

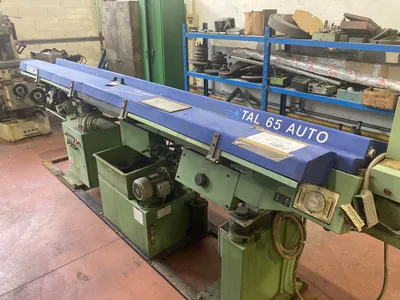

Bar feeder: IEMCA TAL AUTO65
