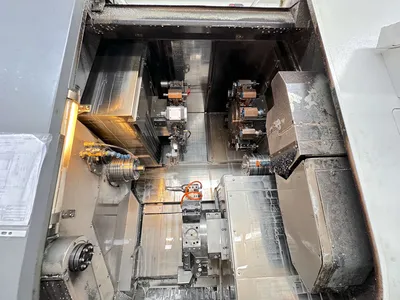

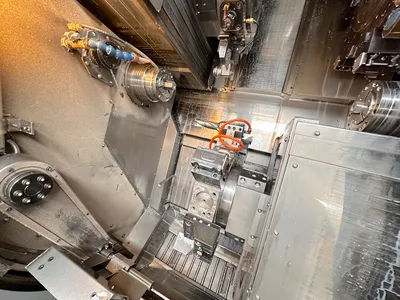

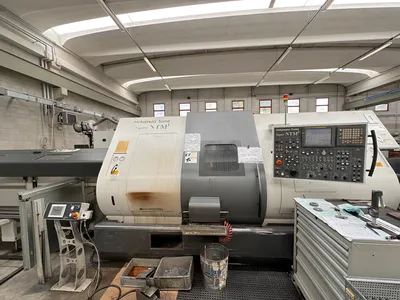

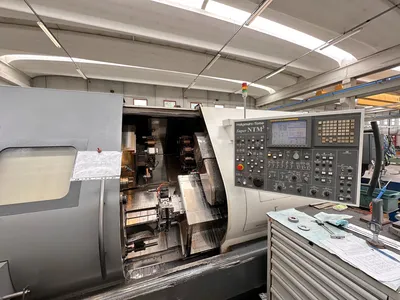

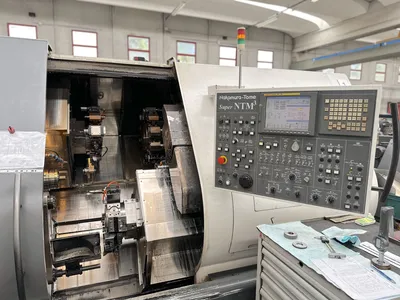

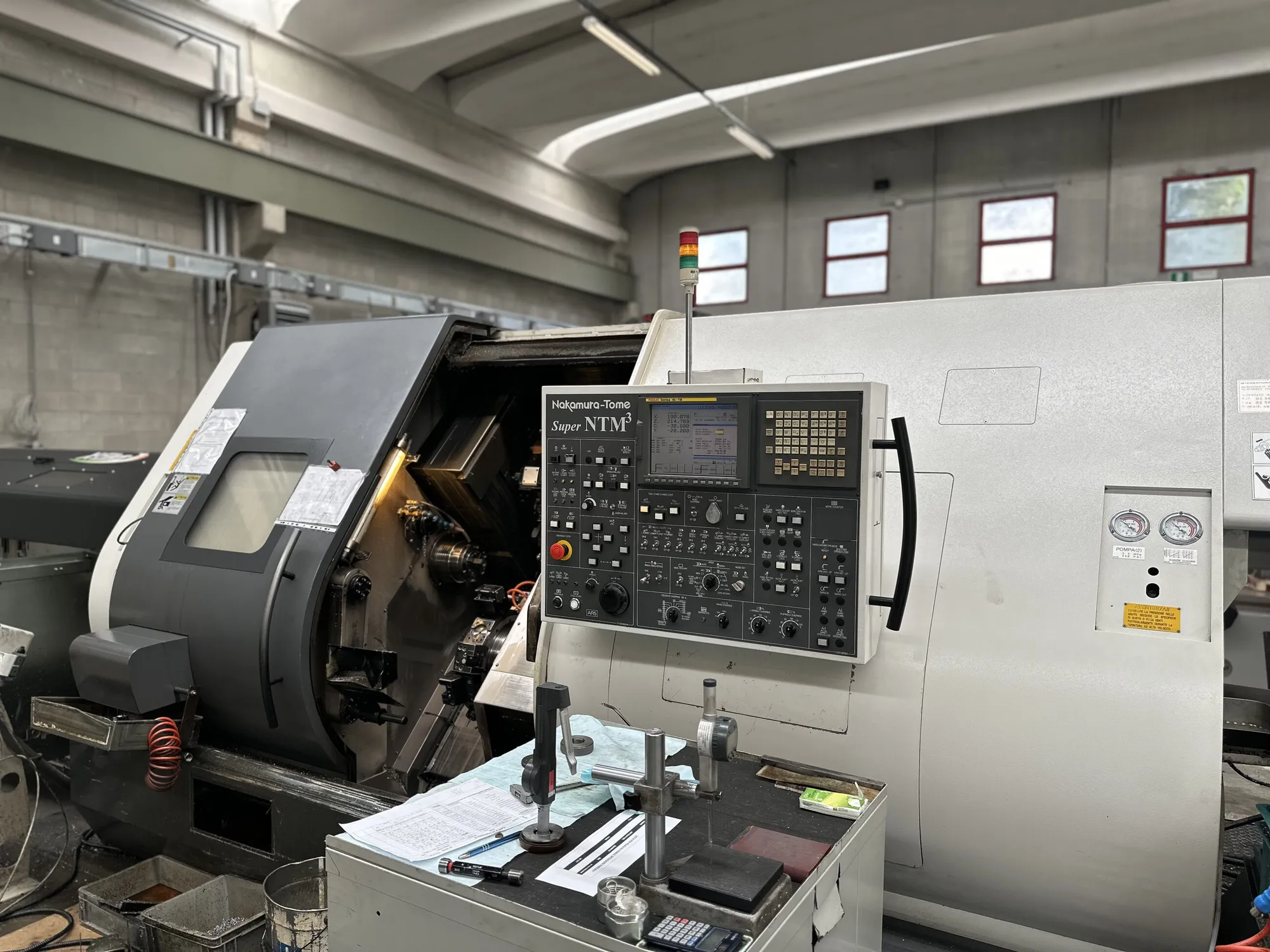

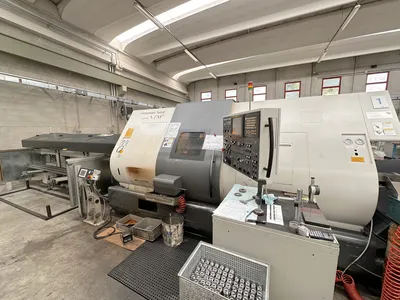

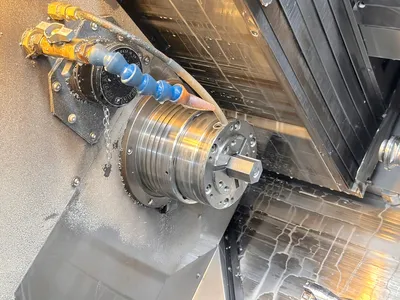

USED NAKAMURA SUPER NTM3

Max bar working diameter: 70
Max turning diameter: 190 mm7,48 in
Max working lenght: upper turrets 640mm, lower turrets 205 mmupper turrets 25,20mm, lower turrets 8,07 in

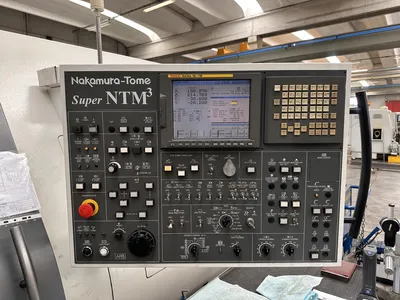

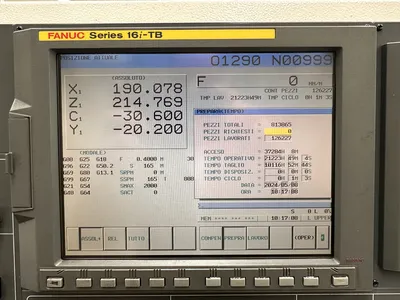

CNC: FANUC 16i-TB
Max rotation speed: 5000 rpm

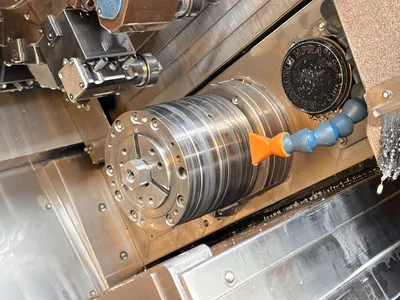

Spindle nose: ASA6
Max power: 15 Kw
Accuracy (C axis): 0,001 °
Max rotation speed: 5000 rpm
Spindle nose: ASA5
Max power: 11 Kw
Accuracy (C axis): 0,001 °
Spindle hole: 52 mm2,05 in

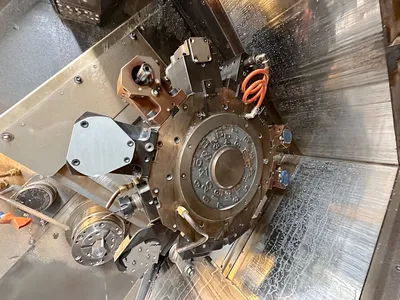

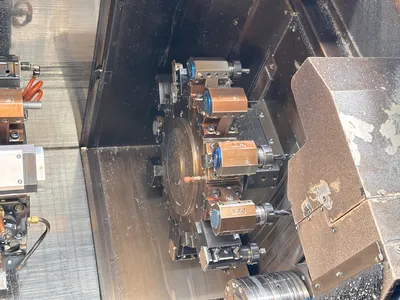

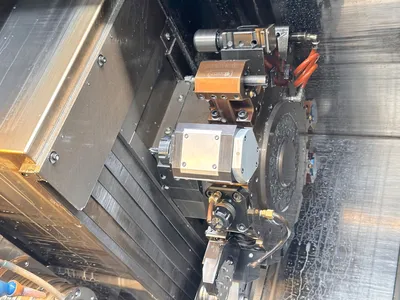

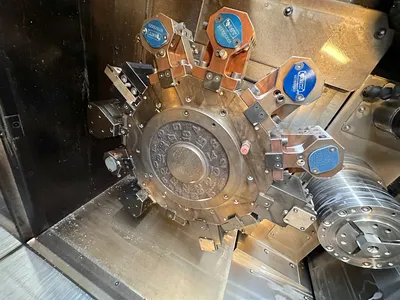

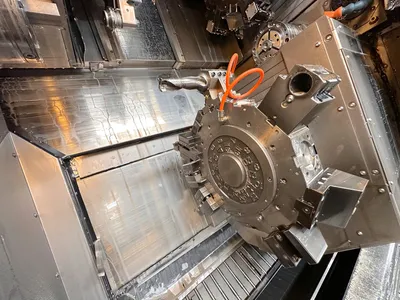

Positions number: 12
Number of driven stations: 12
Axis stroke X1: 167,5 mm6,59 in
Axis stroke Z1: 250 mm9,84 in
Axis stroke Y1: 102 (+61/-41) mm4,02 (+2,40/-1,61) in
Positions number: 12
Number of driven stations: 12
Axis stroke X2: 167,5 mm6,59 in
Axis stroke Z2: 250 mm9,84 in
Axis stroke Y2: 102 (+61/-41) mm4,02 (+2,40/-1,61) in
Positions number: 12
Number of driven stations: 12
Axis stroke X3: 167,5 mm6,59 in
Axis stroke Z3: 685 mm26,97 in
Machine total weight: 12000 Kg

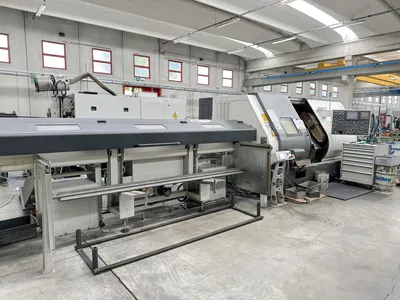

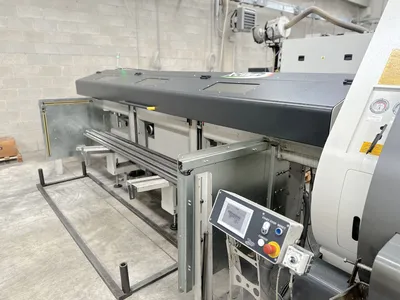

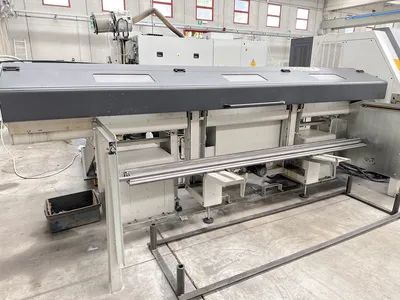

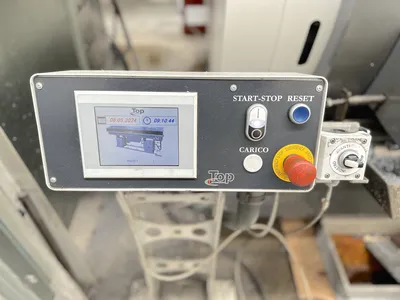

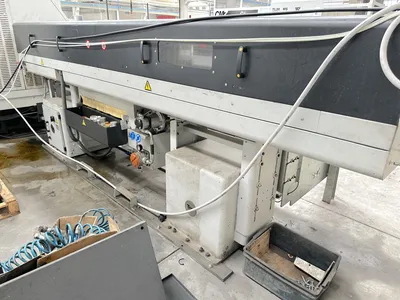

Bar feeder: TOP AUTOMAZIONI X- FILES 370SX anno 2019 (vendibile separatamente)
Floor space: 3930x2270x2100 (escluso caricatore) mm154,72x89,37x82,68 (escluso caricatore) in
