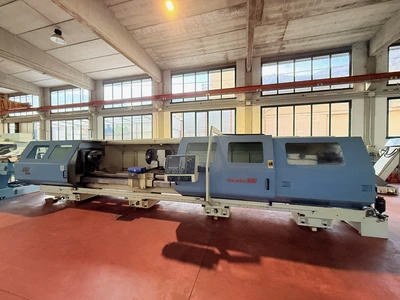

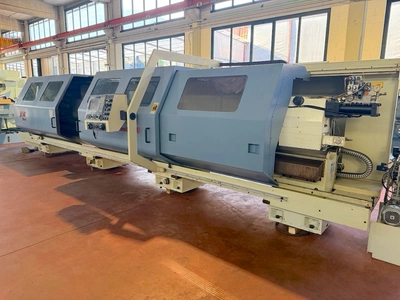

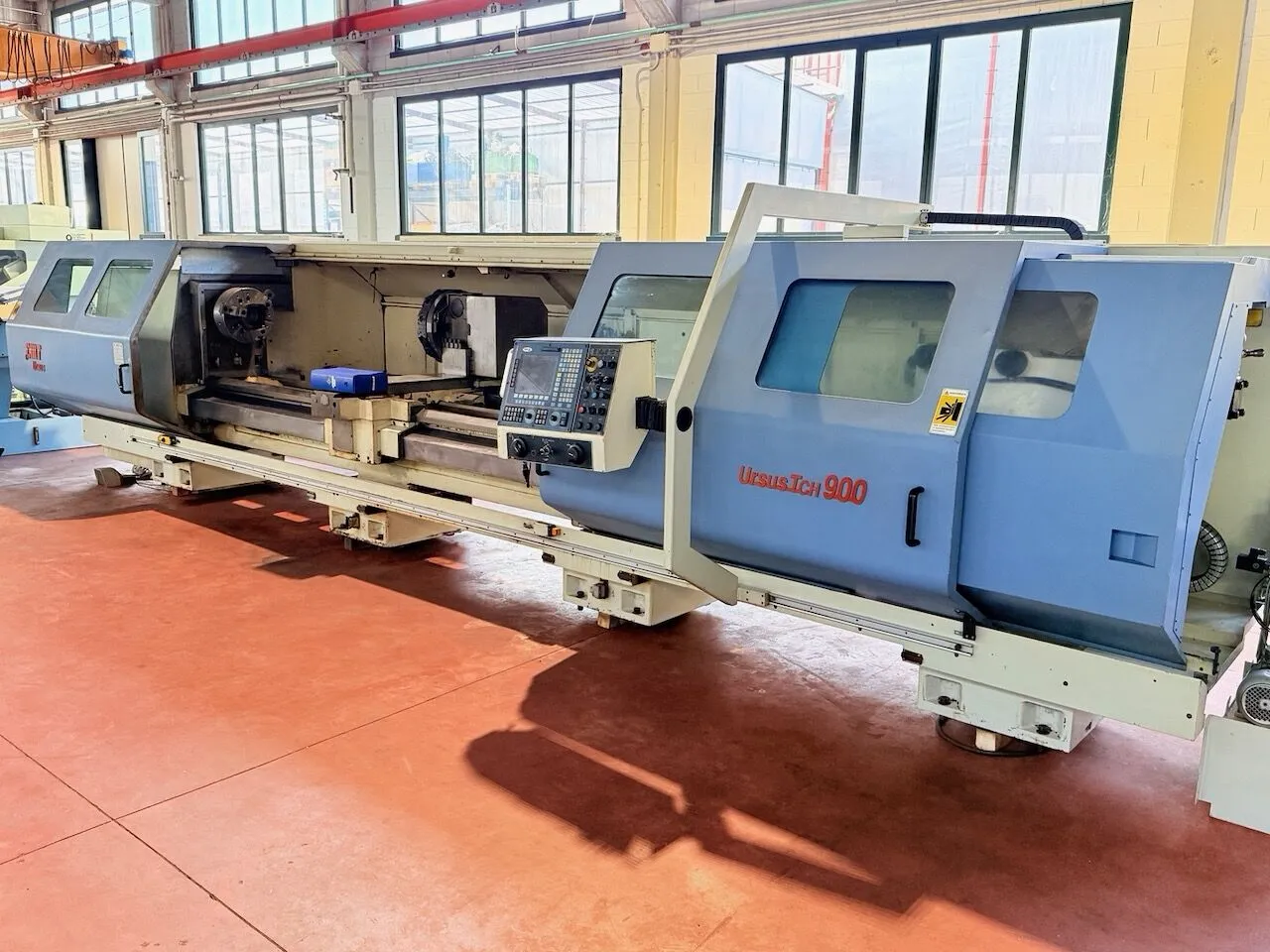

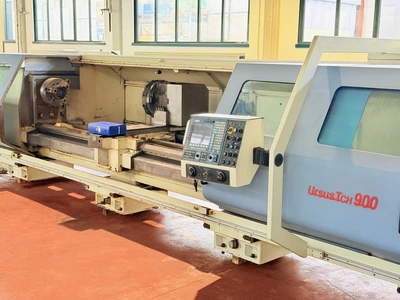

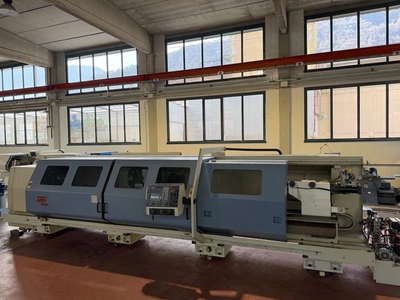

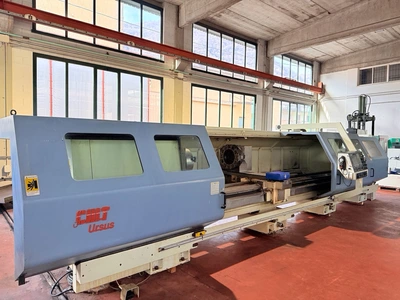

USED CMT URSUS TCH 900

Capacity: ø910/585x5000 mm
[FLAT BED]
Guide-ways number: 2
[WORKING CAPACITY]
Max bar working diameter: 137 mm
Max turning diameter: 910 mm
Max working lenght: 5000 mm
Max diameter on bed: 910 mm
Max diameter on cross-slide: 585 mm
[CNC]

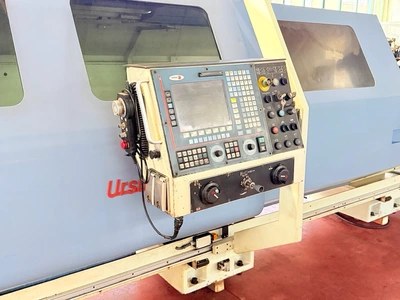

CNC: Fagor 8055i Plus
[MAIN SPINDLE]
Max rotation speed: 1200 rpm
Spindle nose: ASA11"
Spindle hole: 137 mm
Max power: 35 Kw
Accuracy (C axis): 0,01 °
Gearbox: 320-1200
Notes: ASSE C

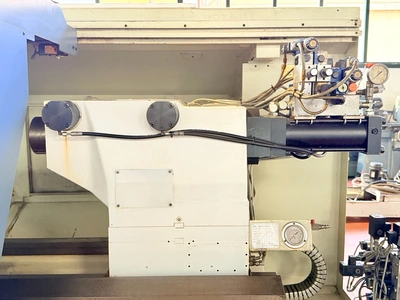

[TAILSTOCK]
Quill diameter: 115 mm
Quill stroke: 250 mm
Taper: CM6

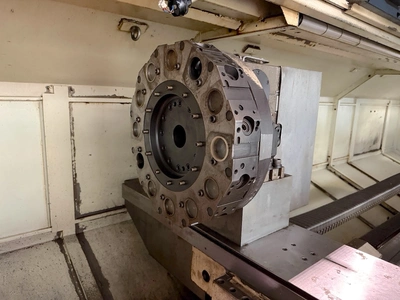

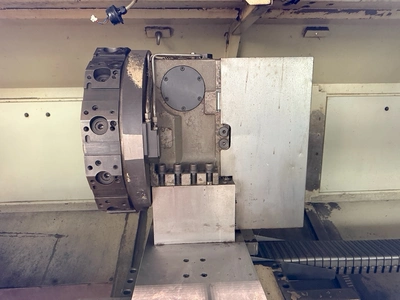

[TURRET 2]
Positions number: BARUFFALDI TBMA 250/12 VDI 50
Number of driven stations: 12
Axis stroke X2: 450 mm
Rapid feed X2: 5 m/min
Axis stroke Z2: 5000 mm
Rapid feed Z2: 5 m/min
No
[TURRET 3]
Number of driven stations: 12
No
[EXTRA]
Total power supply: 45 Kw
Machine total weight: 9500 Kg
Floor space: 7970x2250 mm
Autocentering chuck: ø400mm - 3 griffe
Chip conveyor: Si
